3M Products & Supplies

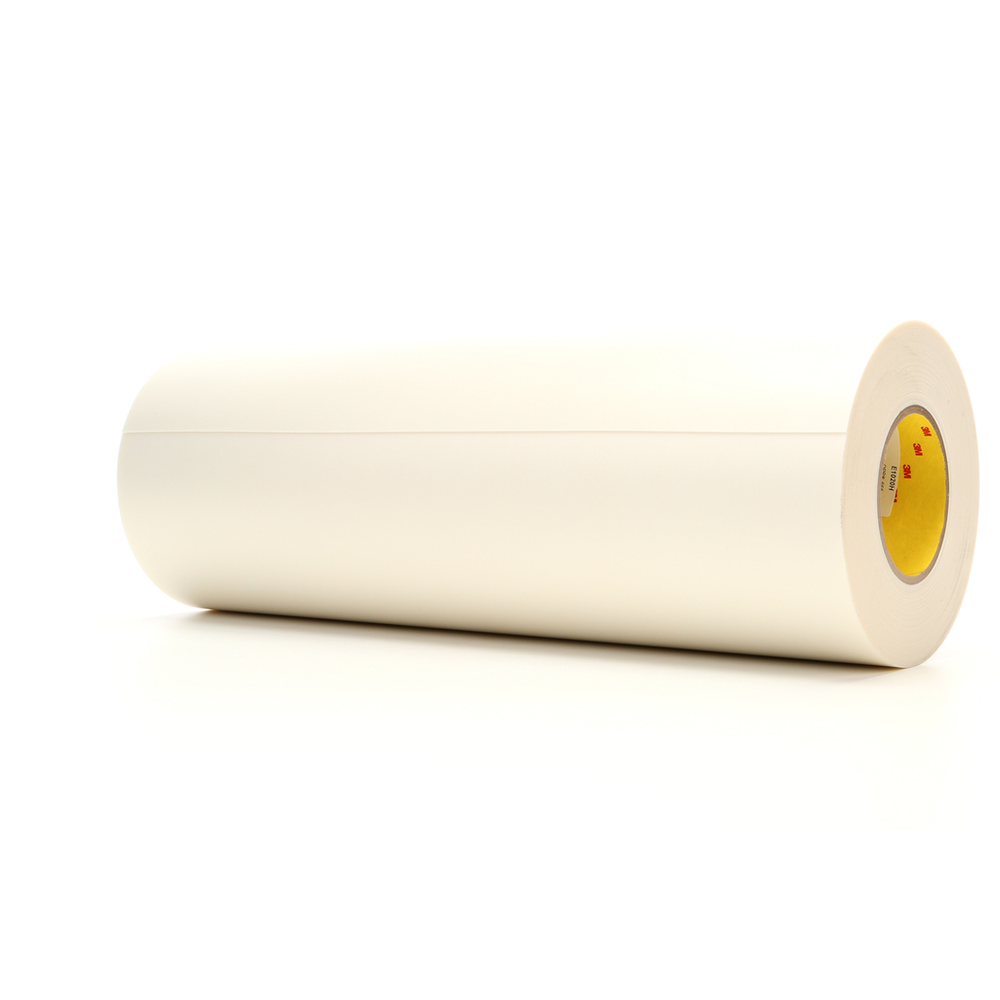

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1020H, White, 54 in x 36 yd, 20 mil, 1 Roll/Case - 7100314520

SKU: 7100314520
MPN: 7100314520
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00068060005922
3M ID: 70007559092
$2,490.54 each
Hurry up! Current stock:

Product Description

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1020H with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This white foam mounting tape provides high quality standard combination print.

Features

  • Has a standard medium density foam that is ideal for printing combinations of solids and process with halftone dots. The white foam color indicates the standard, medium density foam
  • Print plates mounted on E1020H will have no air bubbles under the plate due to the air release feature designed into the tape
  • Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
  • 0.020 inch (0.51 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to resist edge lifting on flexographic print plates
  • Grooves in the adhesive are created by a cross-hatch pattern from the release liner
  • Has higher plate side adhesion for challenging print conditions that use thick plates or small print sleeves
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Application Thickness (Imperial) UOMmil
Print Quality (Series)10 Series
IndustriesPrint
Product ColorWhite
Total Tape Thickness without Liner (Imperial)20.0
ApplicationFlexographic Plate Mounting
Total Tape Thickness without Liner (Imperial) UOMmil
Primary LinerPolycoated Polyester
Overall Width (Imperial) UOMin
Urethane SleevesYes
Print QualityCombination Printing - Standard
Application Thickness (Metric) UOMmm
Overall Length (Imperial) UOMyd
Application Thickness (Imperial)20
Overall Length (Metric) UOMm
Overall Length (Metric)32.918
Backing MaterialPolyethylene Foam
Overall Width (Metric)1371.6
Warranty Period2 Years from Date of Manufacture
Overall Length (Imperial)36.0
Application Thickness (Metric)0.5
Primary Liner Thickness (Metric) UOMmm
Primary Liner Thickness (Metric)0.11
Adhesive TypeDifferential Acrylate
Overall Width (Metric) UOMmm
Overall Width (Imperial)54.0
