3M Products & Supplies

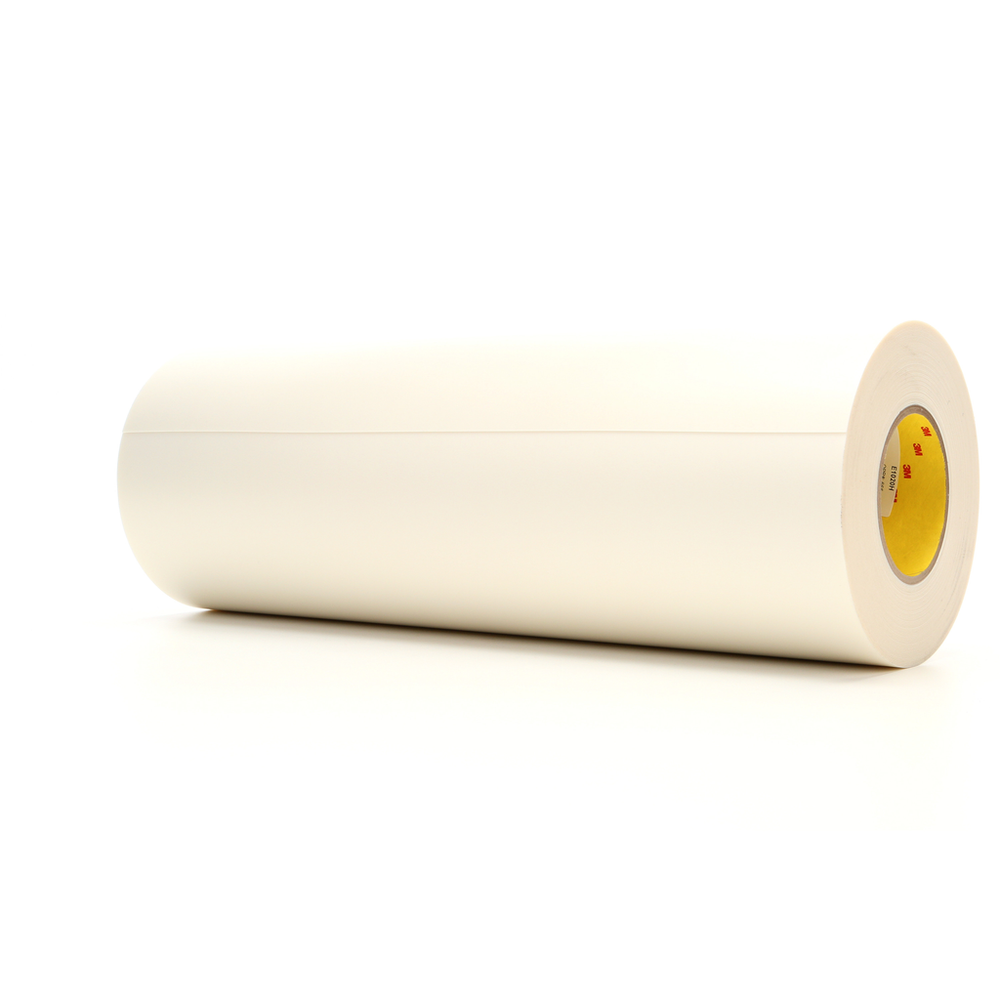

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1020H, White, 14 in x 36 yd, 20 mil, 1 Roll/Case - 7100314268

SKU: 7100314268
MPN: 7100314268
Lead Time: 18 working days.
UPC: 00068060005588
3M ID: 70007559068
$739.86 each
Hurry up! Current stock:

Product Description

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1020H with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This white foam mounting tape provides high quality standard combination print.

Features

  • Has a standard medium density foam that is ideal for printing combinations of solids and process with halftone dots. The white foam color indicates the standard, medium density foam
  • Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
  • 0.020 inch (0.51 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to resist edge lifting on flexographic print plates
  • Grooves in the adhesive are created by a cross-hatch pattern from the release liner
  • Has higher plate side adhesion for challenging print conditions that use thick plates or small print sleeves
  • Print plates mounted on E1020H will have no air bubbles under the plate due to the air release feature designed into the tape
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Application Thickness (Imperial) UOMmil
Primary Liner Thickness (Metric)0.11
Application Thickness (Imperial)20
Primary LinerPolycoated Polyester
Print Quality (Series)10 Series
Warranty Period2 Years from Date of Manufacture
Overall Width (Imperial) UOMin
Backing MaterialPolyethylene Foam
ApplicationFlexographic Plate Mounting
Overall Length (Metric) UOMm
Overall Length (Metric)32.918
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Imperial)36.0
Overall Width (Metric) UOMmm
Primary Liner Thickness (Metric) UOMmm
Product ColorWhite
Overall Width (Imperial)14.0
IndustriesPrint
Application Thickness (Metric)0.5
Application Thickness (Metric) UOMmm
Print QualityCombination Printing - Standard
Urethane SleevesYes
Overall Length (Imperial) UOMyd
Adhesive TypeDifferential Acrylate
Overall Width (Metric)355.6
Total Tape Thickness without Liner (Imperial)20.0
