3M Products & Supplies

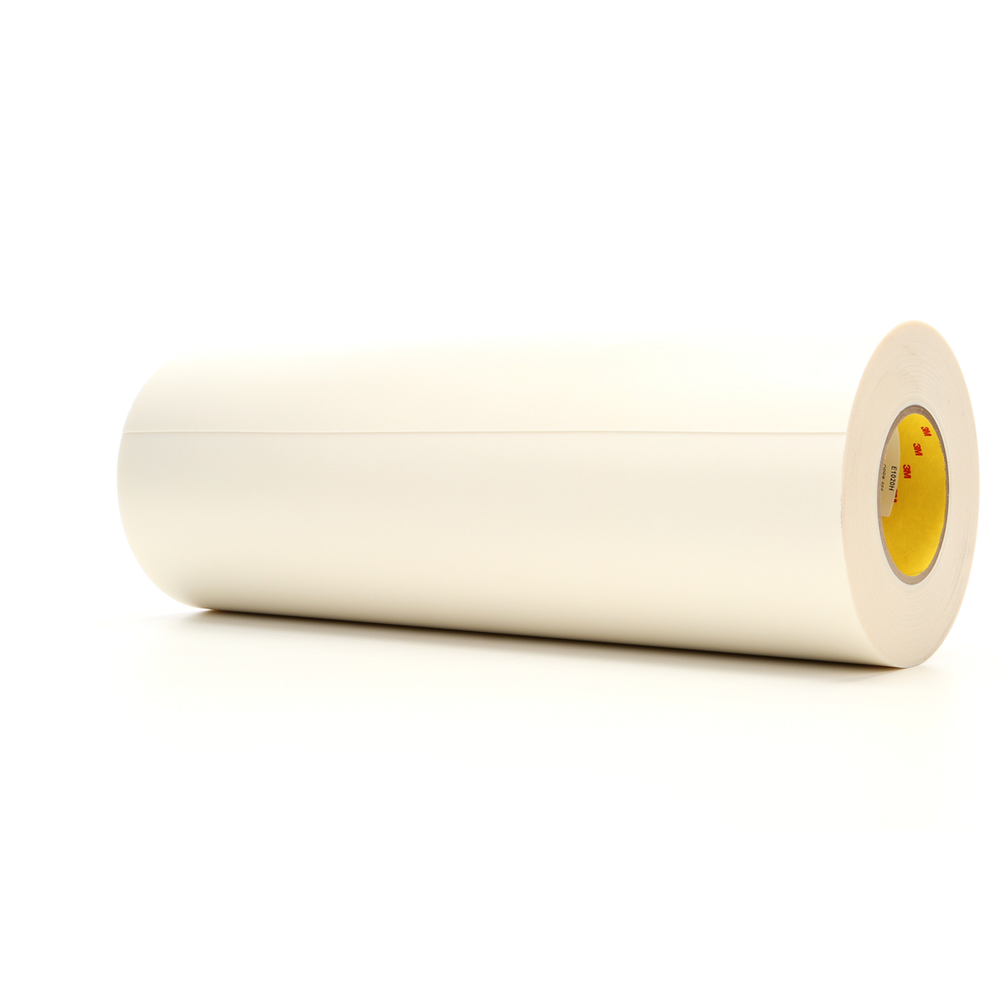

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1020H, White, 27 in x 36 yd, 20 mil, 1 Roll/Case - 7100314582

SKU: 7100314582
MPN: 7100314582
Lead Time: 18 working days.
UPC: 00068060006004
3M ID: 70007559142
$1,294.64 each
Hurry up! Current stock:

Product Description

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1020H with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This white foam mounting tape provides high quality standard combination print.

Features

  • Has a standard medium density foam that is ideal for printing combinations of solids and process with halftone dots. The white foam color indicates the standard, medium density foam
  • Print plates mounted on E1020H will have no air bubbles under the plate due to the air release feature designed into the tape
  • Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
  • 0.020 inch (0.51 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to resist edge lifting on flexographic print plates
  • Has higher plate side adhesion for challenging print conditions that use thick plates or small print sleeves
  • Grooves in the adhesive are created by a cross-hatch pattern from the release liner
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Application Thickness (Imperial) UOMmil
Overall Width (Imperial) UOMin
Primary Liner Thickness (Metric)0.11
Warranty Period2 Years from Date of Manufacture
ApplicationFlexographic Plate Mounting
Application Thickness (Metric)0.5
Primary Liner Thickness (Metric) UOMmm
IndustriesPrint
Overall Length (Metric) UOMm
Print QualityCombination Printing - Standard
Backing MaterialPolyethylene Foam
Adhesive TypeDifferential Acrylate
Primary LinerPolycoated Polyester
Overall Length (Metric)32.918
Overall Length (Imperial) UOMyd
Print Quality (Series)10 Series
Overall Width (Metric) UOMmm
Application Thickness (Imperial)20
Overall Length (Imperial)36.0
Urethane SleevesYes
Product ColorWhite
Overall Width (Metric)685.8
Overall Width (Imperial)27.0
Application Thickness (Metric) UOMmm
