3M Products & Supplies

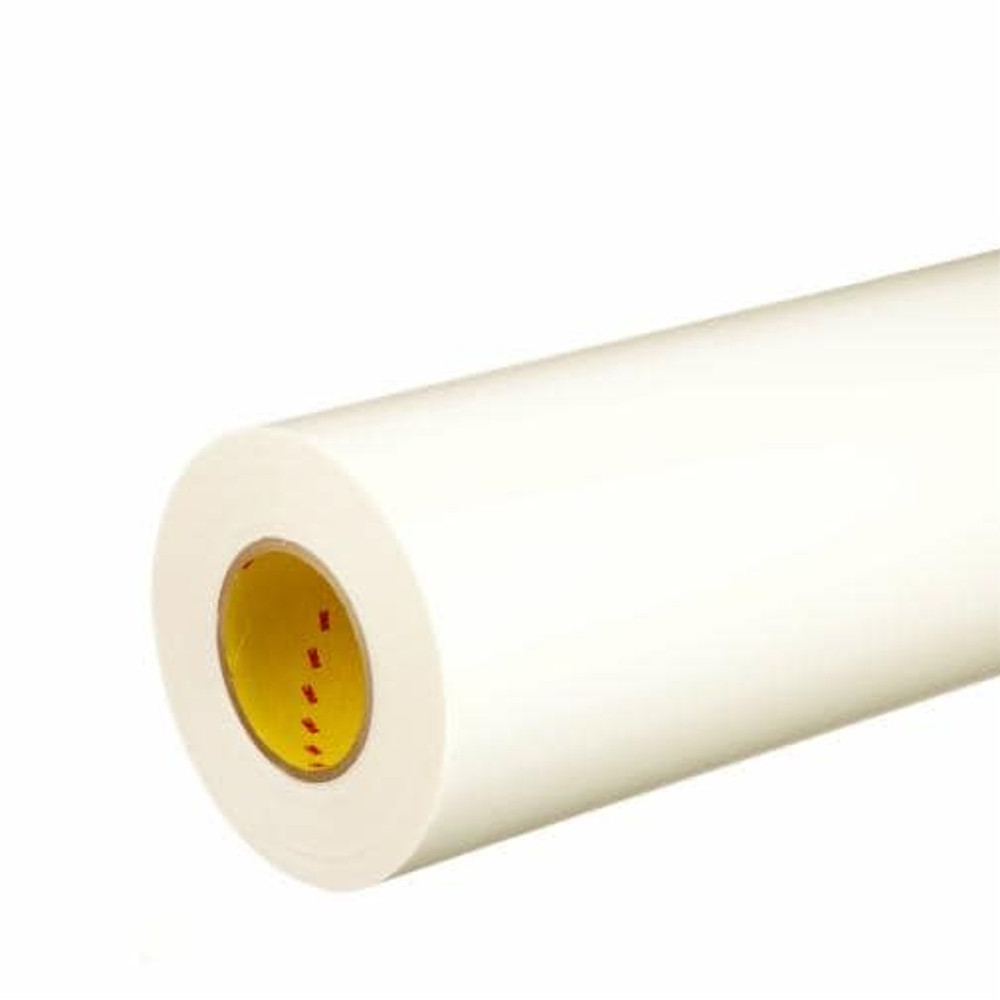

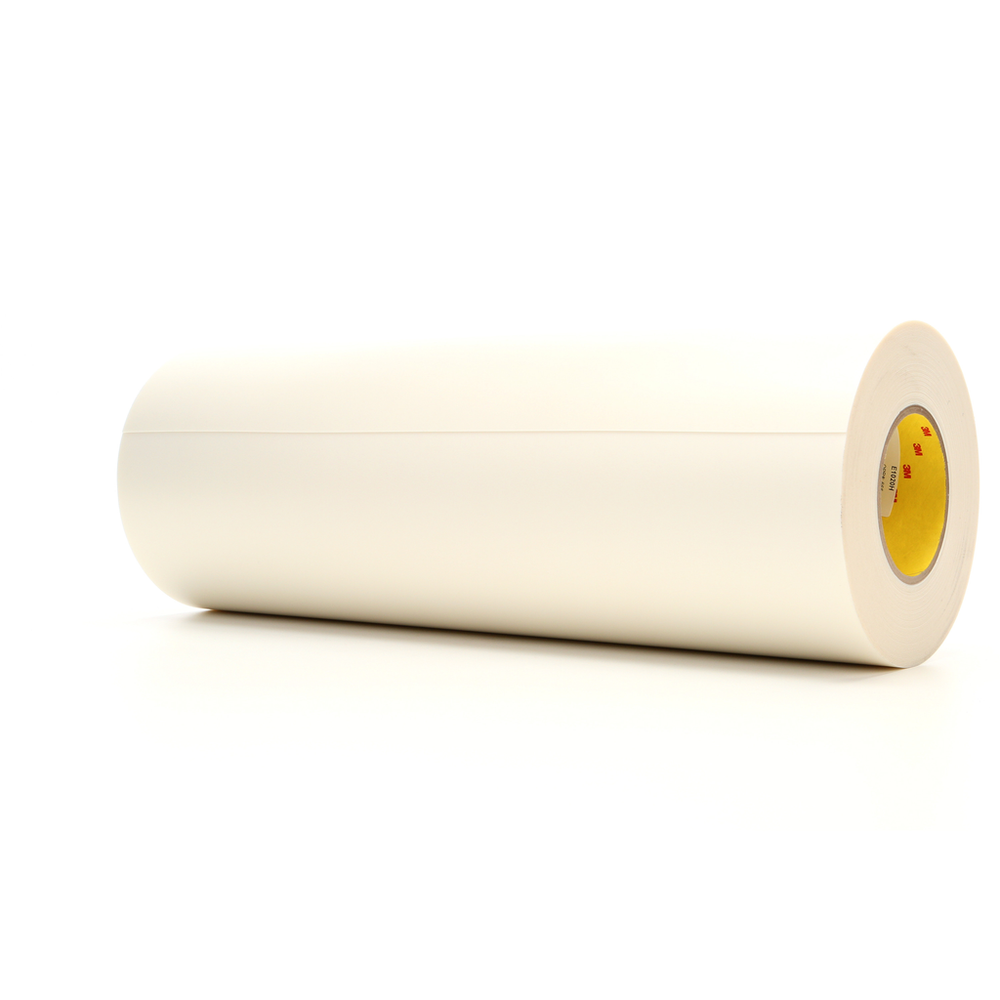

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1020H, White, 9 in x 36 yd, 20 mil, 1 Roll/Case - 7100325213

Sold As: 6-Pack
SKU: 7100325213
MPN: 7100325213
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00068060006783
3M ID: 70007165189
MPN: NTD9-LTP-2
$2,853.74 ($475.62 / Count)
Hurry up! Current stock:

Product Description

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1020H with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This white foam mounting tape provides high quality standard combination print.

Features

  • 0.020 inch (0.51 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to resist edge lifting on flexographic print plates
  • Grooves in the adhesive are created by a cross-hatch pattern from the release liner
  • Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
  • Has a standard medium density foam that is ideal for printing combinations of solids and process with halftone dots. The white foam color indicates the standard, medium density foam
  • Has higher plate side adhesion for challenging print conditions that use thick plates or small print sleeves
  • Print plates mounted on E1020H will have no air bubbles under the plate due to the air release feature designed into the tape
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Primary Liner Thickness (Metric) UOMmm
Product ColorWhite
Primary LinerPolycoated Polyester
Urethane SleevesYes
Overall Length (Metric) UOMm
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Imperial)9.0
Application Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)20.0
IndustriesPrint
Print Quality (Series)10 Series
Total Tape Thickness without Liner (Metric)0.508
Application Thickness (Imperial)20
Overall Length (Metric)32.918
Primary Liner Thickness (Metric)0.11
Overall Width (Imperial) UOMin
Overall Length (Imperial)36.0
Print QualityCombination Printing - Standard
Adhesive TypeDifferential Acrylate
Warranty Period2 Years from Date of Manufacture
Overall Width (Metric) UOMmm
ApplicationFlexographic Plate Mounting
Shelf Life730
Application Thickness (Metric)0.5
Backing MaterialPolyethylene Foam
Total Tape Thickness without Liner (Imperial) UOMmil
Application Thickness (Imperial) UOMmil
Overall Width (Metric)228.6
