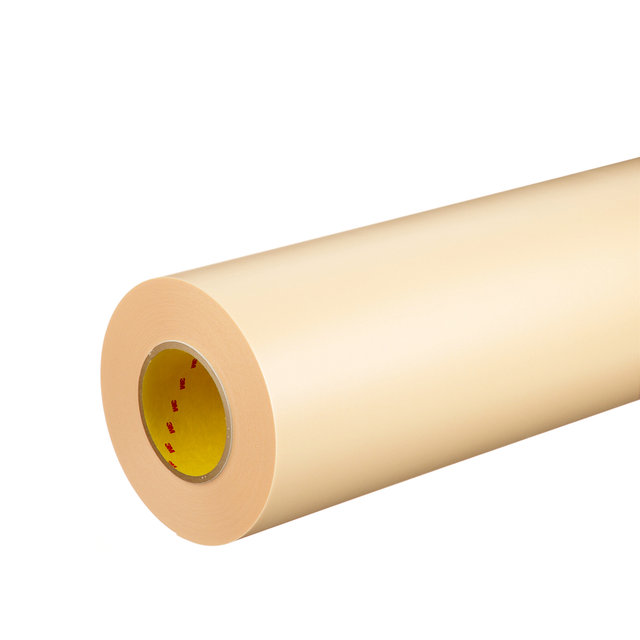

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1115H, Tan, 54 in x 25 yd, 15 mil, 1 roll per case - 7000122462

SKU: 7000122462
MPN: 7000122462
For an accurate lead time please contact us
UPC: 051125748117
3M ID: 70002019993
5 Digit UPC: 74811
$1,501.79 each
Hurry up! Current stock:

Product Description

Our 3M™ Cushion-Mount™ Plus Plate Mounting Tape E1115H with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This tan foam mounting tape provides high quality process print.

Features

  • Plate demounts from the double coated cushioned tape without adhesive residue
  • Tape also removes cleanly from the sleeve or steel print cylinder
  • Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
  • Print plates mounted on E1115H will have no air bubbles under the plate due to the air release feature designed into the tape
  • Flexographic printing, flexographic printers
  • Provides high quality process with halftone dots
  • 0.015 inch (0.38 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to resist edge lifting on flexographic print plates
  • Cushioned flexographic plate mounting sticky back foam tape
  • Tan foam color indicates the process printing density foam
  • Grooves in the adhesive are created by a cross-hatch pattern from the release liner
  • Has higher plate side adhesion for challenging print conditions that use thick plates or small print sleeves

Downloads

Specifications

ApplicationFlexographic Plate Mounting
Total Tape Thickness without Liner (Metric)0.43 mm
Warranty Period2 Years from Date of Manufacture
Urethane SleevesYes
Product ColorTan
Composite SleevesNo
Primary Liner Thickness (Metric)0.11 mm
Print QualityProcess Printing
Product KeyE1115H
Application Thickness (Metric)0.4 mm
Color FamilyBeige
Overall Length (Metric)22.86 m
Product NumberE1115H
Primary LinerPolycoated Polyester
Backing MaterialPolyethylene Foam
Product FormRoll
Overall Width (Metric)1371.6 mm
Application Thickness (Imperial)15 mil
Adhesive TypeDifferential Acrylate
Air ReleaseYes
Overall Thickness (Imperial)17 mil
Overall Width (Imperial)54 in
Print Quality (Series)11 Series
Total Tape Thickness without Liner (Imperial)17 mil
Primary Liner Thickness (Imperial)4.5 mil
Overall Length (Imperial)25 yd
