3M Products & Supplies

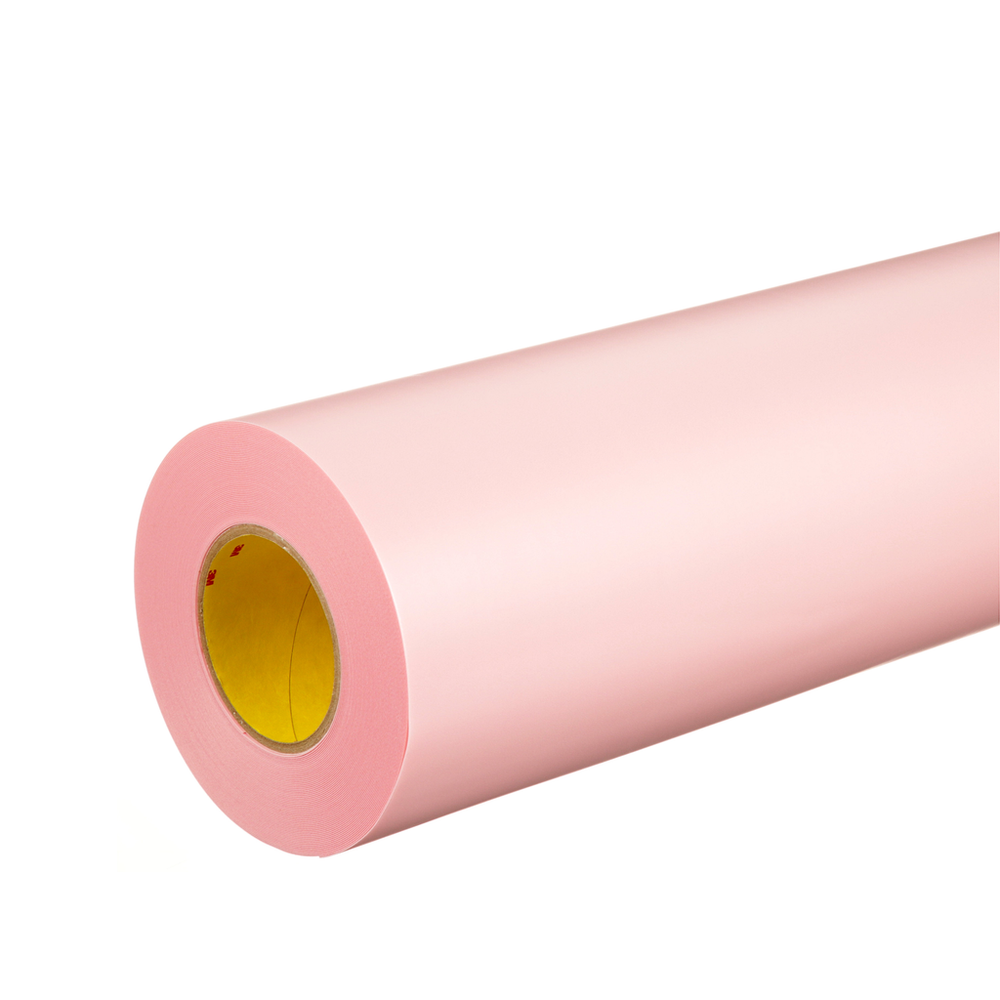

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1920, Pink, 24 in x 36 yd, 20 mil, 1 Roll/Case - 7100312143

SKU: 7100312143
MPN: 7100312143
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060005267
3M ID: 70007558862
$1,277.24 each
Hurry up! Current stock:

Product Description

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1920 with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This pink foam mounting tape provides high quality light medium combination print.

Features

  • Grooves in the adhesive are created by a cross-hatch pattern from the release liner
  • Pink foam color indicates the light, medium density foam
  • E1920 securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
  • Print plates mounted on E1920 will have no air bubbles under the plate due to the air release feature designed into the tape
  • 0.020 inch (0.51 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to remove with less force from flexographic print plates
  • Has a light medium density foam that is ideal for printing combinations of solids and process with halftone dots
Spec Sheet



Downloads

Specifications

Product ColorPink
Shelf Life730
Backing MaterialPolyethylene Foam
Overall Length (Metric)32.918
Overall Length (Metric) UOMm
IndustriesPrint
Shelf Life UOMMonth
Overall Width (Metric) UOMmm
Country of OriginUnited States
Overall Width (Imperial) UOMin
Overall Width (Metric)609.6
Primary LinerPolycoated Polyester
Adhesive TypeDifferential Acrylate
Overall Length (Imperial)36.0
Overall Width (Imperial)24.0
Overall Length (Imperial) UOMyd
Print QualityCombination Printing - Light Medium
Primary Liner Thickness (Metric)0.11
Urethane SleevesYes
Warranty Period2 Years from Date of Manufacture
Print Quality (Series)19 Series
Primary Liner Thickness (Metric) UOMmm
Clean RemovalYes
Primary Liner Thickness (Imperial)4.5
Primary Liner Thickness (Imperial) UOMmil
Application Thickness (Metric) UOMmm
Application Thickness (Metric)0.38
Application Thickness (Imperial) UOMmil
Application Thickness (Imperial)15
