3M Products & Supplies

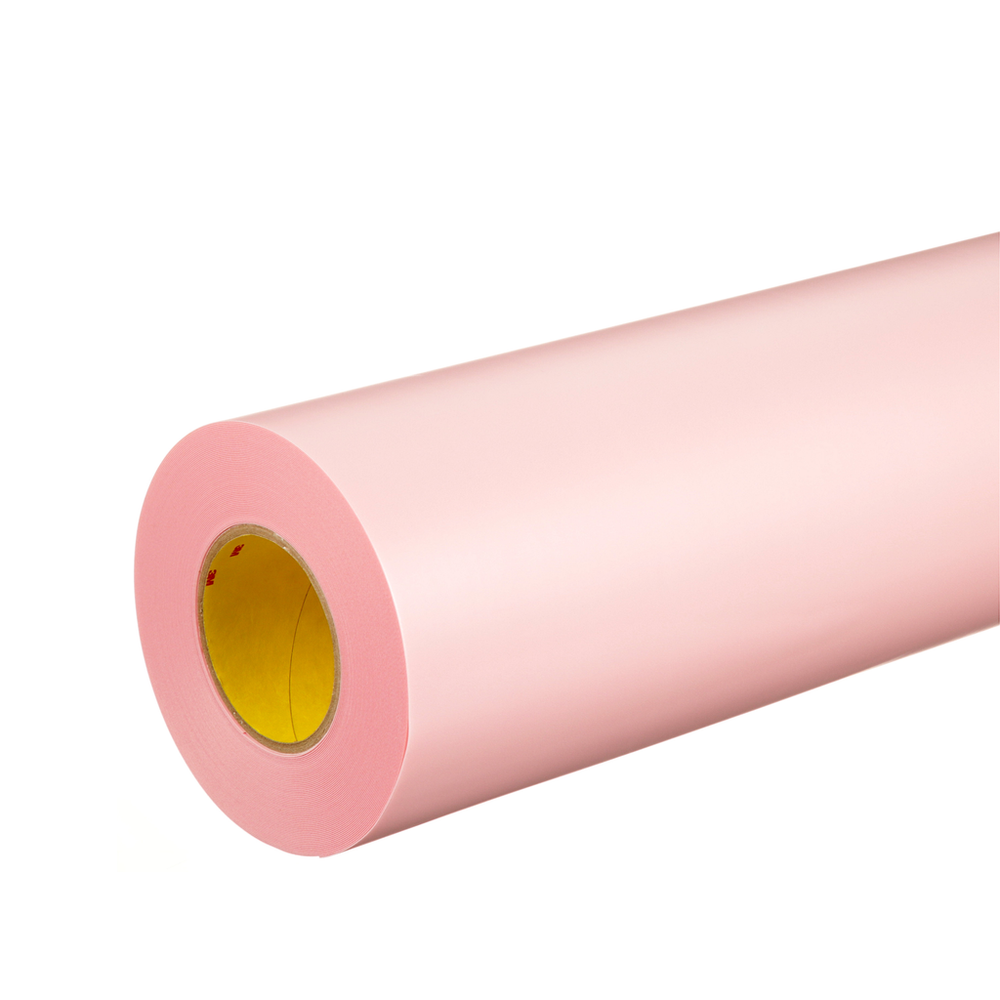

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1920, Pink, 36 in x 36 yd, 20 mil, 1 Roll/Case - 7100312126

SKU: 7100312126
MPN: 7100312126
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060005229
3M ID: 70007558888
$1,741.68 each
Hurry up! Current stock:

Product Description

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1920 with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This pink foam mounting tape provides high quality light medium combination print.

Features

  • Grooves in the adhesive are created by a cross-hatch pattern from the release liner
  • Has a light medium density foam that is ideal for printing combinations of solids and process with halftone dots
  • Pink foam color indicates the light, medium density foam
  • 0.020 inch (0.51 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to remove with less force from flexographic print plates
  • Print plates mounted on E1920 will have no air bubbles under the plate due to the air release feature designed into the tape
  • E1920 securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
Spec Sheet



Downloads

Specifications

Primary LinerPolycoated Polyester
Print QualityCombination Printing - Light Medium
Print Quality (Series)19 Series
Overall Width (Metric)914.4
Warranty Period2 Years from Date of Manufacture
Shelf Life UOMMonth
Product ColorPink
Overall Length (Metric) UOMm
Shelf Life730
Backing MaterialPolyethylene Foam
Adhesive TypeDifferential Acrylate
Overall Length (Metric)32.918
IndustriesPrint
Primary Liner Thickness (Metric)0.11
Overall Width (Imperial)36.0
Country of OriginUnited States
Clean RemovalYes
Urethane SleevesYes
Overall Width (Imperial) UOMin
Overall Width (Metric) UOMmm
Overall Length (Imperial) UOMyd
Overall Length (Imperial)36.0
Primary Liner Thickness (Metric) UOMmm
Primary Liner Thickness (Imperial) UOMmil
Application Thickness (Metric) UOMmm
Application Thickness (Imperial)15
Application Thickness (Metric)0.38
Application Thickness (Imperial) UOMmil
Primary Liner Thickness (Imperial)4.5
