3M Products & Supplies

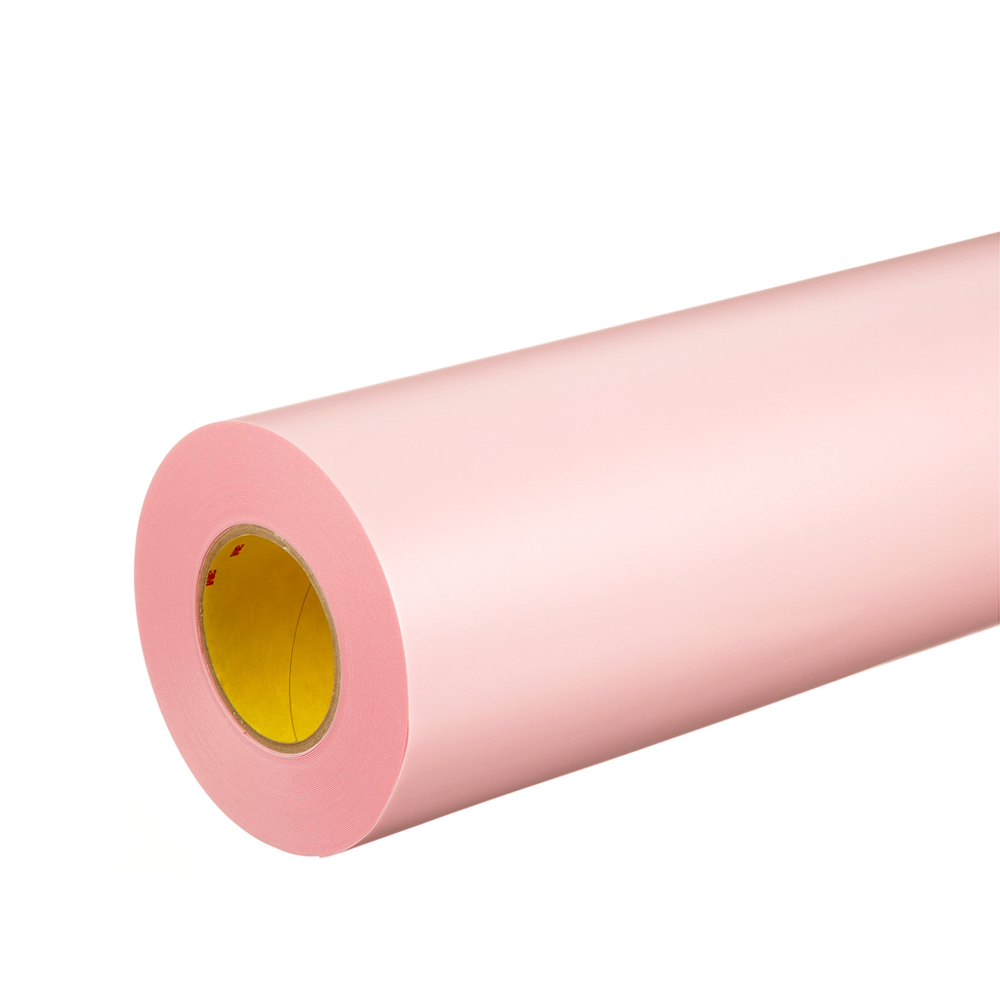

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1920, Pink, 30 in x 36 yd, 20 mil, 1 Roll/Case - 7100319372

SKU: 7100319372
MPN: 7100319372
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060006547
3M ID: 70007560207
$1,596.54 each
Hurry up! Current stock:

Product Description

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1920 with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This pink foam mounting tape provides high quality light medium combination print.

Features

  • Pink foam color indicates the light, medium density foam
  • E1920 securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
  • Grooves in the adhesive are created by a cross-hatch pattern from the release liner
  • Print plates mounted on E1920 will have no air bubbles under the plate due to the air release feature designed into the tape
  • Has a light medium density foam that is ideal for printing combinations of solids and process with halftone dots
  • 0.020 inch (0.51 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to remove with less force from flexographic print plates
Spec Sheet



Downloads

Specifications

Overall Thickness (Metric)0.508
Warranty Period2 Years from Date of Manufacture
Clean RemovalYes
Overall Width (Metric)76.2
IndustriesPrint
Overall Length (Imperial)36.0
Overall Width (Imperial)30.0
Overall Width (Imperial) UOMin
Overall Length (Metric)32.981
Overall Length (Imperial) UOMyd
Print QualityCombination Printing - Light Medium
Shelf Life730
Overall Width (Metric) UOMcm
Adhesive TypeDifferential Acrylate
Primary Liner Thickness (Metric) UOMmm
Product ColorPink
Overall Thickness (Imperial) UOMmil
Country of OriginUnited States
Overall Length (Metric) UOMm
Overall Thickness (Imperial)20.0
Primary LinerPolycoated Polyester
Primary Liner Thickness (Metric)0.11
Shelf Life UOMMonth
Print Quality (Series)19 Series
Backing MaterialPolyethylene Foam
Overall Thickness (Metric) UOMmm
Urethane SleevesYes
