3M Products & Supplies

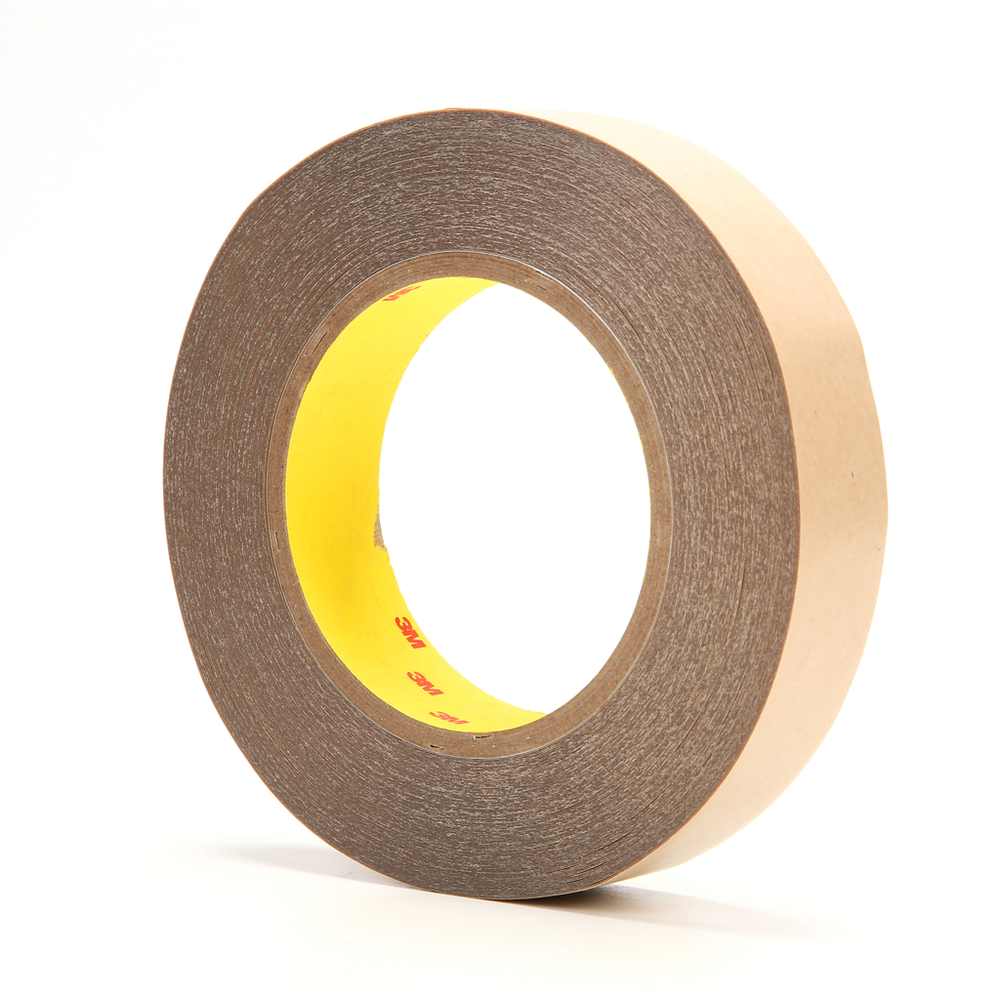

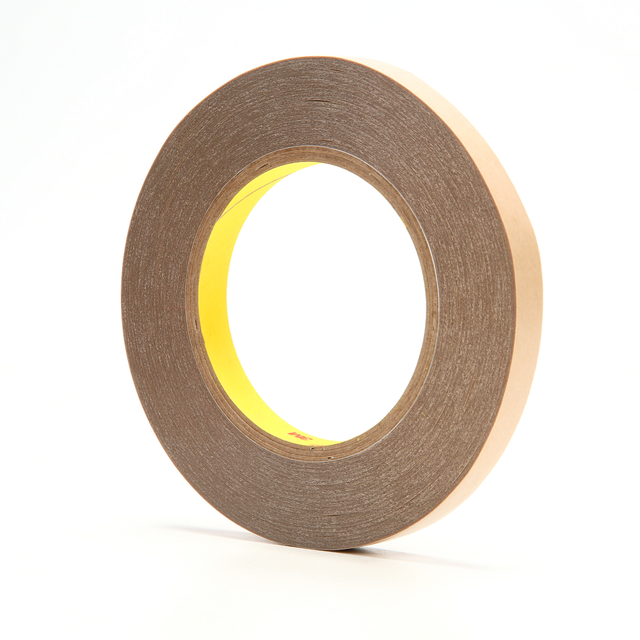

3M™ Double Coated Tape 9500PC, Clear, 1 in x 36 yd, 5.6 mil, 36 Roll/Case - 7000123414

Sold As: 36-Pack
SKU: 7000123414
MPN: 7000123414
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00021200677960
3M ID: 70006102993
5 Digit UPC: 67796
$1,144.89 ($31.80 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9500PC is a 5 mil (0.14 mm) 350 high performance acrylic adhesive double coat with a thin polyester carrier film on a 58#, 4.5 mil unprinted, polycoated kraft paper liner. The adhesive excels on low surface energy (LSE) substrates and at high temps.

Features

  • Clear, 5 mil (0.14 mm) double coated tape with high performance acrylic
  • Adheres to powder coated surfaces, most plastics and difficult surfaces
  • High-holding strength and short-term heat resistance up to 350°F (177°C)
  • 58# unprinted polycoated kraft liner reduces edge burr during hard tool die cutting
  • 1.0 mil, clear PET carrier film for dimensional stability and ease of die cutting
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Minimum Operating Temperature (Celsius) UOMDegree
Primary Liner Thickness (Imperial)4.5
Back Side Adhesive Thickness (Imperial) UOMmil
Overall Width (Metric) UOMmm
Backing (Carrier) Thickness (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)350.0
Backing (Carrier) Thickness (Imperial)1.0
Primary Liner Thickness (Metric)0.11
Maximum Operating Temperature (Celsius)177.0
Primary Liner ColorTan
Back Side Adhesive Thickness (Metric)0.058
Primary Liner Thickness (Imperial) UOMmil
Minimum Operating Temperature (Celsius)-40.0
Indoor/OutdoorIndoor/Outdoor
Face Side Adhesive Thickness (Metric) UOMmm
Overall Length (Metric)32.9
Minimum Operating Temperature (Fahrenheit)-40.0
Primary Liner Thickness (Metric) UOMmm
Back Side Adhesive Thickness (Imperial)2.3
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric) UOMm
Backing (Carrier) Thickness (Metric)0.025
Total Tape Thickness without Liner (Imperial)5.6
IndustriesAutomotive, Converter Solutions, Electronics, General Industrial, Medical, Metalworking, Military and Government, Oil & Gas, Signage, Specialty Vehicles, Transportation
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Metric)0.14
Overall Width (Imperial)1.0
Face Side Adhesive Thickness (Imperial)2.3
Maximum Operating Temperature (Fahrenheit) UOMDegree
Product ColorTransparent
Back Side Adhesive Thickness (Metric) UOMmm
Adhesive TypeHigh Performance Acrylic Adhesive 350
Overall Width (Metric)25.0
Overall Width (Imperial) UOMin
Face Side Adhesive Thickness (Imperial) UOMmil
Primary Liner62# Polycoated Kraft Paper
Face Side Adhesive Thickness (Metric)0.058
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) Thickness (Imperial) UOMmil
Units per Case36.0
Overall Length (Imperial)36.0
Backing (Carrier) MaterialPolyester
