3M Products & Supplies

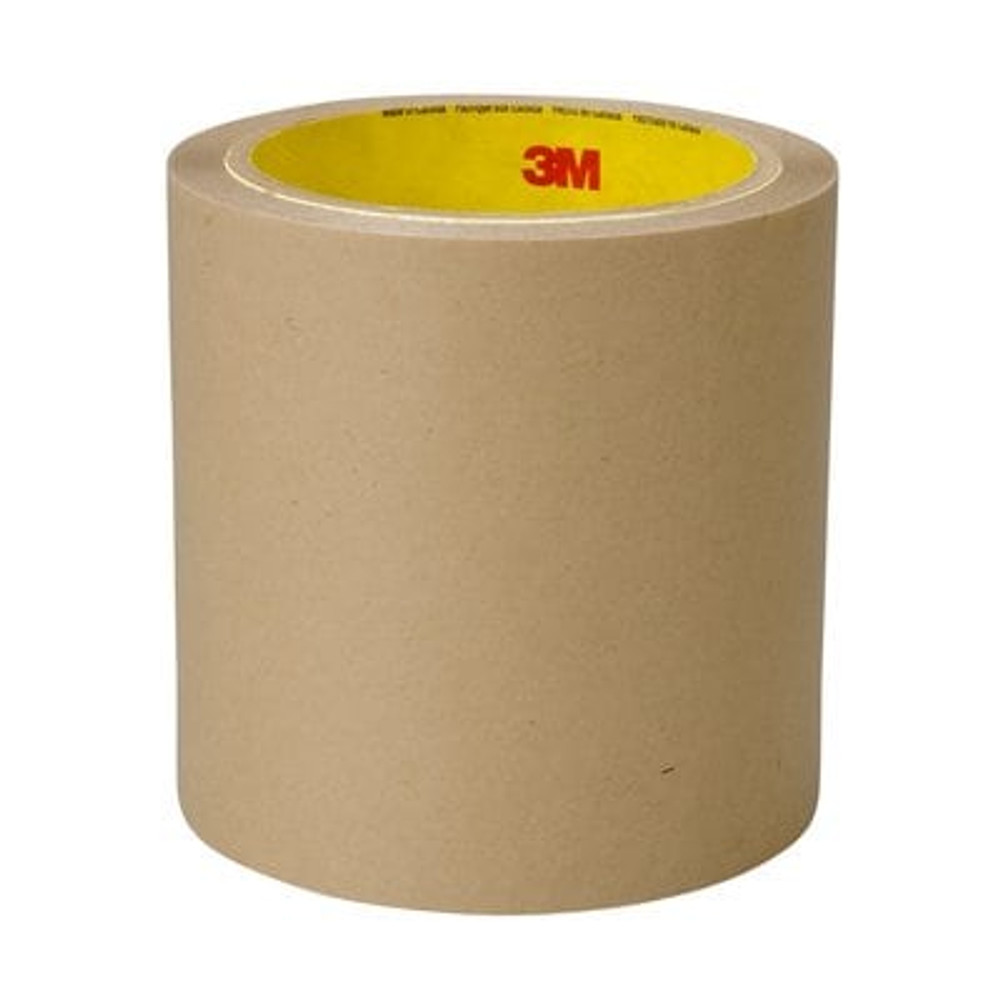

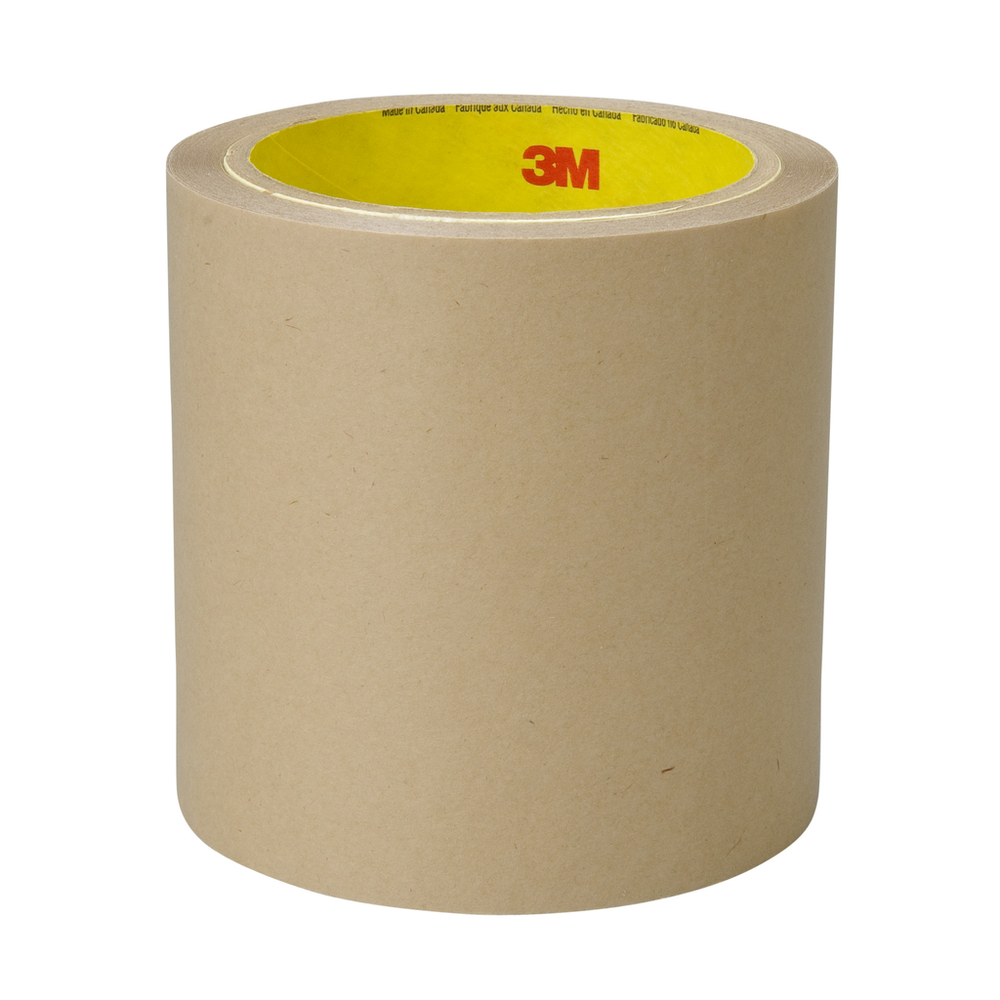

3M™ Double Coated Tape 9500PC, Clear, 18 in x 36 yd, 5.6 mil, 1 Roll/Case - 7000123812

SKU: 7000123812
MPN: 7000123812
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 50021200396200
3M ID: 70006249018
5 Digit UPC: 39620
$572.44 each
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9500PC is a 5 mil (0.14 mm) 350 high performance acrylic adhesive double coat with a thin polyester carrier film on a 58#, 4.5 mil unprinted, polycoated kraft paper liner. The adhesive excels on low surface energy (LSE) substrates and at high temps.

Features

  • High-holding strength and short-term heat resistance up to 350°F (177°C)
  • 1.0 mil, clear PET carrier film for dimensional stability and ease of die cutting
  • 58# unprinted polycoated kraft liner reduces edge burr during hard tool die cutting
  • Adheres to powder coated surfaces, most plastics and difficult surfaces
  • Clear, 5 mil (0.14 mm) double coated tape with high performance acrylic
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Primary Liner Thickness (Metric)0.11
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Imperial) UOMmil
Face Side Adhesive Thickness (Imperial)2.3
Indoor/OutdoorIndoor/Outdoor
Overall Length (Imperial)36.0
Back Side Adhesive Thickness (Imperial)2.3
Minimum Operating Temperature (Fahrenheit)-40.0
Overall Width (Metric)457.2
Units per Case1.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Imperial)1.0
Overall Length (Imperial) UOMyd
Primary Liner Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Imperial) UOMmil
Primary Liner Thickness (Metric) UOMmm
Minimum Operating Temperature (Celsius)-40.0
Product ColorTransparent
Primary Liner ColorTan
Total Tape Thickness without Liner (Metric)0.14
Overall Length (Metric)32.91
Primary Liner62# Polycoated Kraft Paper
Face Side Adhesive Thickness (Metric) UOMmm
Maximum Operating Temperature (Celsius)177.0
Overall Width (Metric) UOMmm
Face Side Adhesive Thickness (Metric)0.058
Maximum Operating Temperature (Celsius) UOMDegree
Face Side Adhesive Thickness (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Metric) UOMmm
Minimum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Imperial)5.6
Back Side Adhesive Thickness (Metric) UOMmm
Overall Width (Imperial) UOMin
IndustriesAppliance, Automotive, Converter Solutions, Electronics, General Industrial, Medical, Metalworking, Military and Government, Oil & Gas, Signage, Specialty Vehicles, Transportation
Overall Width (Imperial)18.0
Backing (Carrier) MaterialPolyester
Back Side Adhesive Thickness (Metric)0.058
Backing (Carrier) Thickness (Metric)0.025
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)350.0
Primary Liner Thickness (Imperial)4.5
Back Side Adhesive Thickness (Imperial) UOMmil
