3M Products & Supplies

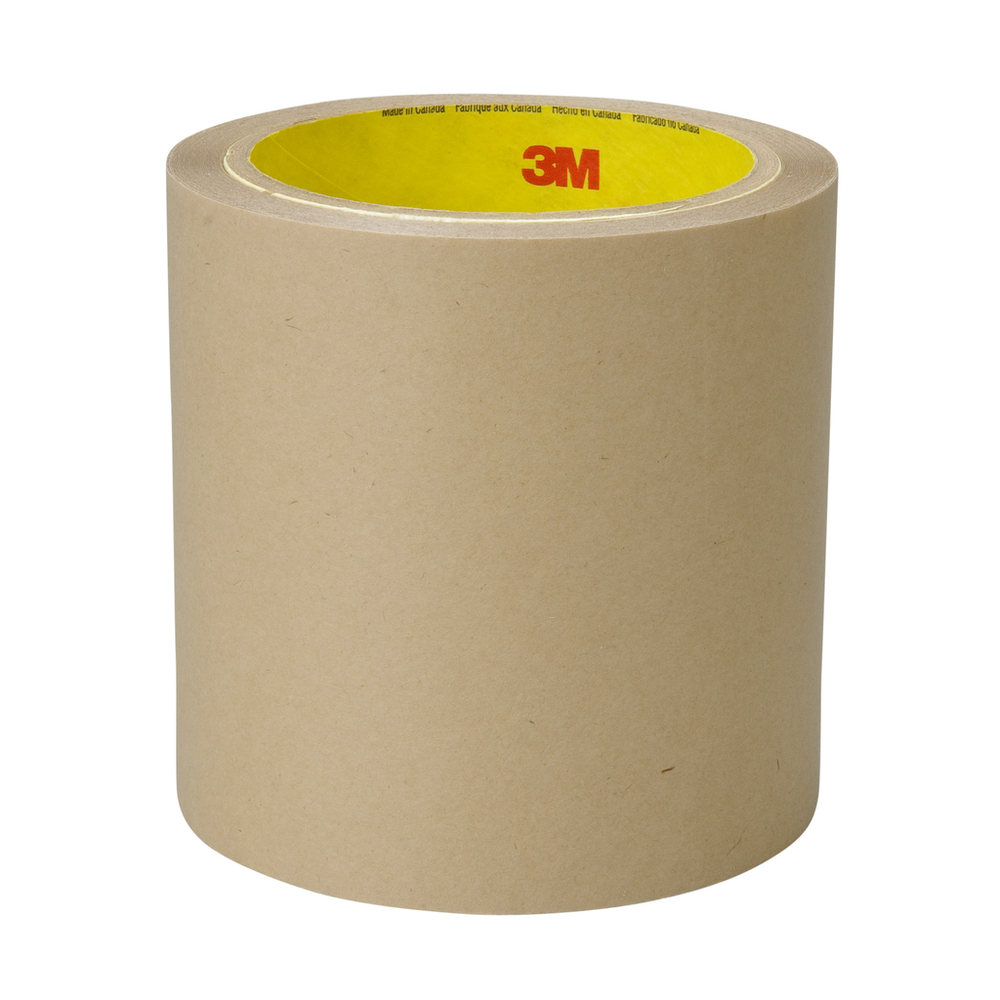

3M™ Double Coated Tape 9500PC, Clear, 4 in x 36 yd, 5.6 mil, 8 Roll/Case - 7010300201

Sold As: 8-Pack
SKU: 7010300201
MPN: 7010300201
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200408007
3M ID: 70006255809
5 Digit UPC: 40800
$1,017.68 ($127.21 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9500PC is a 5 mil (0.14 mm) 350 high performance acrylic adhesive double coat with a thin polyester carrier film on a 58#, 4.5 mil unprinted, polycoated kraft paper liner. The adhesive excels on low surface energy (LSE) substrates and at high temps.

Features

  • Clear, 5 mil (0.14 mm) double coated tape with high performance acrylic
  • High-holding strength and short-term heat resistance up to 350°F (177°C)
  • Adheres to powder coated surfaces, most plastics and difficult surfaces
  • 1.0 mil, clear PET carrier film for dimensional stability and ease of die cutting
  • 58# unprinted polycoated kraft liner reduces edge burr during hard tool die cutting
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Product ColorTransparent
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Metric)32.91
Backing (Carrier) Thickness (Metric) UOMmm
Primary Liner ColorTan
Overall Length (Metric) UOMm
Backing (Carrier) Thickness (Imperial) UOMmil
Indoor/OutdoorIndoor/Outdoor
IndustriesAppliance, Automotive, Converter Solutions, Electronics, General Industrial, Medical, Metalworking, Military and Government, Oil & Gas, Signage, Specialty Vehicles, Transportation
Back Side Adhesive Thickness (Imperial)2.3
Back Side Adhesive Thickness (Metric)0.058
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric)101.6
Minimum Operating Temperature (Celsius)-40.0
Total Tape Thickness without Liner (Metric)0.14
Maximum Operating Temperature (Fahrenheit)350.0
Maximum Operating Temperature (Celsius) UOMDegree
Units per Case8.0
Primary Liner Thickness (Metric)0.11
Back Side Adhesive Thickness (Imperial) UOMmil
Overall Width (Imperial) UOMin
Face Side Adhesive Thickness (Imperial) UOMmil
Overall Width (Metric) UOMmm
Backing (Carrier) Thickness (Metric)0.025
Face Side Adhesive Thickness (Metric) UOMmm
Overall Length (Imperial) UOMyd
Face Side Adhesive Thickness (Imperial)2.3
Primary Liner Thickness (Imperial) UOMmil
Primary Liner Thickness (Imperial)4.5
Backing (Carrier) MaterialPolyester
Primary Liner62# Polycoated Kraft Paper
Back Side Adhesive Thickness (Metric) UOMmm
Maximum Operating Temperature (Celsius)177.0
Overall Length (Imperial)36.0
Face Side Adhesive Thickness (Metric)0.058
Backing (Carrier) Thickness (Imperial)1.0
Minimum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit)-40.0
Overall Width (Imperial)4.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Primary Liner Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)5.6
