3M Products & Supplies

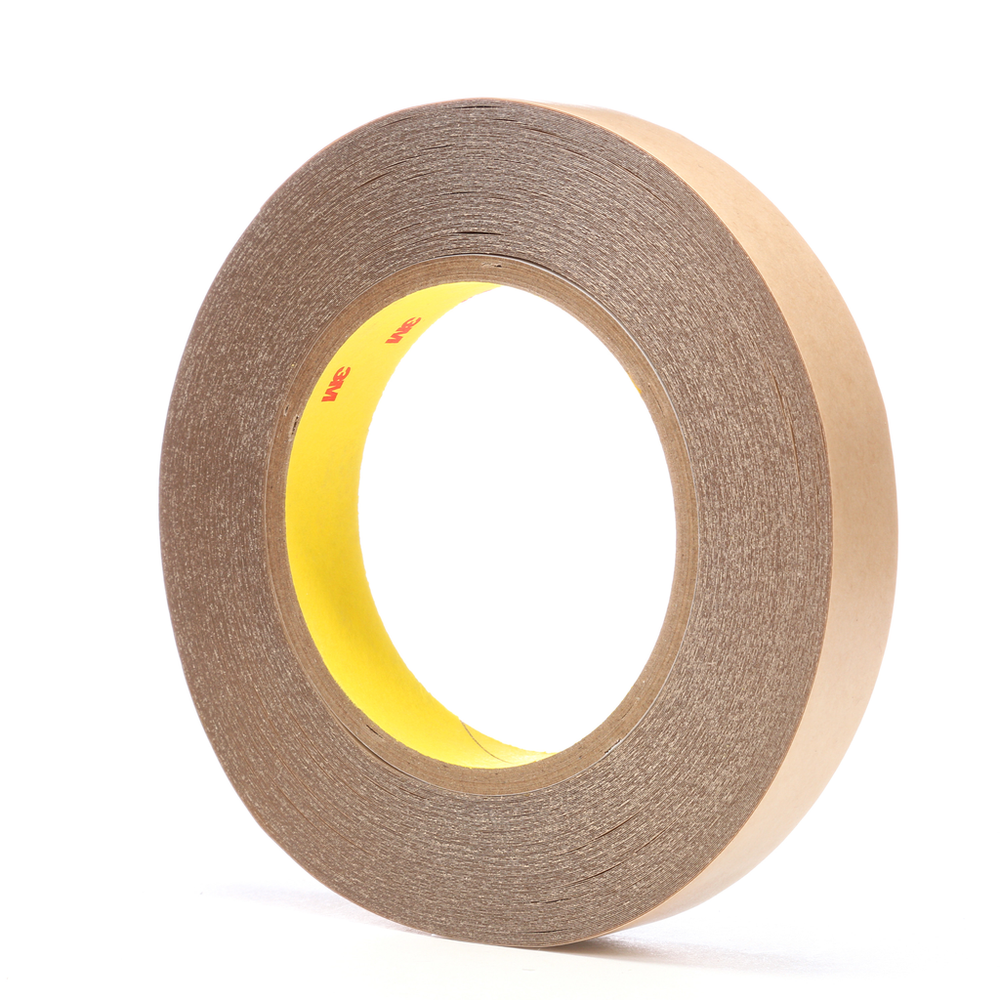

3M™ Double Coated Tape 9500PC, Clear, 3/4 in x 36 yd, 5.6 mil, 48 Roll/Case - 7000123415

Sold As: 48-Pack
SKU: 7000123415
MPN: 7000123415
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00021200677946
3M ID: 70006103009
5 Digit UPC: 67794
$1,144.89 ($23.85 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9500PC is a 5 mil (0.14 mm) 350 high performance acrylic adhesive double coat with a thin polyester carrier film on a 58#, 4.5 mil unprinted, polycoated kraft paper liner. The adhesive excels on low surface energy (LSE) substrates and at high temps.

Features

  • Adheres to powder coated surfaces, most plastics and difficult surfaces
  • High-holding strength and short-term heat resistance up to 350°F (177°C)
  • 58# unprinted polycoated kraft liner reduces edge burr during hard tool die cutting
  • Clear, 5 mil (0.14 mm) double coated tape with high performance acrylic
  • 1.0 mil, clear PET carrier film for dimensional stability and ease of die cutting
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Length (Metric)32.91
Primary Liner Thickness (Metric)0.11
Minimum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Metric) UOMmm
Primary Liner Thickness (Imperial) UOMmil
Overall Width (Metric)19.05
Back Side Adhesive Thickness (Metric)0.058
Backing (Carrier) Thickness (Metric)0.025
Back Side Adhesive Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Metric) UOMmm
Indoor/OutdoorIndoor/Outdoor
Overall Width (Metric) UOMmm
Back Side Adhesive Thickness (Imperial) UOMmil
Face Side Adhesive Thickness (Imperial) UOMmil
Minimum Operating Temperature (Celsius) UOMDegree
Primary Liner62# Polycoated Kraft Paper
Units per Case48.0
Overall Width (Imperial) UOMin
Primary Liner ColorTan
Face Side Adhesive Thickness (Imperial)2.3
Minimum Operating Temperature (Celsius)-40.0
Total Tape Thickness without Liner (Metric)0.14
Back Side Adhesive Thickness (Imperial)2.3
IndustriesAutomotive, Converter Solutions, Electronics, General Industrial, Medical, Metalworking, Military and Government, Oil & Gas, Signage, Specialty Vehicles, Transportation
Overall Length (Imperial) UOMyd
Overall Length (Metric) UOMm
Minimum Operating Temperature (Fahrenheit)-40.0
Product ColorTransparent
Total Tape Thickness without Liner (Imperial)5.6
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit)350.0
Primary Liner Thickness (Metric) UOMmm
Overall Width (Imperial)0.75
Maximum Operating Temperature (Celsius)177.0
Backing (Carrier) Thickness (Imperial) UOMmil
Primary Liner Thickness (Imperial)4.5
Backing (Carrier) Thickness (Imperial)1.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) MaterialPolyester
Overall Length (Imperial)36.0
Face Side Adhesive Thickness (Metric)0.058
Face Side Adhesive Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Imperial) UOMmil
