3M Products & Supplies

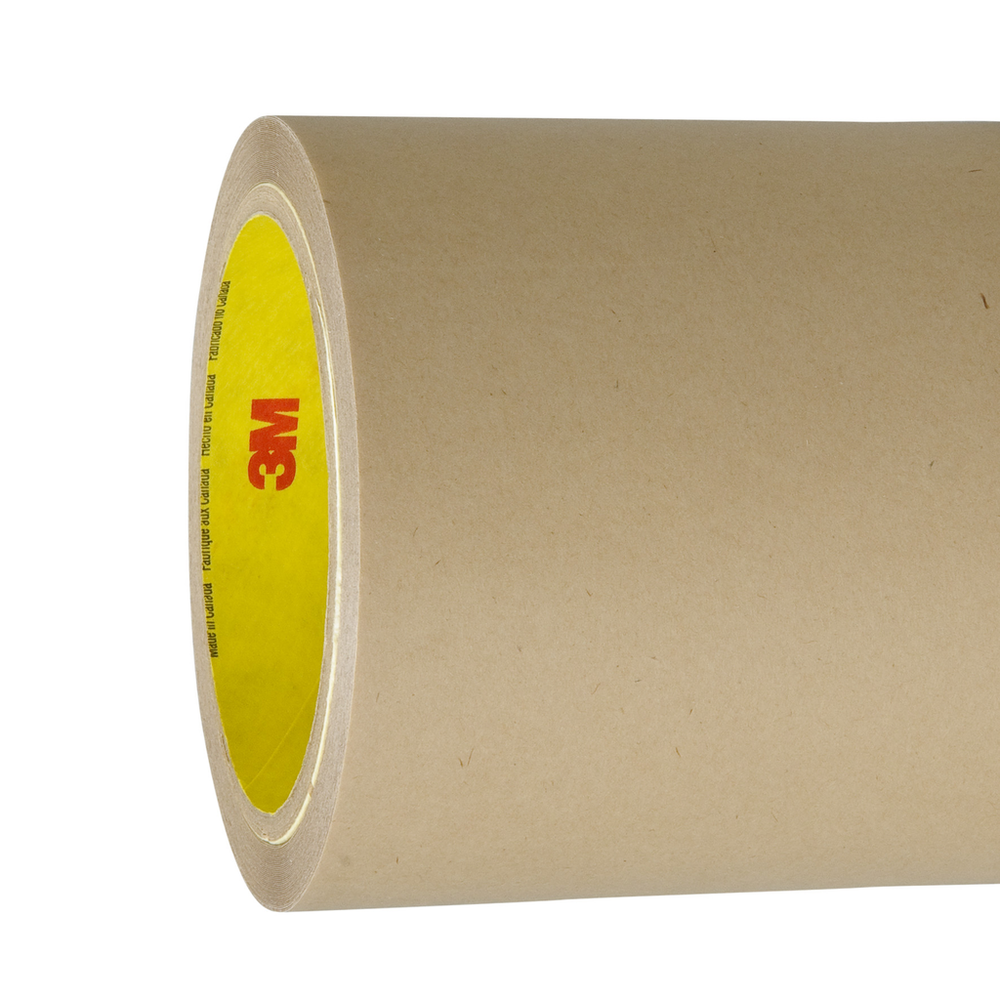

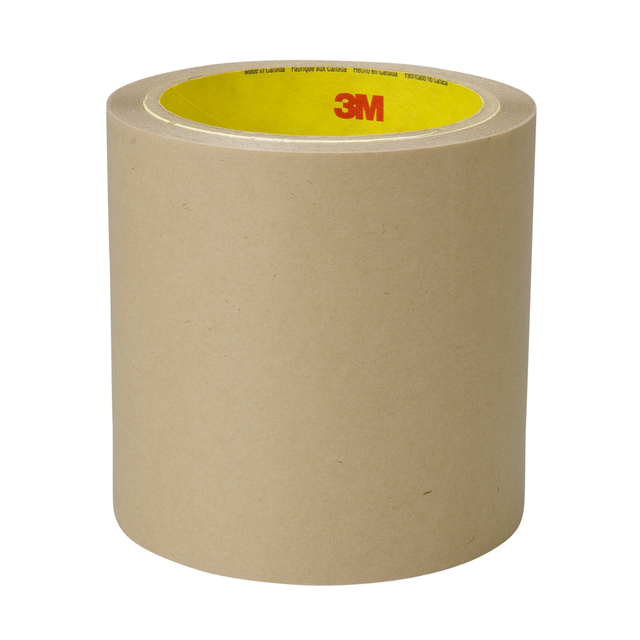

3M™ Double Coated Tape 9500PC, Clear, 48 in x 36 yd, 5.6 mil, Roll - 7010536026

SKU: 7010536026
MPN: 7010536026
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060604878
3M ID: CY998787881
5 Digit UPC: 60487
$1,526.52 each
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9500PC is a 5 mil (0.14 mm) 350 high performance acrylic adhesive double coat with a thin polyester carrier film on a 58#, 4.5 mil unprinted, polycoated kraft paper liner. The adhesive excels on low surface energy (LSE) substrates and at high temps.

Features

  • 1.0 mil, clear PET carrier film for dimensional stability and ease of die cutting
  • High-holding strength and short-term heat resistance up to 350°F (177°C)
  • Clear, 5 mil (0.14 mm) double coated tape with high performance acrylic
  • 58# unprinted polycoated kraft liner reduces edge burr during hard tool die cutting
  • Adheres to powder coated surfaces, most plastics and difficult surfaces
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Face Side Adhesive Thickness (Imperial)2.3
Overall Width (Imperial) UOMin
Backing (Carrier) Thickness (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit)-40.0
Overall Width (Imperial)48.0
Minimum Operating Temperature (Celsius)-40.0
Overall Width (Metric) UOMcm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Imperial)5.6
Total Tape Thickness without Liner (Metric)0.142
IndustriesMetalworking, Signage, Specialty Vehicles
Primary Liner Thickness (Metric)0.11
Total Tape Thickness without Liner (Metric) UOMmm
Face Side Adhesive Thickness (Imperial) UOMmil
Adhesive TypeAcrylic
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Metric) UOMmm
Indoor/OutdoorIndoor/Outdoor
Primary Liner Thickness (Imperial)0.004
Backing (Carrier) Thickness (Metric)0.025
Overall Length (Metric)32.91
Minimum Operating Temperature (Celsius) UOMDegree
Face Side Adhesive Thickness (Metric)0.058
Total Tape Thickness without Liner (Imperial) UOMmil
Back Side Adhesive Thickness (Imperial)2.3
Overall Width (Metric)122.0
Maximum Operating Temperature (Fahrenheit)350.0
Primary Liner Thickness (Imperial) UOMin
Backing (Carrier) Thickness (Imperial)1.0
Maximum Operating Temperature (Celsius) UOMDegree
Primary Liner Thickness (Metric) UOMmm
Backing (Carrier) MaterialPolyester
Back Side Adhesive Thickness (Metric) UOMmm
Face Side Adhesive Thickness (Metric) UOMmm
Back Side Adhesive Thickness (Metric)0.058
Overall Length (Imperial) UOMyd
Overall Length (Imperial)36.0
Product ColorTransparent
Maximum Operating Temperature (Celsius)177.0
Back Side Adhesive Thickness (Imperial) UOMmil
