3M Products & Supplies

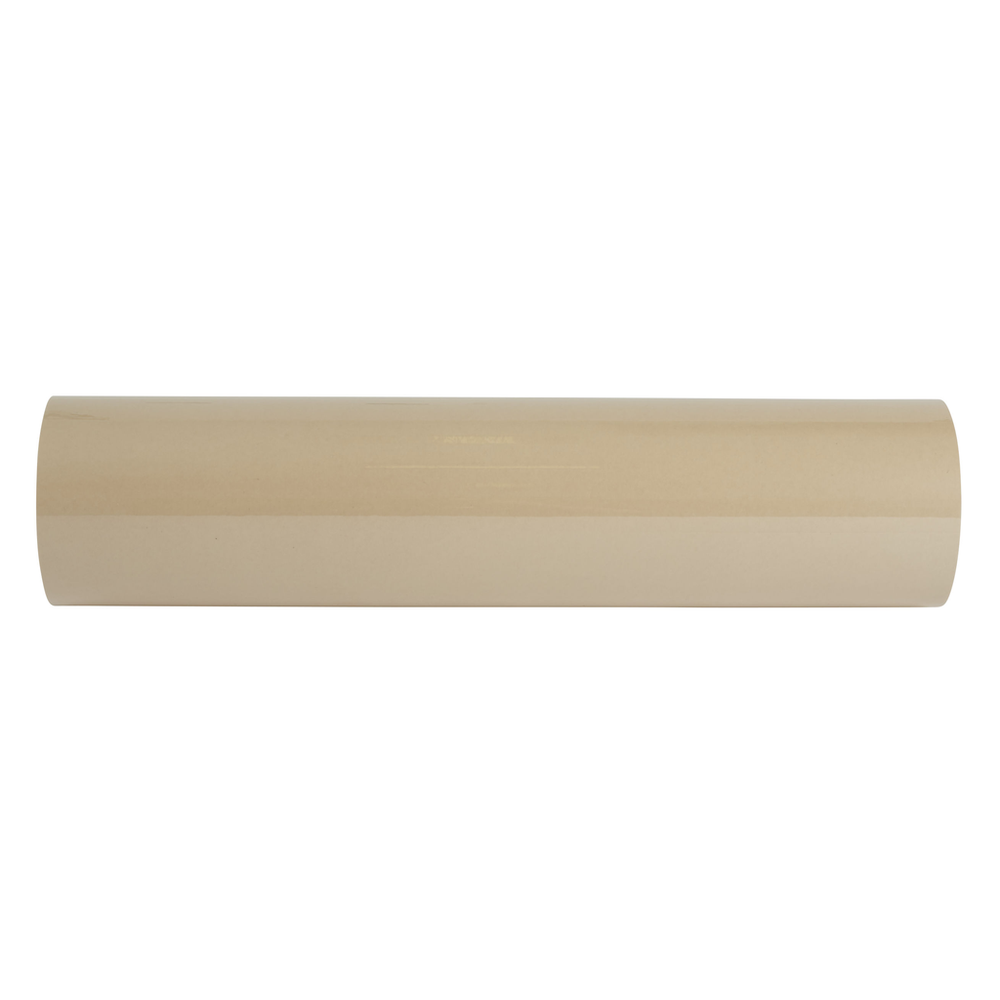

3M™ Double Coated Tape 9731-050, 48 in x 36 yd, 2 mil, 1 Roll/Case - 7000001494

SKU: 7000001494
MPN: 7000001494
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051111983294
3M ID: 70006723970
5 Digit UPC: 98329
$7,160.77 each
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9731-050 was developed with a high-performance acrylic adhesive on the face side and a silicone adhesive on the liner side of a 1 mil clear PET carrier. It is excellent for demanding applications where silicone materials must be bonded to a range of substrates.

Features

  • 3M™ Adhesive 350 on the face side provides exceptional temperature and chemical resistance
  • Ideal for attaching silicone rubber elastomers and foam
  • Features acrylic and silicone adhesives for specialized applications such as silicone gasketing
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Face Side Adhesive Thickness (Imperial)0.6
Overall Width (Metric) UOMcm
Carrier Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Metric) UOMmm
Total Tape Thickness without Liner (Imperial) UOMmil
Product CategoryAdhesive Transfer Tapes & Double Coated Tapes
Carrier Thickness UOMmil
Master Size Length (Metric)98.8
Carrier MaterialPolyester Film
Overall Length (Metric) UOMm
Product FormRoll
Product ColorTransparent
Primary Liner ColorTan
Backing (Carrier) Thickness (Imperial)0.056
Total Tape Thickness without Liner (Metric)0.05
IndustriesMilitary and Government
Backing (Carrier) Thickness (Metric) UOMmm
Face Side Adhesive Thickness (Metric)0.015
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Metric)0.014
Minimum Operating Temperature (Celsius)-40.0
Primary Liner Thickness (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit)250.0
Maximum Operating Temperature (Celsius)121.0
Minimum Operating Temperature (Celsius) UOMDegree
Shelf Life UOMMonth
Overall Length (Metric)32.91
Overall Thickness (Imperial)5.5
Primary Liner58# Polycoated Kraft Paper (PCK)
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Width (Imperial) UOMin
Back Side Adhesive TypeSilicone
Backing MaterialPolyester
Face Side Adhesive TypeHigh Performance Acrylic Adhesive 350
Overall Width (Metric)122.0
Adhesive TypeAcrylic/Silicone
Carrier Thickness0.56
Primary Liner Thickness (Metric) UOMmm
Back Side Adhesive Thickness (Metric) UOMmm
Primary Liner Thickness (Imperial)4.2
Face Side Adhesive Thickness (Metric) UOMmm
Overall Width (Imperial)48.0
Backing (Carrier) MaterialPolyester Film
Minimum Operating Temperature (Fahrenheit)-40.0
Master Size Width (Metric)122.0
Units per Case1.0
Master Size Length (Metric) UOMm
Master Size Width (Metric) UOMcm
Face Side Adhesive Thickness (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)36.0
Back Side Adhesive Thickness (Imperial)0.8
ApplicationGasket Assembly
Carrier Thickness (Metric)0.014
Overall Length (Imperial) UOMyd
Primary Liner Thickness (Metric)0.11
Shelf Life in Months (From Date of Manufacture)18.0
Shelf Life in Months (From Date of Manufacture) UOMMonths
Number of Adhesive SidesDouble-sided
Back Side Adhesive Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial)2.0
Overall Thickness (Imperial) UOMmil
