3M Products & Supplies

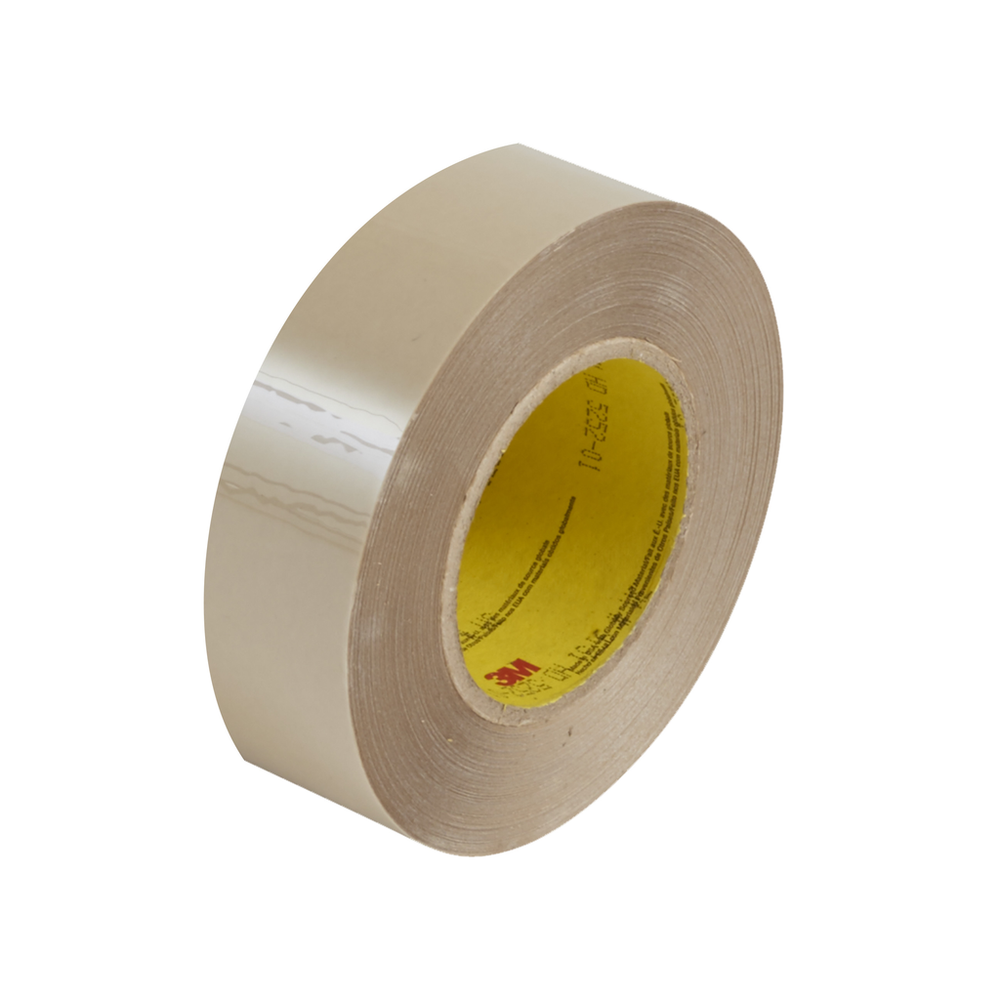

3M™ Double Coated Tape 9731, Clear, 1/2 in x 36 yd, 5.5 mil, 72 Roll/Case - 7000049089

Sold As: 72-Pack
SKU: 7000049089
MPN: 7000049089
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138953676
3M ID: 70006387842
5 Digit UPC: 95367
$5,365.71 ($74.52 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9731 was developed with a high-performance acrylic adhesive on the face side and a silicone adhesive on the liner side of a 1 mil clear PET carrier. It is excellent for demanding applications where silicone materials must be bonded to a range of substrates.

Features

  • Double linered – Adhesive 350 on 58# 4.2 mil PCK liner and silicone adhesive on 3 mil PET liner
  • Features acrylic and silicone adhesives for specialized applications such as silicone gasketing
  • 3 mil silicone adhesive on liner side bonds well to silicone substrates
  • 3M™ Adhesive 350 on the face side provides exceptional temperature and chemical resistance
  • Ideal for attaching silicone rubber elastomers and foam
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Minimum Operating Temperature (Fahrenheit)-40.0
Master Size Width (Metric) UOMcm
Total Tape Thickness without Liner (Imperial) UOMmil
Primary Liner Thickness (Metric)0.17
Overall Thickness (Imperial) UOMmil
Carrier Thickness UOMmil
Secondary Liner Thickness (Imperial)2.9
Carrier Thickness (Metric)0.03
Shelf Life in Months (From Date of Manufacture)12.0
Core Size (Metric)76.2
Back Side Adhesive Thickness (Metric) UOMmm
IndustriesAerospace, Appliance, Automotive, Converter Solutions, Electronics, General Industrial, Medical, Metalworking, Military and Government, Oil & Gas, Signage, Specialty Vehicles, Transportation
Secondary Liner Thickness (Metric) UOMmm
Tape TypeDouble Coated
Overall Width (Imperial)0.5
Shelf Life in Months (From Date of Manufacture) UOMMonths
Overall Width (Imperial) UOMin
Product ColorTransparent
Total Tape Thickness without Liner (Metric) UOMmm
Carrier Thickness0.09513889
Indoor/OutdoorBoth
Back Side Adhesive Thickness (Imperial)2.9
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric)32.91
Backing (Carrier) Thickness (Metric)0.025
Overall Width (Metric) UOMmm
Primary Liner ColorTan
Units per Case72.0
Core Size (Metric) UOMmm
Master Size Width (Metric)122.0
Carrier Thickness (Metric) UOMmm
Overall Width (Metric)12.7
Assembly TypeGasket Attachment
Face Side Adhesive TypeHigh Performance Acrylic Adhesive 350
Primary Liner Thickness (Metric) UOMmm
Minimum Operating Temperature (Celsius)-40.0
Backing (Carrier) Thickness (Imperial) UOMmil
Core Size (Imperial)3.0
Adhesive TypeAcrylic/Silicone
Face Side Adhesive Thickness (Imperial)1.6
Overall Length (Imperial) UOMyd
Back Side Adhesive Thickness (Imperial) UOMmil
Secondary Liner Thickness (Metric)0.07
Overall Length (Imperial)36.0
Total Tape Thickness without Liner (Metric)0.14
Primary Liner58# Polycoated Kraft Paper (PCK)
Face Side Adhesive Thickness (Metric)0.041
Carrier MaterialPolyester Film
Back Side Adhesive TypeSilicone
Face Side Adhesive Thickness (Metric) UOMmm
Primary Liner Thickness (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit)250.0
Total Tape Thickness without Liner (Imperial)5.5
Backing (Carrier) MaterialPolyester Film
Master Size Length (Metric)98.8
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius)121.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric) UOMm
Overall Thickness (Imperial)5.5
Backing (Carrier) Thickness (Imperial)1.0
Core Size (Imperial) UOMin
Product FormRoll
Shelf Life UOMMonth
Primary Liner Thickness (Imperial)4.2
Secondary Liner Thickness (Imperial) UOMmil
Face Side Adhesive Thickness (Imperial) UOMmil
Master Size Length (Metric) UOMm
Backing (Carrier) Thickness (Metric) UOMmm
