3M Products & Supplies

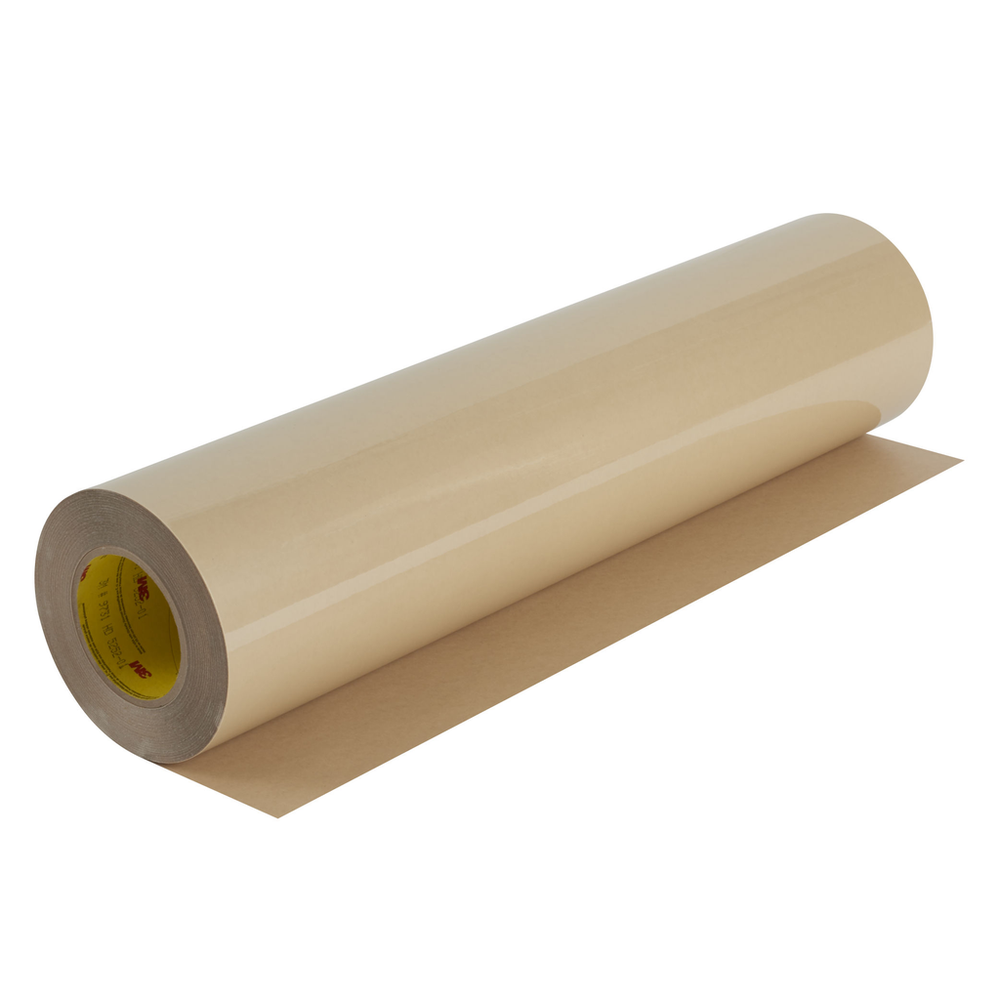

3M™ Double Coated Tape 9731, Clear, 18 in x 108 yd, 6.2 mil, 1 Roll/Case - 7010312679

Sold As: 2-Pack
SKU: 7010312679
MPN: 7010312679
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138957469
3M ID: 70006391612
5 Digit UPC: 95746
$16,097.30 ($8048.65 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9731 was developed with a high-performance acrylic adhesive on the face side and a silicone adhesive on the liner side of a 1 mil clear PET carrier. It is excellent for demanding applications where silicone materials must be bonded to a range of substrates.

Features

  • Features acrylic and silicone adhesives for specialized applications such as silicone gasketing
  • 3M™ Adhesive 350 on the face side provides exceptional temperature and chemical resistance
  • Ideal for attaching silicone rubber elastomers and foam
  • 3 mil silicone adhesive on liner side bonds well to silicone substrates
  • Double linered – Adhesive 350 on 58# 4.2 mil PCK liner and silicone adhesive on 3 mil PET liner
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Face Side Adhesive Thickness (Metric) UOMmm
Product FormRoll
Indoor/OutdoorBoth
Overall Length (Metric)98.75
Backing (Carrier) MaterialPolyester Film
Master Size Width (Metric) UOMcm
Total Tape Thickness without Liner (Metric) UOMmm
Product ColorTransparent
Overall Width (Imperial) UOMin
Adhesive TypeAcrylic/Silicone
Maximum Operating Temperature (Celsius)121.0
Master Size Length (Metric) UOMm
Core Size (Metric) UOMmm
Overall Width (Metric) UOMmm
Primary Liner ColorTan
Overall Width (Imperial)18.0
Total Tape Thickness without Liner (Metric)0.14
Tape TypeDouble Coated
Minimum Operating Temperature (Celsius) UOMDegree
Shelf Life in Months (From Date of Manufacture) UOMMonths
Secondary Liner Thickness (Imperial) UOMmil
Secondary Liner Thickness (Metric) UOMmm
Core Size (Imperial)3.0
Carrier MaterialPolyester Film
Face Side Adhesive Thickness (Imperial) UOMmil
Carrier Thickness (Metric) UOMmm
Primary Liner58# Polycoated Kraft Paper (PCK)
Back Side Adhesive Thickness (Imperial) UOMmil
Overall Thickness (Imperial)5.5
Minimum Operating Temperature (Fahrenheit) UOMDegree
Units per Case1.0
Backing (Carrier) Thickness (Imperial) UOMmil
Face Side Adhesive Thickness (Metric)0.041
Backing (Carrier) Thickness (Imperial)1.0
Primary Liner Thickness (Metric)0.17
IndustriesAerospace, Appliance, Automotive, Converter Solutions, Electronics, General Industrial, Medical, Metalworking, Military and Government, Oil & Gas, Signage, Specialty Vehicles, Transportation
Backing (Carrier) Thickness (Metric)0.025
Overall Width (Metric)457.2
Carrier Thickness (Metric)0.03
Back Side Adhesive Thickness (Imperial)2.9
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Metric) UOMmm
Carrier Thickness0.09513889
Primary Liner Thickness (Imperial) UOMmil
Primary Liner Thickness (Metric) UOMmm
Master Size Length (Metric)98.8
Face Side Adhesive TypeHigh Performance Acrylic Adhesive 350
Total Tape Thickness without Liner (Imperial)5.5
Secondary Liner Thickness (Metric)0.07
Maximum Operating Temperature (Fahrenheit)250.0
Minimum Operating Temperature (Celsius)-40.0
Primary Liner Thickness (Imperial)4.2
Minimum Operating Temperature (Fahrenheit)-40.0
Core Size (Imperial) UOMin
Face Side Adhesive Thickness (Imperial)1.6
Master Size Width (Metric)122.0
Core Size (Metric)76.2
Secondary Liner Thickness (Imperial)2.9
Back Side Adhesive TypeSilicone
Overall Thickness (Imperial) UOMmil
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Imperial) UOMmil
Assembly TypeGasket Attachment
Back Side Adhesive Thickness (Metric) UOMmm
Carrier Thickness UOMmil
Overall Length (Imperial)108.0
Shelf Life in Months (From Date of Manufacture)12.0
Shelf Life UOMMonth
Overall Length (Imperial) UOMyd
