3M Products & Supplies

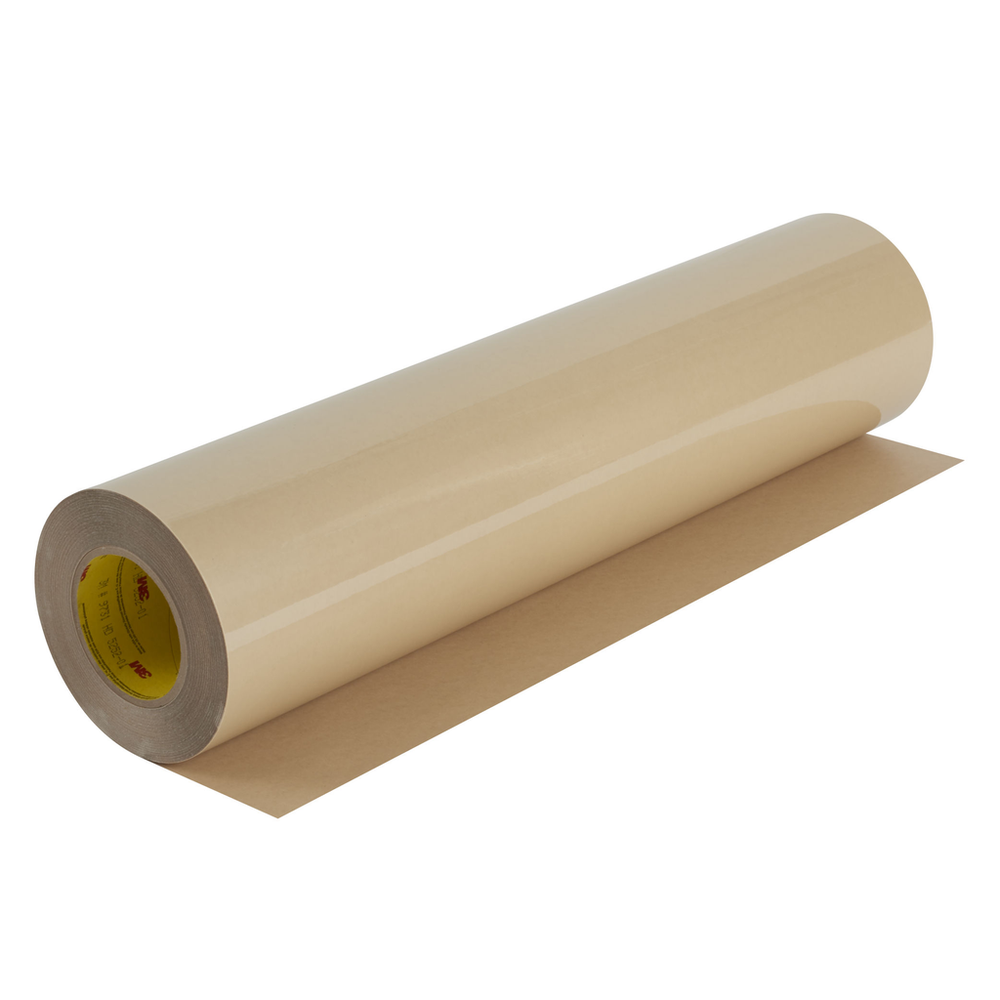

3M™ Double Coated Tape 9731, Clear, 48 in x 36 yd, 5.5 mil, Trimmed Edge Plastic Cores, 1 Roll/Case - 7010408195

SKU: 7010408195
MPN: 7010408195
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00076308143176
3M ID: 70007512281
5 Digit UPC: 14317
$7,152.83 each
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9731 was developed with a high-performance acrylic adhesive on the face side and a silicone adhesive on the liner side of a 1 mil clear PET carrier. It is excellent for demanding applications where silicone materials must be bonded to a range of substrates.

Features

  • Double linered – Adhesive 350 on 58# 4.2 mil PCK liner and silicone adhesive on 3 mil PET liner
  • 3M™ Adhesive 350 on the face side provides exceptional temperature and chemical resistance
  • 3 mil silicone adhesive on liner side bonds well to silicone substrates
  • Ideal for attaching silicone rubber elastomers and foam
  • Features acrylic and silicone adhesives for specialized applications such as silicone gasketing
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Back Side Adhesive Thickness (Imperial) UOMmil
Adhesive TypeAcrylic/Silicone
Backing (Carrier) Thickness (Metric)0.025
Minimum Operating Temperature (Celsius) UOMDegree
Core Size (Imperial) UOMin
Overall Width (Imperial) UOMin
Face Side Adhesive Thickness (Imperial)1.6
Back Side Adhesive Thickness (Imperial)2.9
Core Size (Imperial)3.0
Maximum Operating Temperature (Fahrenheit)250.0
Shelf Life in Months (From Date of Manufacture)12.0
Back Side Adhesive TypeSilicone
Primary Liner ColorTan
Overall Length (Metric) UOMm
Minimum Operating Temperature (Fahrenheit) UOMDegree
Primary Liner Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial) UOMmil
Tape TypeDouble Coated
Total Tape Thickness without Liner (Metric)0.14
Core Size (Metric)76.2
Minimum Operating Temperature (Celsius)-40.0
Carrier Thickness (Metric) UOMmm
Overall Length (Imperial) UOMyd
Shelf Life in Months (From Date of Manufacture) UOMMonths
Shelf Life UOMMonth
Total Tape Thickness without Liner (Imperial)5.5
Overall Length (Metric)32.92
Back Side Adhesive Thickness (Metric) UOMmm
Product FormRoll
Face Side Adhesive Thickness (Metric) UOMmm
Indoor/OutdoorBoth
Maximum Operating Temperature (Celsius)121.0
Product ColorTransparent
Core Size (Metric) UOMmm
Primary Liner58# Polycoated Kraft Paper (PCK)
Primary Liner Thickness (Metric)0.17
Face Side Adhesive Thickness (Metric)0.041
IndustriesAutomotive, Construction, Electronics, General Industrial, Marine, Metalworking, Military, Specialty Vehicles, Transportation, Woodworking
Overall Length (Imperial)36.0
Carrier Thickness (Metric)0.03
Primary Liner Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Metric) UOMmm
Primary Liner Thickness (Imperial)4.2
Overall Width (Metric) UOMcm
Overall Width (Imperial)48.0
Backing (Carrier) Thickness (Imperial) UOMmil
Face Side Adhesive Thickness (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit)-40.0
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) Thickness (Imperial)1.0
Face Side Adhesive TypeHigh Performance Acrylic Adhesive 350
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric)122.0
Carrier Thickness UOMmil
Carrier Thickness0.09513889
