3M Products & Supplies

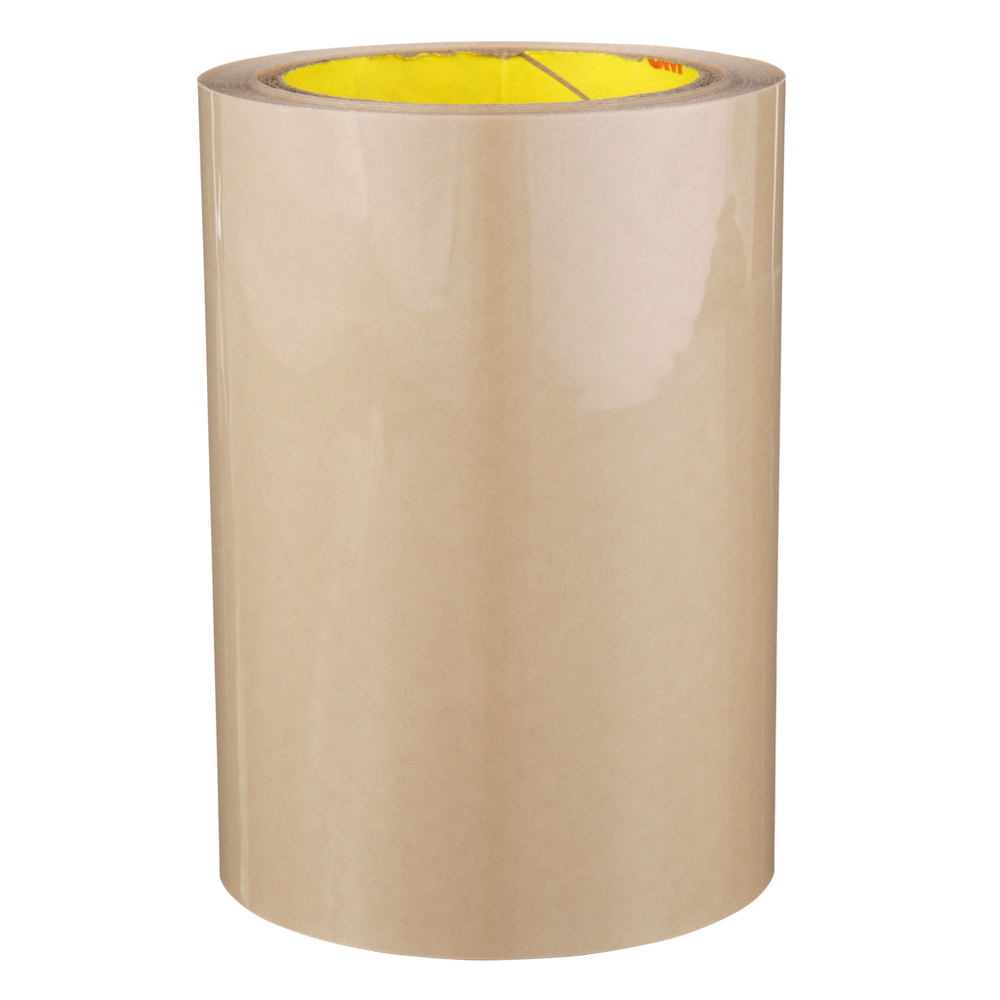

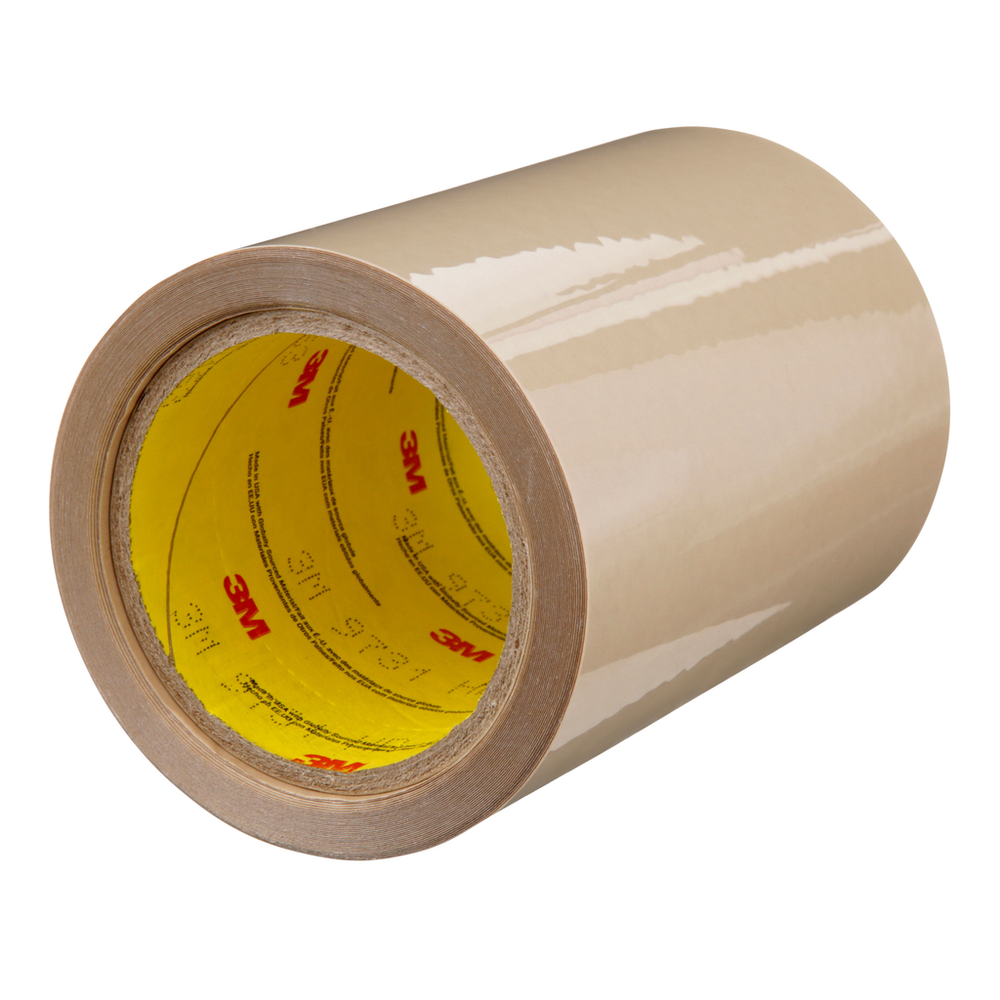

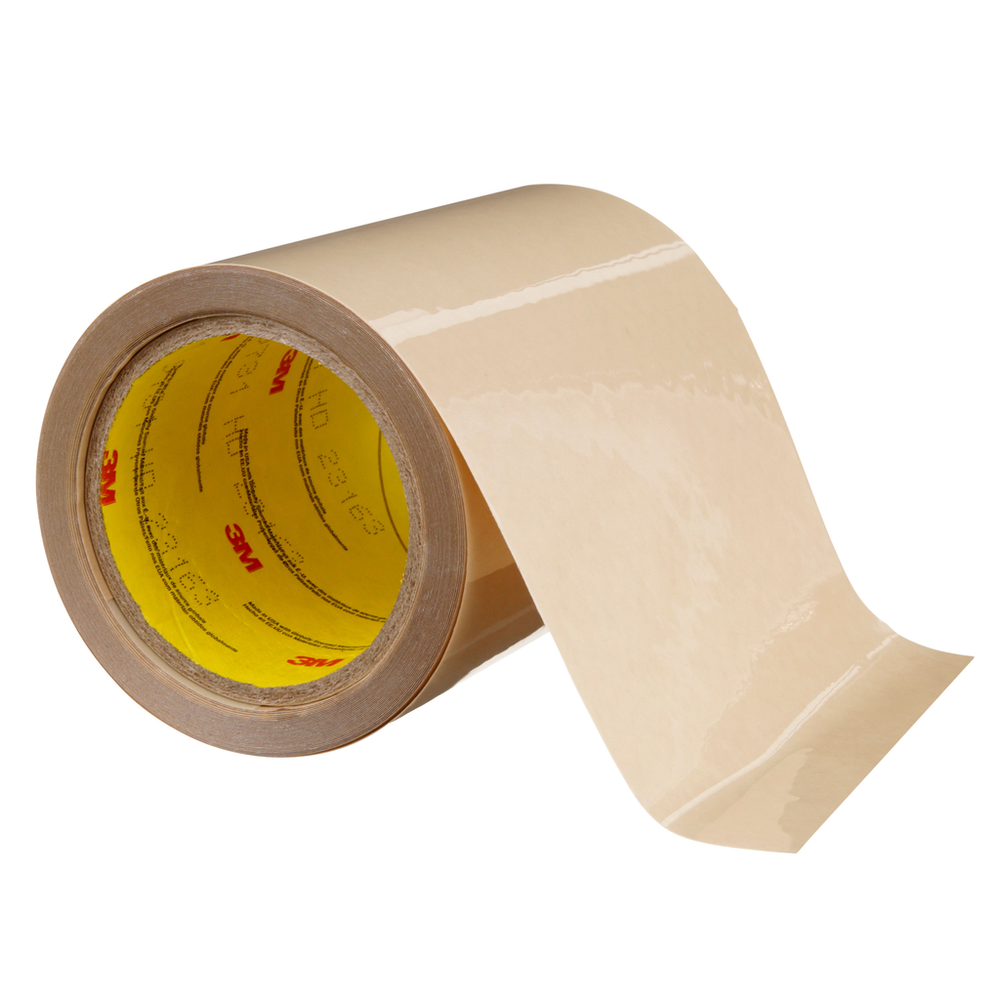

3M™ Double Coated Tape 9731, Clear, 6 in x 36 yd, 5.5 mil, 8 Roll/Case - 7100115007

Sold As: 8-Pack
SKU: 7100115007
MPN: 7100115007
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138956080
3M ID: 70006390259
5 Digit UPC: 95608
$7,154.36 ($894.29 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9731 was developed with a high-performance acrylic adhesive on the face side and a silicone adhesive on the liner side of a 1 mil clear PET carrier. It is excellent for demanding applications where silicone materials must be bonded to a range of substrates.

Features

  • 3M™ Adhesive 350 on the face side provides exceptional temperature and chemical resistance
  • Double linered – Adhesive 350 on 58# 4.2 mil PCK liner and silicone adhesive on 3 mil PET liner
  • Ideal for attaching silicone rubber elastomers and foam
  • 3 mil silicone adhesive on liner side bonds well to silicone substrates
  • Features acrylic and silicone adhesives for specialized applications such as silicone gasketing
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Carrier Thickness0.09513889
Carrier MaterialPolyester Film
Assembly TypeGasket Attachment
Core Size (Imperial) UOMin
Backing (Carrier) Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial) UOMmil
Minimum Operating Temperature (Celsius)-40.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Core Size (Imperial)3.0
Face Side Adhesive Thickness (Imperial)1.6
Overall Length (Metric)32.91
Secondary Liner Thickness (Imperial) UOMmil
Secondary Liner Thickness (Metric)0.07
Overall Width (Metric)152.4
Master Size Width (Metric)122.0
Overall Width (Imperial)6.0
Product ColorTransparent
Primary Liner Thickness (Metric)0.17
Overall Length (Imperial) UOMyd
Primary Liner Thickness (Metric) UOMmm
Master Size Length (Metric)98.8
Product FormRoll
Total Tape Thickness without Liner (Metric) UOMmm
Overall Thickness (Imperial)5.5
Master Size Length (Metric) UOMm
IndustriesAerospace, Appliance, Automotive, Converter Solutions, Electronics, General Industrial, Medical, Metalworking, Military and Government, Oil & Gas, Signage, Specialty Vehicles, Transportation
Primary Liner Thickness (Imperial) UOMmil
Face Side Adhesive Thickness (Imperial) UOMmil
Tape TypeDouble Coated
Minimum Operating Temperature (Fahrenheit)-40.0
Overall Width (Metric) UOMmm
Shelf Life UOMMonth
Backing (Carrier) Thickness (Metric) UOMmm
Master Size Width (Metric) UOMcm
Maximum Operating Temperature (Celsius)121.0
Back Side Adhesive TypeSilicone
Units per Case8.0
Backing (Carrier) Thickness (Metric)0.025
Face Side Adhesive TypeHigh Performance Acrylic Adhesive 350
Secondary Liner Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)5.5
Primary Liner Thickness (Imperial)4.2
Maximum Operating Temperature (Fahrenheit)250.0
Backing (Carrier) MaterialPolyester Film
Overall Width (Imperial) UOMin
Face Side Adhesive Thickness (Metric) UOMmm
Overall Thickness (Imperial) UOMmil
Adhesive TypeAcrylic/Silicone
Primary Liner58# Polycoated Kraft Paper (PCK)
Back Side Adhesive Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Imperial)1.0
Carrier Thickness UOMmil
Minimum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Metric)0.14
Shelf Life in Months (From Date of Manufacture)12.0
Indoor/OutdoorBoth
Primary Liner ColorTan
Secondary Liner Thickness (Imperial)2.9
Shelf Life in Months (From Date of Manufacture) UOMMonths
Overall Length (Metric) UOMm
Core Size (Metric) UOMmm
Overall Length (Imperial)36.0
Core Size (Metric)76.2
Carrier Thickness (Metric)0.03
Carrier Thickness (Metric) UOMmm
Back Side Adhesive Thickness (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit) UOMDegree
Back Side Adhesive Thickness (Imperial)2.9
Face Side Adhesive Thickness (Metric)0.041
