3M Products & Supplies

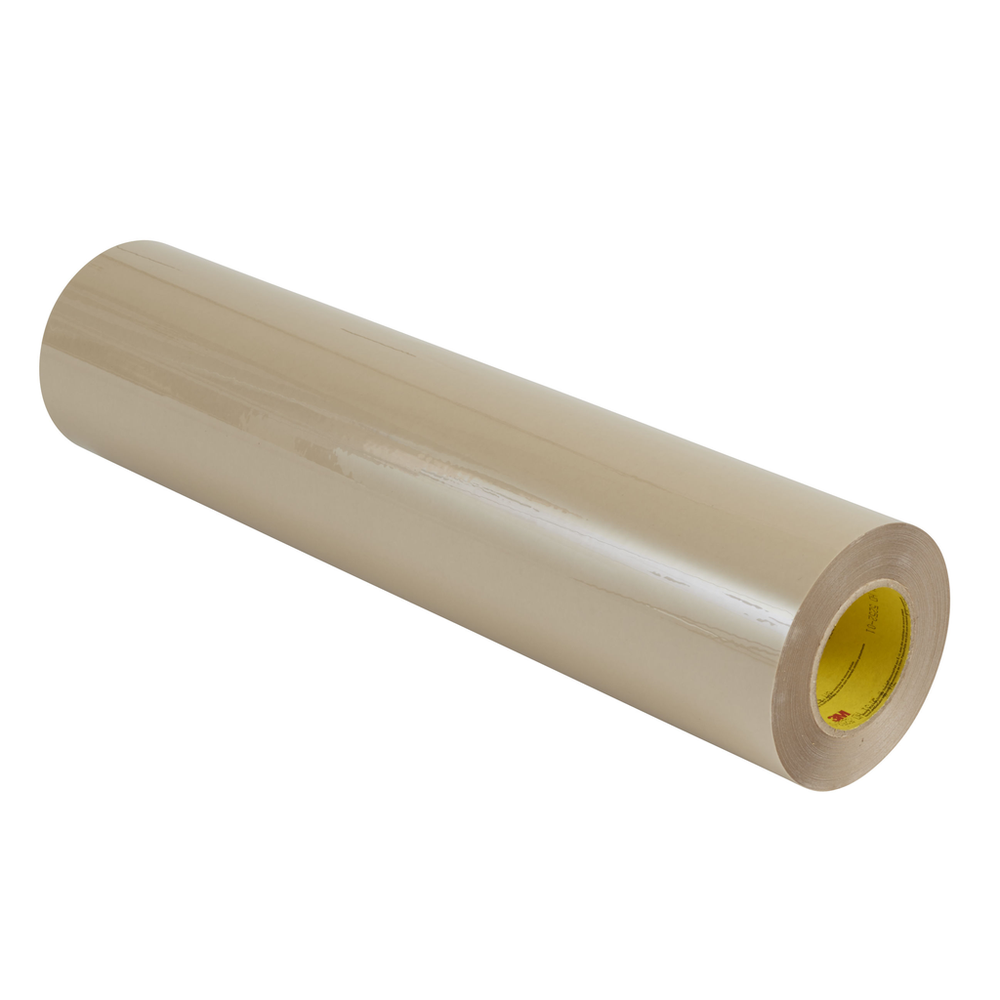

3M™ Double Coated Tape 9731, Clear, 6 inch core, 24 in x 108 yd, 5.5 mil, 1 Roll/Case - 7010373563

SKU: 7010373563
MPN: 7010373563
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138960155
3M ID: 70006393808
5 Digit UPC: 96015
$10,730.79 each
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9731 was developed with a high-performance acrylic adhesive on the face side and a silicone adhesive on the liner side of a 1 mil clear PET carrier. It is excellent for demanding applications where silicone materials must be bonded to a range of substrates.

Features

  • Features acrylic and silicone adhesives for specialized applications such as silicone gasketing
  • Ideal for attaching silicone rubber elastomers and foam
  • 3 mil silicone adhesive on liner side bonds well to silicone substrates
  • Double linered – Adhesive 350 on 58# 4.2 mil PCK liner and silicone adhesive on 3 mil PET liner
  • 3M™ Adhesive 350 on the face side provides exceptional temperature and chemical resistance
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Secondary Liner Thickness (Metric) UOMmm
Minimum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric) UOMm
Product FormRoll
Carrier MaterialPolyester Film
Indoor/OutdoorBoth
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Length (Imperial) UOMyd
Primary Liner ColorTan
Master Size Length (Metric)98.8
Overall Thickness (Imperial) UOMmil
Backing (Carrier) MaterialPolyester Film
Face Side Adhesive Thickness (Metric) UOMmm
Primary Liner Thickness (Imperial) UOMmil
Overall Width (Imperial) UOMin
Master Size Length (Metric) UOMm
Core Size (Imperial)3.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Adhesive TypeAcrylic/Silicone
Core Size (Imperial) UOMin
Overall Length (Metric)98.75
Carrier Thickness UOMmil
Face Side Adhesive Thickness (Imperial) UOMmil
Overall Width (Imperial)24.0
Carrier Thickness (Metric)0.03
Shelf Life in Months (From Date of Manufacture) UOMMonths
Secondary Liner Thickness (Metric)0.07
Overall Thickness (Imperial)5.5
Minimum Operating Temperature (Celsius)-40.0
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.14
Back Side Adhesive Thickness (Imperial) UOMmil
Primary Liner58# Polycoated Kraft Paper (PCK)
Total Tape Thickness without Liner (Metric) UOMmm
Face Side Adhesive Thickness (Imperial)1.6
Backing (Carrier) Thickness (Metric)0.025
Maximum Operating Temperature (Fahrenheit)250.0
Backing (Carrier) Thickness (Metric) UOMmm
Units per Case1.0
Back Side Adhesive TypeSilicone
Core Size (Metric) UOMmm
Product ColorTransparent
Carrier Thickness0.0951388888888889
Shelf Life UOMMonth
Face Side Adhesive Thickness (Metric)0.041
Minimum Operating Temperature (Fahrenheit)-40.0
IndustriesAerospace, Appliance, Automotive, Converter Solutions, Electronics, General Industrial, Medical, Metalworking, Military and Government, Oil & Gas, Signage, Specialty Vehicles, Transportation
Shelf Life in Months (From Date of Manufacture)12.0
Tape TypeDouble Coated
Carrier Thickness (Metric) UOMmm
Master Size Width (Metric)122.0
Master Size Width (Metric) UOMcm
Primary Liner Thickness (Imperial)4.2
Overall Width (Metric)609.6
Primary Liner Thickness (Metric) UOMmm
Secondary Liner Thickness (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit) UOMDegree
Primary Liner Thickness (Metric)0.17
Back Side Adhesive Thickness (Imperial)2.9
Maximum Operating Temperature (Celsius)121.0
Overall Length (Imperial)108.0
Total Tape Thickness without Liner (Imperial)5.5
Back Side Adhesive Thickness (Metric) UOMmm
Core Size (Metric)76.2
Face Side Adhesive TypeHigh Performance Acrylic Adhesive 350
Backing (Carrier) Thickness (Imperial)1.0
Secondary Liner Thickness (Imperial)2.9
