3M Products & Supplies

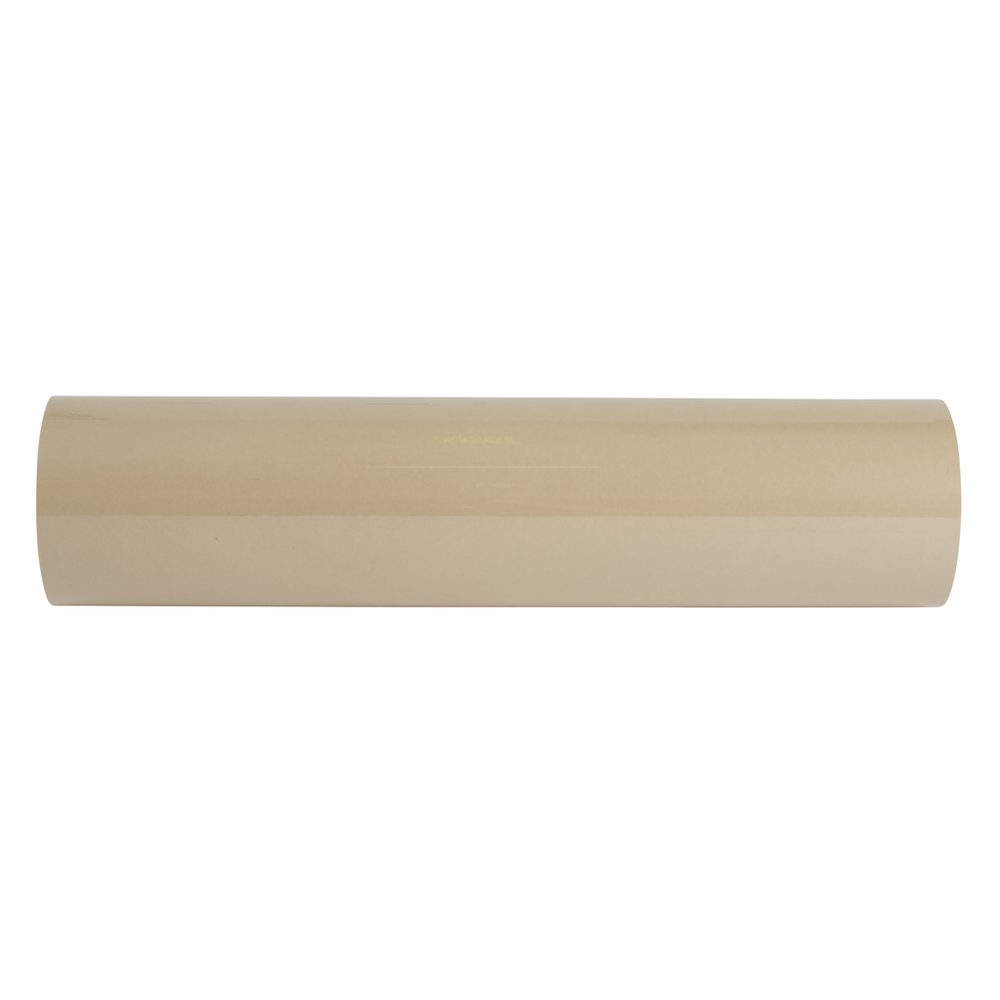

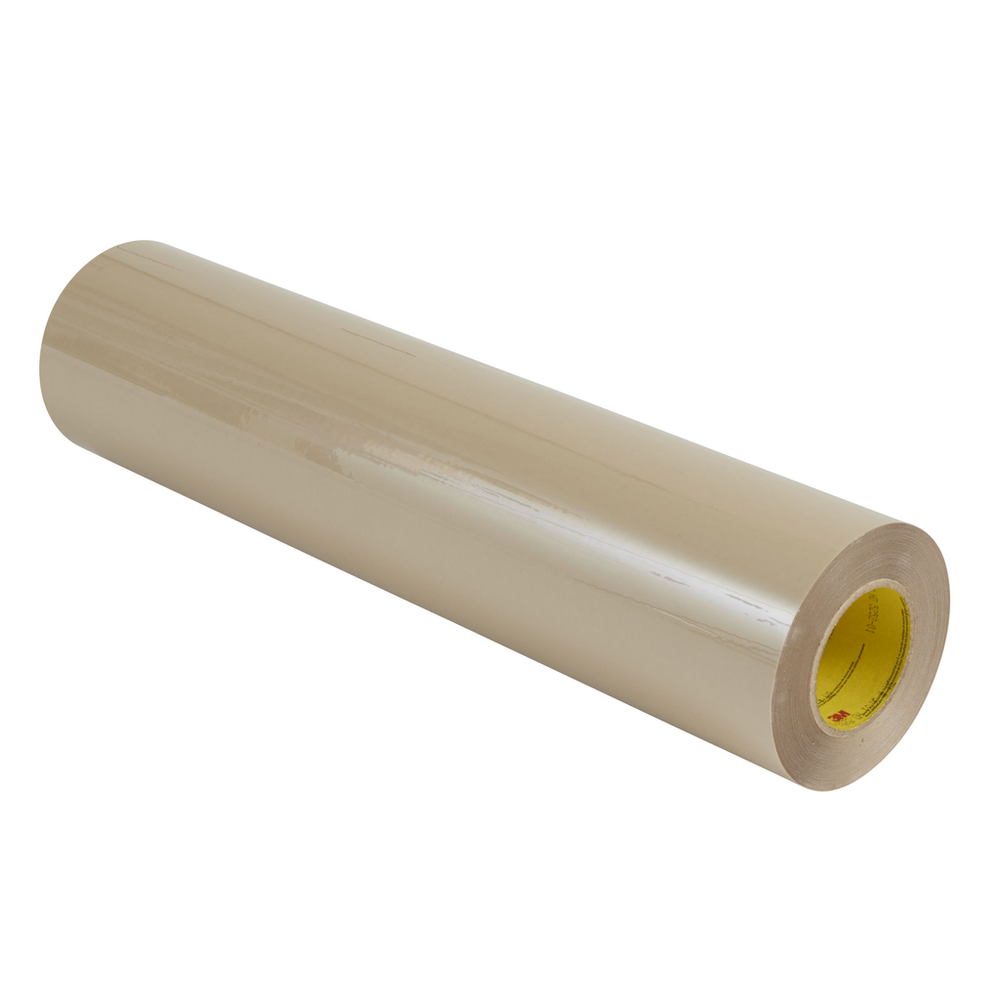

3M™ Double Coated Tape 9731, Clear, 6 inch core, 38 in x 108 yd, 5.5 mil, 1 Roll/Case - 7010373546

SKU: 7010373546
MPN: 7010373546
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138957971
3M ID: 70006392065
5 Digit UPC: 95797
$16,990.43 each
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9731 was developed with a high-performance acrylic adhesive on the face side and a silicone adhesive on the liner side of a 1 mil clear PET carrier. It is excellent for demanding applications where silicone materials must be bonded to a range of substrates.

Features

  • Double linered – Adhesive 350 on 58# 4.2 mil PCK liner and silicone adhesive on 3 mil PET liner
  • 3M™ Adhesive 350 on the face side provides exceptional temperature and chemical resistance
  • Features acrylic and silicone adhesives for specialized applications such as silicone gasketing
  • Ideal for attaching silicone rubber elastomers and foam
  • 3 mil silicone adhesive on liner side bonds well to silicone substrates
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Overall Width (Imperial) UOMin
Product ColorTransparent
Back Side Adhesive Thickness (Imperial)2.9
Shelf Life UOMMonth
Secondary Liner Thickness (Metric)0.07
Minimum Operating Temperature (Celsius) UOMDegree
Carrier Thickness0.0951388888888889
Master Size Width (Metric)122.0
Total Tape Thickness without Liner (Metric) UOMmm
Core Size (Imperial) UOMin
Master Size Length (Metric)98.8
Backing (Carrier) Thickness (Metric)0.025
Primary Liner Thickness (Metric) UOMmm
Indoor/OutdoorBoth
Back Side Adhesive TypeSilicone
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Metric)0.14
Primary Liner ColorTan
Overall Width (Imperial)38.0
Master Size Length (Metric) UOMm
Total Tape Thickness without Liner (Imperial) UOMmil
Core Size (Metric) UOMmm
Primary Liner Thickness (Imperial)4.2
Overall Length (Metric)16.4592
Primary Liner Thickness (Metric)0.17
Maximum Operating Temperature (Fahrenheit)250.0
Back Side Adhesive Thickness (Imperial) UOMmil
Secondary Liner Thickness (Metric) UOMmm
Carrier MaterialPolyester Film
Carrier Thickness UOMmil
Core Size (Imperial)3.0
Overall Width (Metric) UOMmm
Face Side Adhesive Thickness (Metric)0.041
Tape TypeDouble Coated
Backing (Carrier) Thickness (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Shelf Life in Months (From Date of Manufacture) UOMMonths
Units per Case1.0
Product FormRoll
Adhesive TypeAcrylic/Silicone
Shelf Life in Months (From Date of Manufacture)12.0
Backing (Carrier) Thickness (Imperial)1.0
Minimum Operating Temperature (Fahrenheit)-40.0
Overall Length (Imperial)18.0
Primary Liner58# Polycoated Kraft Paper (PCK)
Overall Width (Metric)965.2
Overall Thickness (Imperial) UOMmil
IndustriesAerospace, Appliance, Automotive, Converter Solutions, Electronics, General Industrial, Medical, Metalworking, Military and Government, Oil & Gas, Signage, Specialty Vehicles, Transportation
Core Size (Metric)76.2
Primary Liner Thickness (Imperial) UOMmil
Carrier Thickness (Metric) UOMmm
Secondary Liner Thickness (Imperial)2.9
Master Size Width (Metric) UOMcm
Back Side Adhesive Thickness (Metric) UOMmm
Overall Length (Imperial) UOMyd
Face Side Adhesive Thickness (Imperial) UOMmil
Secondary Liner Thickness (Imperial) UOMmil
Backing (Carrier) MaterialPolyester Film
Face Side Adhesive TypeHigh Performance Acrylic Adhesive 350
Maximum Operating Temperature (Celsius)121.0
Overall Thickness (Imperial)5.5
Total Tape Thickness without Liner (Imperial)5.5
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Imperial) UOMmil
Carrier Thickness (Metric)0.03
Minimum Operating Temperature (Celsius)-40.0
Face Side Adhesive Thickness (Imperial)1.6
Face Side Adhesive Thickness (Metric) UOMmm
