3M Products & Supplies

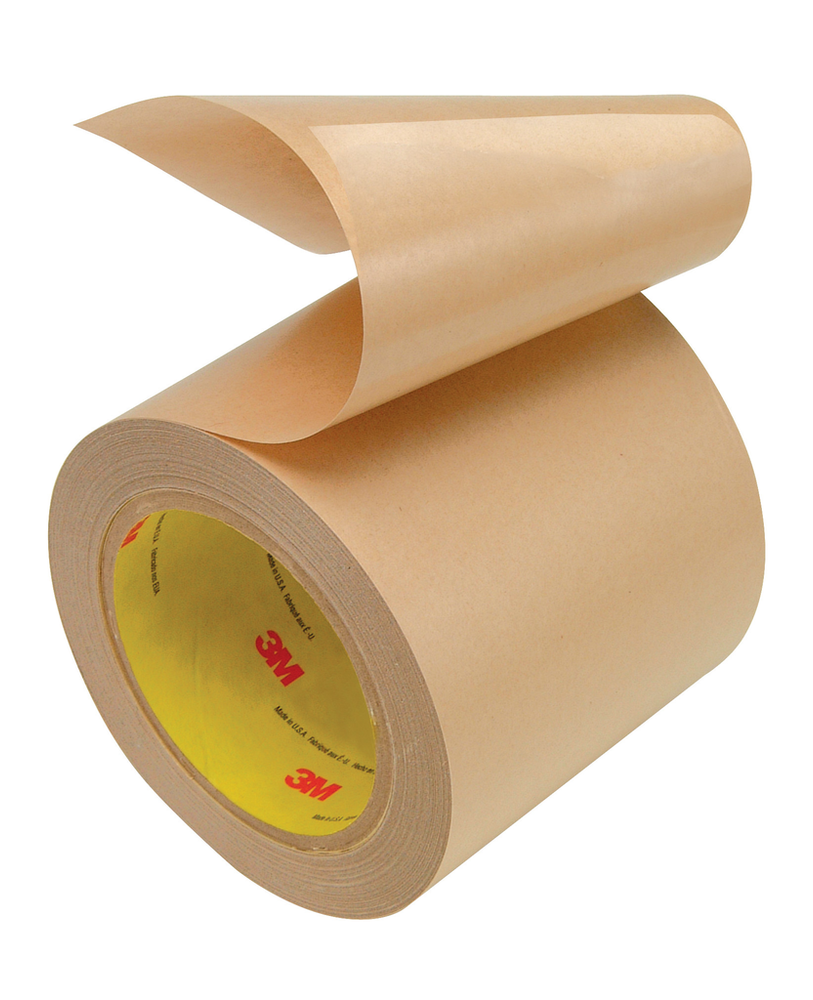

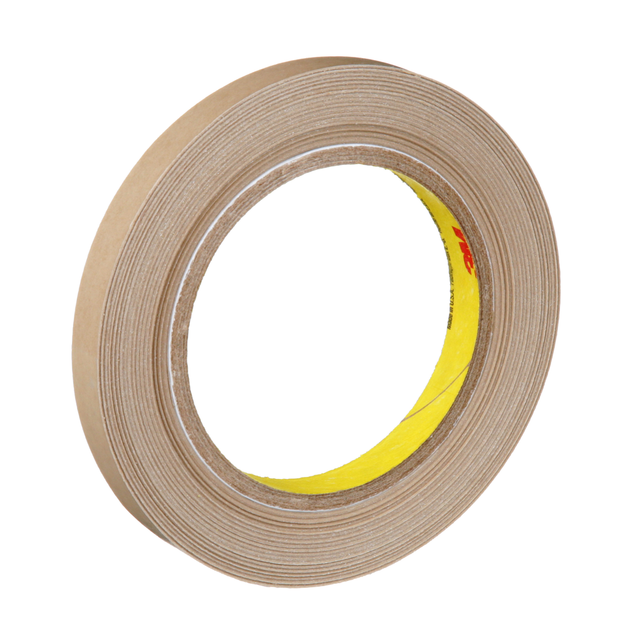

3M™ Electrically Conductive Adhesive Transfer Tape 9703, 1 in x 36 yds, 9 rolls per case Bulk - 7000048555

Sold As: 9-Pack
SKU: 7000048555
MPN: 7000048555
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200840647
3M ID: 70-0061-1976-5
5 Digit UPC: 84064
$1,547.63 ($171.96 / Count)
Hurry up! Current stock:

Product Description

3M™ Electrically Conductive Adhesive Transfer Tape 9703 is a low-outgassing Z-axis electrically conductive pressure sensitive adhesive (CPSA) tape that helps enable devices to meet electromagnetic compatibility requirements. It’s filled with silver conductive particles for interconnection of electronic substrates and can help enable Z-axis interconnects without shorting adjacent circuitry. Featuring high electrical conductivity, this double-sided tape provides low resistance for small contact areas and high frequencies. It provides robust protection against EMI in a range of market segments with low outgassing requirements, especially aerospace and defense.

Features

  • Thermal curing not required
  • Anisotropic Z-axis electrical conductivity
  • Easy to use in assembly operations
  • PSA tack properties
  • Low-outgassing acrylic adhesive
  • Can be applied as die-cut parts or in roll form
Spec Sheet



Downloads

Specifications

Shelf Life24.0 Month
Country of OriginUnited States
Overall Length (Imperial)36.0
Liner MaterialPET
Overall Width (Metric)25.4
Total Tape Thickness without Liner (Metric)0.05
Maximum Operating Temperature (Celsius)85.0 Degree Celsius
Adhesive TypeAcrylic
ApplicationAttaching; Electrostatic Discharge (ESD); Grounding; Interconnecting
Product ColorSilver
Overall Width (Imperial) UOMin
Overall Length (Imperial) UOMyd
Overall Length (Metric)32.918
Total Tape Thickness without Liner (Imperial)2.0
Maximum Operating Temperature (Fahrenheit)185.0 Degree Fahrenheit
Minimum Operating Temperature (Fahrenheit)-40.0 Degree Fahrenheit
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Metric) UOMm
Product UsageCamera Modules; Chassis; Flexible Printed Circuits; Printed Circuit Boards; Sensors
Minimum Operating Temperature (Celsius)-40.0 Degree Celsius
Overall Width (Imperial)1.0
Overall Width (Metric) UOMmm
Electrical ResistanceZ-axis 0.01 Ω
Adhesion Strength (Imperial)907.0
Total Tape Thickness without Liner (Imperial) UOMmil
