3M Products & Supplies

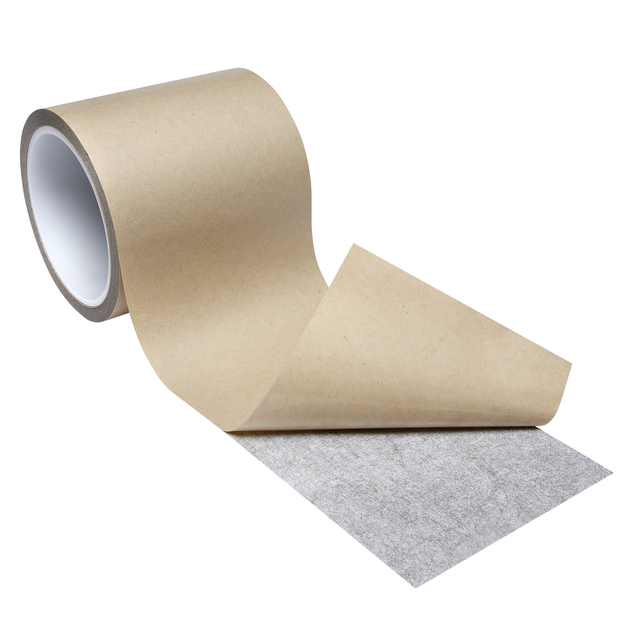

3M™ XYZ-Axis Electrically Conductive Tape 9713, 4 in x 108 yds, 1/Case, Bulk - 7000048869

Sold As: 6-Pack
SKU: 7000048869
MPN: 7000048869
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 50021200432144
3M ID: 70006280153
5 Digit UPC: 43214
$8,847.62 ($1474.60 / Count)
Hurry up! Current stock:

Product Description

3M™ Electrically Conductive Adhesive Transfer Tape 9713 is an XYZ-axis electrically conductive pressure sensitive adhesive (CPSA) tape that helps enable devices to meet electromagnetic compatibility requirements. This double-sided tape has a conductive nickel-coated carbon fiber scrim carrier. It has a good balance of adhesion and conductivity, which is optimal for larger contact areas where high electrical conductivity is not required. This electrically conductive tape can be die cut and offers excellent workability and easy handling. It provides robust protection against EMI in a range of market segments, including consumer electronics, automotive, medical equipment, communications infrastructure, and aerospace and defense electronics.

Features

  • Excellent die-cutting and converting capabilities
  • Can be applied in strips or die cut to specific shapes and sizes
  • Thinner adhesive than 3M™ XYZ-Axis Electrically Conductive Tape 9712
  • Isotropic XYZ-axis electrical conductivity
  • Good contact with both hard and soft surfaces
  • Nickel-plated carbon fiber scrim (a more conductive scrim)
Spec Sheet



Downloads

Specifications

Shelf Life24.0 Month
Country of OriginUnited States
Overall Length (Metric)98.755
Liner MaterialPET
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius)121.0 Degree Celsius
Adhesion Strength (Imperial)1500.0
Overall Length (Imperial)108.0
Total Tape Thickness without Liner (Metric)0.089
Electrical ResistanceZ-axis 1.7 Ω, XY-axis 5 Ω
Backing (Carrier) MaterialNon-woven
Overall Width (Imperial)4.0
Product UsageBond Line Gaps; Chassis; EMI Gaskets; EMI Shields; Flexible Printed Circuits; Printed Circuit Boards; Sensors
Overall Length (Metric) UOMm
Overall Width (Metric) UOMmm
Minimum Operating Temperature (Celsius)-40.0 Degree Celsius
Total Tape Thickness without Liner (Imperial)3.5
Total Tape Thickness without Liner (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)-40.0 Degree Fahrenheit
Overall Width (Metric)101.6
ApplicationAttaching; Electrostatic Discharge (ESD); Grounding; Interconnecting
Overall Length (Imperial) UOMyd
Maximum Operating Temperature (Fahrenheit)250.0 Degree Fahrenheit
Product ColorGray
Total Tape Thickness without Liner (Imperial) UOMmil
Adhesive TypeAcrylic
