3M Products & Supplies

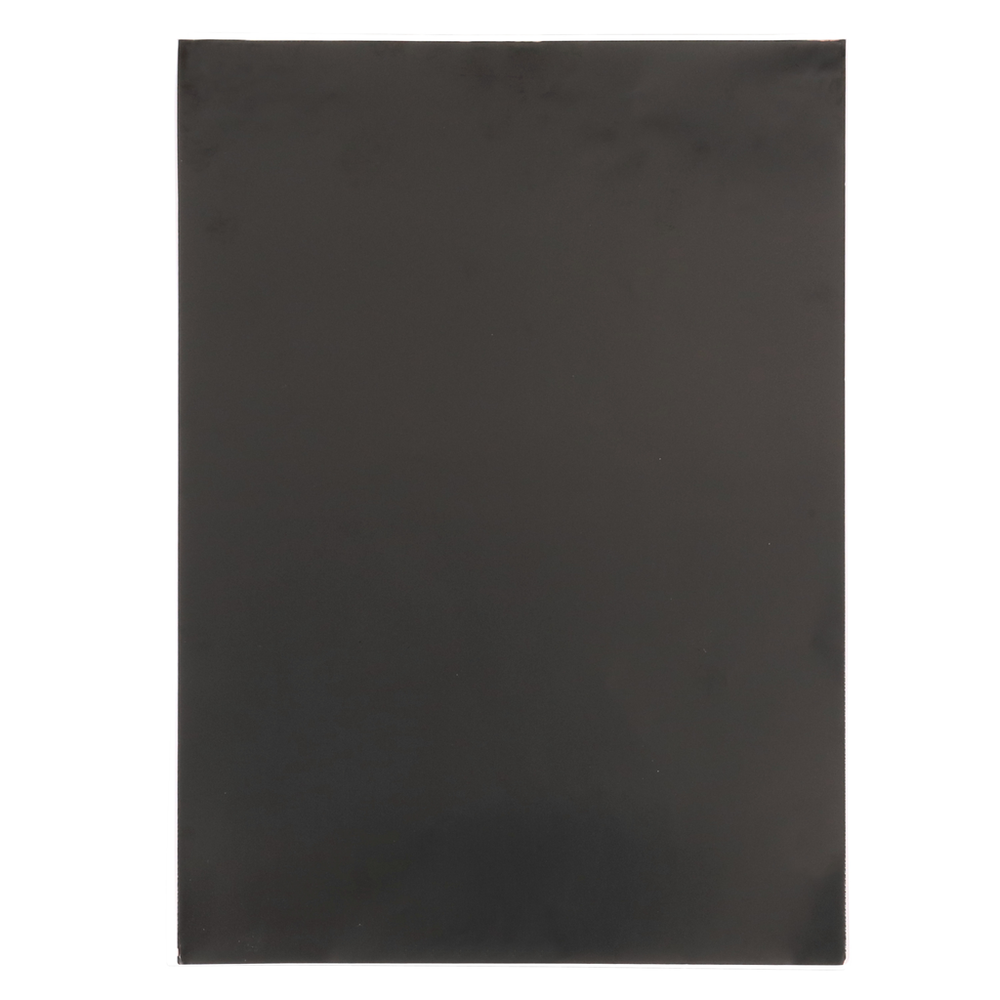

3M™ Electrically Conductive Single-Sided Tape 1020BC-25, Black, 100 mm x 10 m, 8 Rolls/Case - 7100313406

Sold As: 8-Pack
SKU: 7100313406
MPN: 7100313406
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060428097
3M ID: 80001605007
$551.74 ($68.97 / Count)
Hurry up! Current stock:

Product Description

3M™ Electrically Conductive Single-Sided Tape 1020BC Series is an XYZ-axis electrically conductive pressure sensitive adhesive (CPSA) tape that helps enable devices to meet electromagnetic compatibility requirements. It consists of a conductive black copper foil backing, a conductive acrylic adhesive layer and a polyester (PET) release liner. This black copper foil tape provides excellent XYZ-axis-based conductivity, reliable contacts to small-size grounding areas and excellent EMI shielding and electrical reliability over time. The thin profile makes it a great option for applications with less Z-space. It offers high adhesion and good grounding performance to many surface types.

Features

  • Sleek black conductive coating
  • Stiffer copper for improved workability
  • Low electrical resistance
  • Excellent conformability and quick bonding
  • Excellent EMI shielding performance
  • XYZ-axis conductivity
Spec Sheet



Downloads

Specifications

Shelf Life12.0 Month
Country of OriginSouth Korea
Overall Width (Imperial)3.937
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Metric)10.0
Overall Width (Metric) UOMmm
Minimum Operating Temperature (Celsius)-40.0 Degree Celsius
Minimum Operating Temperature (Fahrenheit)-40.0 Degree Fahrenheit
Overall Length (Imperial)10.936
Overall Length (Metric) UOMm
Liner MaterialPET
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Imperial)0.984
Product UsageCamera Modules; Display Chip on Flex; Display Wraps; EMI Shields; Printed Circuit Boards; Sensors
Electrical ResistanceXY-axis 0.015 Ω, Z-axis 0.1 Ω
Total Tape Thickness without Liner (Imperial) UOMmil
Product ColorBlack
ApplicationEMI Shielding; Passive Intermodulation (PIM) Management
Backing (Carrier) MaterialCopper Foil
Overall Width (Imperial) UOMin
Adhesive TypeAcrylic
Adhesion Strength (Imperial)1300.0
Overall Width (Metric)100.0
Maximum Operating Temperature (Celsius)121.0 Degree Celsius
Maximum Operating Temperature (Fahrenheit)250.0 Degree Fahrenheit
Total Tape Thickness without Liner (Metric)0.025
