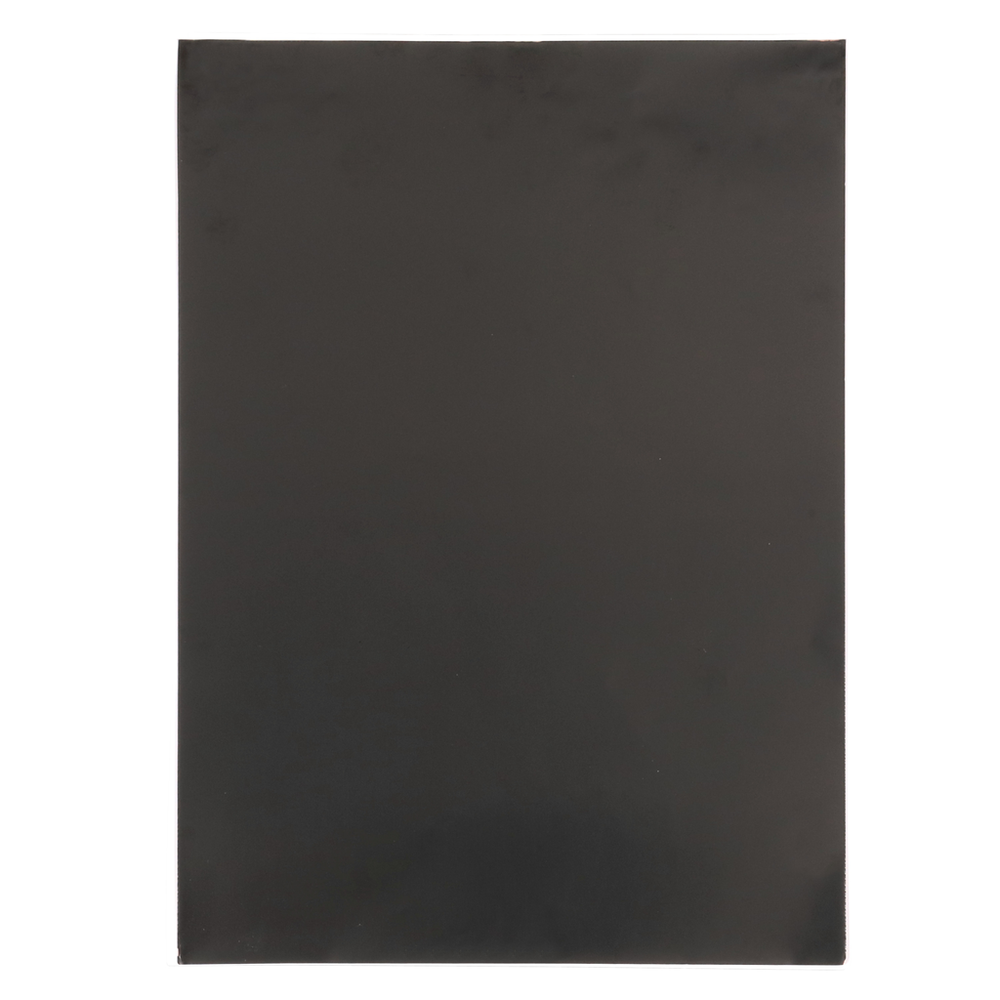

3M™ Electrically Conductive Single-Sided Tape 1020BC-25, Black, 500mm x 100m x 0.025mm - 7100221340

SKU: 7100221340
MPN: 7100221340
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051111908648
3M ID: WX300953139
5 Digit UPC: 90864
$2,501.54 each
Hurry up! Current stock:

Product Description

3M™ Electrically Conductive Single-Sided Tape 1020BC Series is an XYZ-axis electrically conductive pressure sensitive adhesive (CPSA) tape that helps enable devices to meet electromagnetic compatibility requirements. It consists of a conductive black copper foil backing, a conductive acrylic adhesive layer and a polyester (PET) release liner. This black copper foil tape provides excellent XYZ-axis-based conductivity, reliable contacts to small-size grounding areas and excellent EMI shielding and electrical reliability over time. The thin profile makes it a great option for applications with less Z-space. It offers high adhesion and good grounding performance to many surface types.

Features

  • Excellent EMI shielding performance
  • XYZ-axis conductivity
  • Excellent conformability and quick bonding
  • Stiffer copper for improved workability
  • Low electrical resistance
  • Sleek black conductive coating
Spec Sheet



Downloads

Specifications

Shelf Life12.0 Month
Country of OriginSouth Korea
ApplicationEMI Shielding; Passive Intermodulation (PIM) Management
Overall Width (Imperial)19.685
Total Tape Thickness without Liner (Metric)0.025
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) MaterialCopper Foil
Minimum Operating Temperature (Celsius)-40.0 Degree Celsius
Total Tape Thickness without Liner (Imperial)0.984
Maximum Operating Temperature (Fahrenheit)250.0 Degree Fahrenheit
Electrical ResistanceXY-axis 0.015 Ω, Z-axis 0.1 Ω
Overall Width (Metric)500.0
Overall Length (Metric)100.0
Product UsageCamera Modules; Display Chip on Flex; Display Wraps; EMI Shields; Printed Circuit Boards; Sensors
Overall Width (Imperial) UOMin
Overall Width (Metric) UOMmm
Liner MaterialPET
Minimum Operating Temperature (Fahrenheit)-40.0 Degree Fahrenheit
Overall Length (Imperial)109.361
Total Tape Thickness without Liner (Metric) UOMmm
Adhesion Strength (Imperial)1300.0
Product ColorBlack
Overall Length (Metric) UOMm
Adhesive TypeAcrylic
Maximum Operating Temperature (Celsius)121.0 Degree Celsius
