3M Products & Supplies

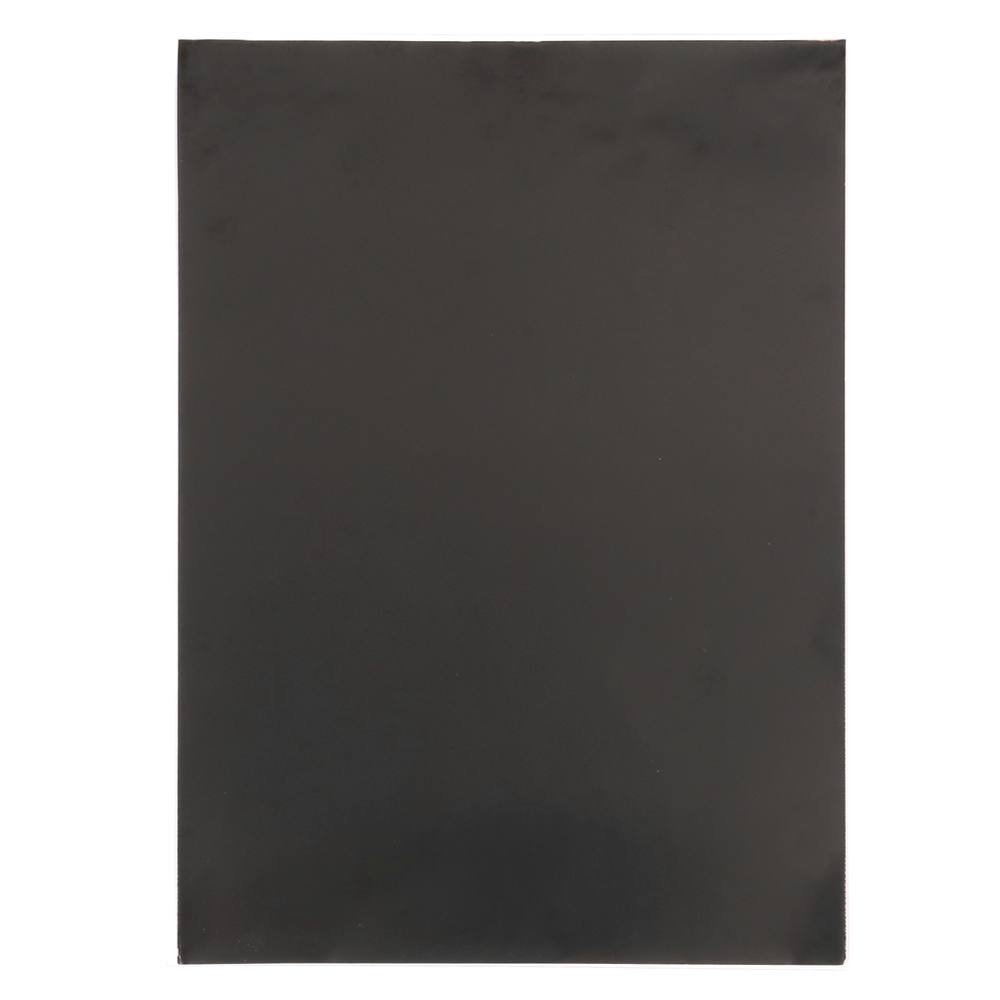

3M™ Electrically Conductive Single-Sided Tape 1020BC-25G1, 500MM X 100M, 1 Roll/Case - 7100395618

SKU: 7100395618
MPN: 7100395618
Made to Order: For a lead time estimate, please send your request to [email protected]
3M ID: XN400574630
$4,103.53 each
Hurry up! Current stock:

Product Description

3M™ Electrically Conductive Single-Sided Tape 1020BC Series is an XYZ-axis electrically conductive pressure sensitive adhesive (CPSA) tape that helps enable devices to meet electromagnetic compatibility requirements. It consists of a conductive black copper foil backing, a conductive acrylic adhesive layer and a polyester (PET) release liner. This black copper foil tape provides excellent XYZ-axis-based conductivity, reliable contacts to small-size grounding areas and excellent EMI shielding and electrical reliability over time. The thin profile makes it a great option for applications with less Z-space. It offers high adhesion and good grounding performance to many surface types.

Features

  • Excellent EMI shielding performance
  • Low electrical resistance
  • Stiffer copper for improved workability
  • XYZ-axis conductivity
  • Sleek black conductive coating
  • Excellent conformability and quick bonding
Spec Sheet



Downloads

Specifications

Shelf Life12.0 Month
Adhesive TypeAcrylic
Maximum Operating Temperature (Fahrenheit)250.0 Degree Fahrenheit
Product UsageCamera Modules; Display Chip on Flex; Display Wraps; EMI Shields; Printed Circuit Boards; Sensors
Overall Length (Imperial)109.361
Minimum Operating Temperature (Celsius)-40.0 Degree Celsius
Minimum Operating Temperature (Fahrenheit)-40.0 Degree Fahrenheit
Maximum Operating Temperature (Celsius)121.0 Degree Celsius
Overall Length (Metric)100.0
Product ColorBlack
Country of OriginSouth Korea
Liner MaterialPET
Overall Width (Metric) UOMmm
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Imperial) UOMmil
Electrical ResistanceXY-axis 0.015 Ω, Z-axis 0.1 Ω
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Imperial)0.98
Total Tape Thickness without Liner (Metric)0.025
ApplicationEMI Shielding; Passive Intermodulation (PIM) Management
Backing (Carrier) MaterialCopper Foil
Overall Width (Imperial)19.685
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric)500.0
