3M Products & Supplies

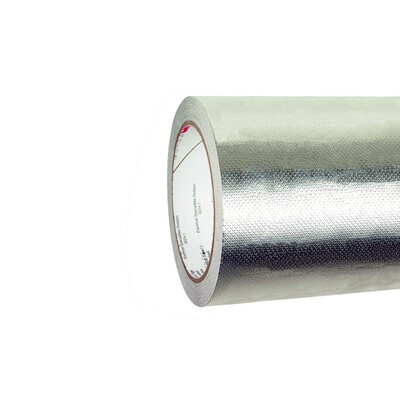

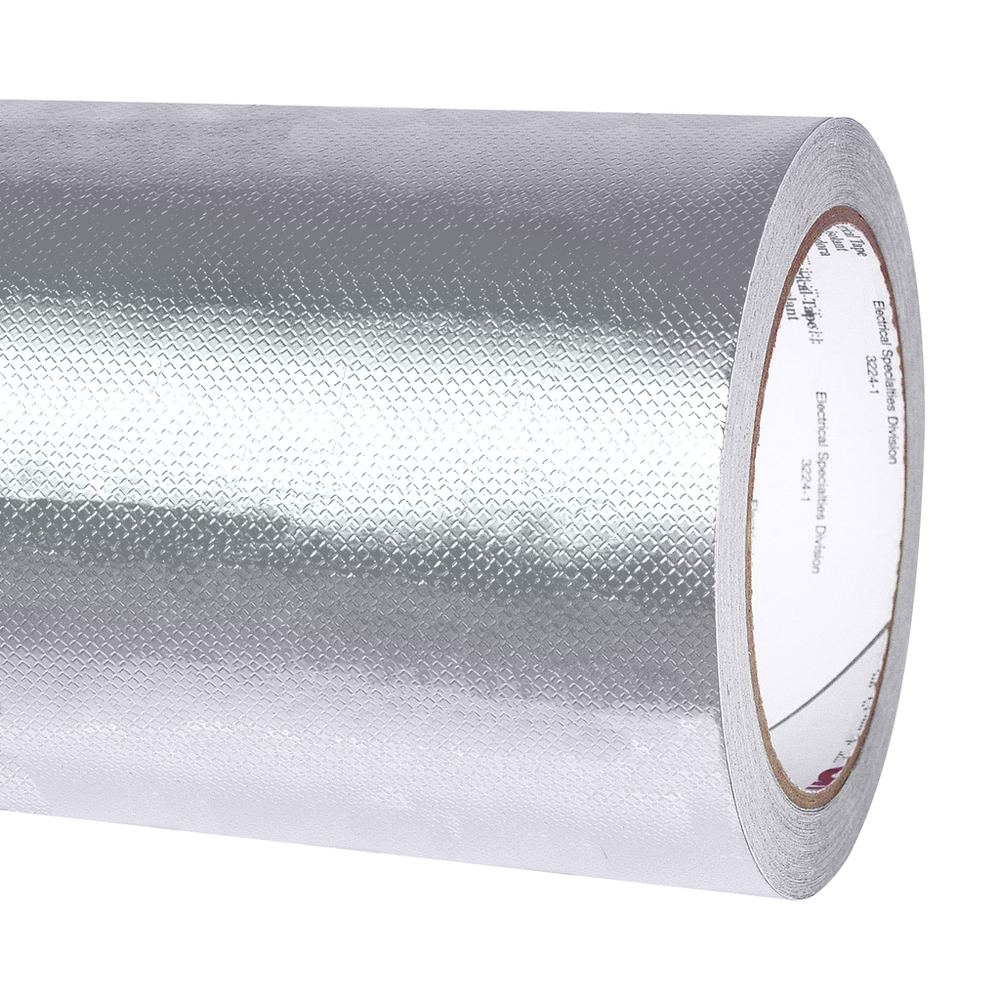

3M™ Embossed Tin-Plated Copper Foil EMI Shielding Tape 1345, 19 mm x 16,5 m, Log Roll, 1 Roll/Case - 7100017356

SKU: 7100017356
MPN: 7100017356
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007478379
3M ID: 80610567077
5 Digit UPC: 47837
$1,777.23 each
Hurry up! Current stock:

Product Description

3M™ Embossed Tin Plated Copper EMI Shielding Tape 1345 is an EMI shielding tape with an acrylic adhesive. This flame retardant tape is designed for applications that require outstanding electrical conductivity from the application substrate through the adhesive to the backing. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.

Features

  • Offers outstanding solderability with tin-plated coating
  • Offers stable contact resistance and good shielding effectiveness
  • Embossed backing cuts through the layer of adhesive for establishing contact between the backing and the application substrate
  • Embossed, copper foil backing resists discoloration and oxidation
  • Withstands a wide temperature range of -40 to 266 °F (-40 to 130 °C)
  • Flame-retardant and suitable for grounding and EMI shielding in equipment, components and shielded rooms

Specifications

Shelf Life1825
Country of OriginTaiwan
Total Tape Thickness without Liner (Metric) UOMmm
Specifications MetRoHS 2011/65/EU, UL 510, UL Listed, UL Recognized
Tensile Strength (Metric) UOMN/cm
Backing (Carrier) Thickness (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Shelf Life UOMYear
Adhesive TypeAcrylic
Overall Width (Imperial) UOMin
Elongation at Break100
Backing (Carrier) Thickness (Imperial)1.4
Maximum Operating Temperature (Celsius)130.0
Backing (Carrier) Thickness (Imperial) UOMmil
Tensile Strength (Metric)44.0
Tape GradeProfessional
Total Tape Thickness without Liner (Metric)0.1016
Backing (Carrier) MaterialTin Plate Copper Foil, Embossed
MaterialEmbossed Tin Plated Copper Foil
Product ColorTin
Overall Width (Metric)19.0
Overall Width (Imperial)0.75
ApplicationShielding
Product MarketsElectrical Equipment Manufacturing
Overall Width (Metric) UOMmm
Backing (Carrier) Thickness (Metric)0.035
