3M Products & Supplies

3M™ EMI Copper Foil Shielding Tape 1182, 1/2 in x 18 yd (12.70 mm x 16.5 m), Double Coated, 18 per case - 7100081931

Sold As: 18-Pack
SKU: 7100081931
MPN: 7100081931
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138492373
3M ID: 80610878342
5 Digit UPC: 49237
$939.39 ($52.19 / Count)
Hurry up! Current stock:

Product Description

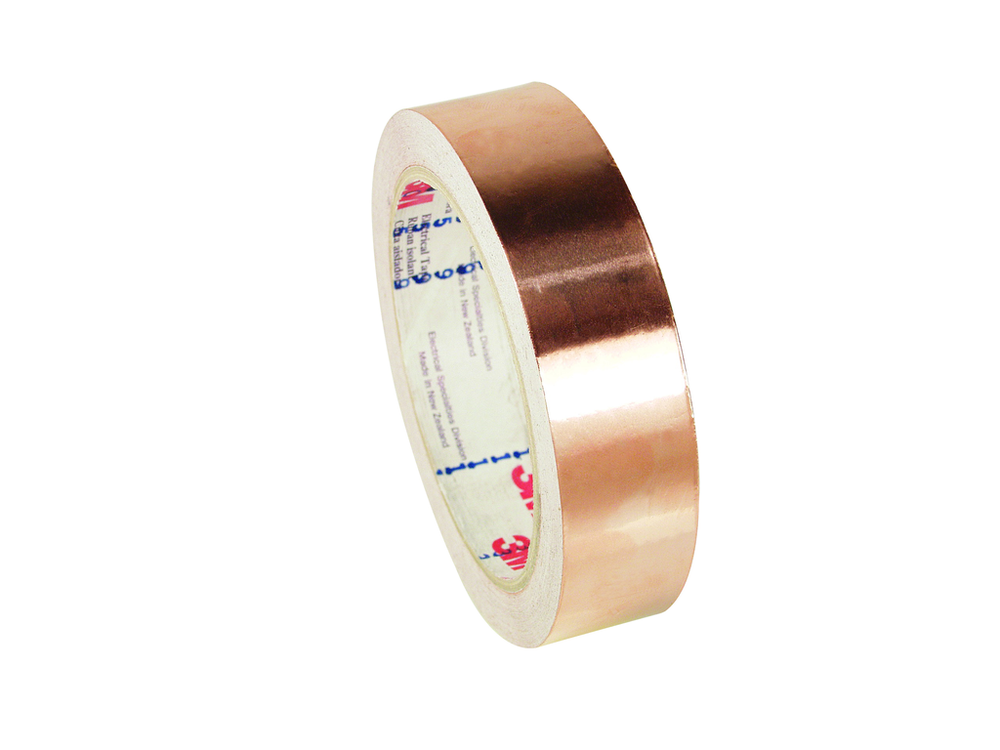

3M™ Copper Foil EMI Shielding Tape 1182 is a 3.5 mil thick acrylic adhesive shielding tape. This flame retardant tape is designed to bond 2 surfaces together physically and electrically. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.

Features

  • Suitable for bonding 2 surfaces together physically and electrically
  • Unique adhesive creates secure contact with the application surface
  • Rated for 600V applications
  • Flame-retardant
  • UL Listed and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginTaiwan
Overall Length (Imperial)18.0
Tape GradeProfessional
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric) UOMmm
Adhesive TypeAcrylic
Maximum Operating Temperature (Celsius)130.0
Total Tape Thickness without Liner (Metric) UOMmm
Elongation at Break5
Overall Length (Metric) UOMm
Backing (Carrier) Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Imperial)1.6
MaterialCopper Foil
Backing (Carrier) Thickness (Metric)0.04
Tensile Strength (Metric)44.0
Product ColorCopper
Product MarketsElectrical Equipment Manufacturing
Tensile Strength (Metric) UOMN/cm
Specifications MetRoHS 2011/65/EU, UL 510, UL Listed, UL Recognized
Overall Width (Imperial)0.5
Backing (Carrier) MaterialCopper Foil, Flat
Overall Length (Imperial) UOMyd
Overall Width (Metric)12.7
Shelf Life UOMYear
Overall Length (Metric)16.5
Total Tape Thickness without Liner (Metric)0.0889
