3M Products & Supplies

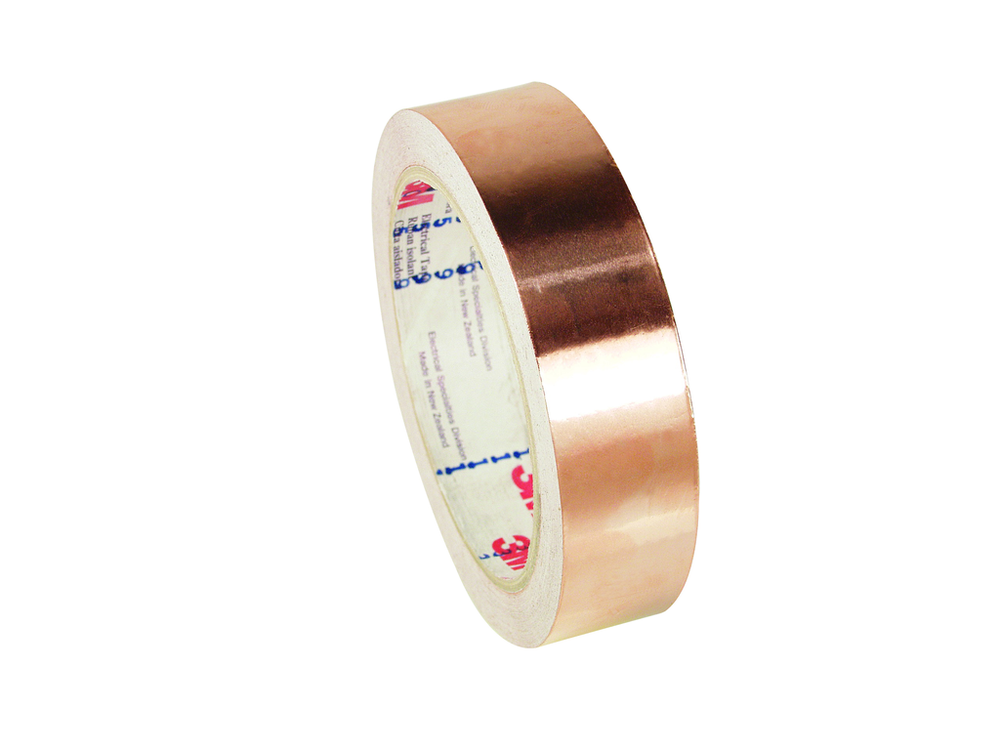

3M™ EMI Copper Foil Shielding Tape 1182, 1 in x 18 yd (25.40 mm x 16.5 m), Double Coated, 9 per case - 7000132697

Sold As: 9-Pack
SKU: 7000132697
MPN: 7000132697
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138493653
3M ID: 80610875926
5 Digit UPC: 49365
$939.86 ($104.43 / Count)
Hurry up! Current stock:

Product Description

3M™ Copper Foil EMI Shielding Tape 1182 is a 3.5 mil thick acrylic adhesive shielding tape. This flame retardant tape is designed to bond 2 surfaces together physically and electrically. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.

Features

  • Suitable for bonding 2 surfaces together physically and electrically
  • Unique adhesive creates secure contact with the application surface
  • UL Listed and RoHS 2011/65/EU Compliant
  • Rated for 600V applications
  • Flame-retardant
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginTaiwan
Backing (Carrier) MaterialCopper Foil, Flat
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)18.0
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Metric)0.0889
Overall Width (Imperial)1.0
Backing (Carrier) Thickness (Imperial) UOMmil
Tape GradeProfessional
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Metric) UOMm
Backing (Carrier) Thickness (Metric) UOMmm
Elongation at Break5
Product MarketsElectrical Equipment Manufacturing
Maximum Operating Temperature (Celsius)130.0
Backing (Carrier) Thickness (Metric)0.04
Overall Width (Metric) UOMmm
Overall Width (Imperial) UOMin
Adhesive TypeAcrylic
Overall Length (Metric)16.5
MaterialCopper Foil
Product ColorCopper
Overall Width (Metric)25.4
Shelf Life UOMYear
Tensile Strength (Metric)44.0
Backing (Carrier) Thickness (Imperial)1.6
Specifications MetRoHS 2011/65/EU, UL 510, UL Listed, UL Recognized
Tensile Strength (Metric) UOMN/cm
