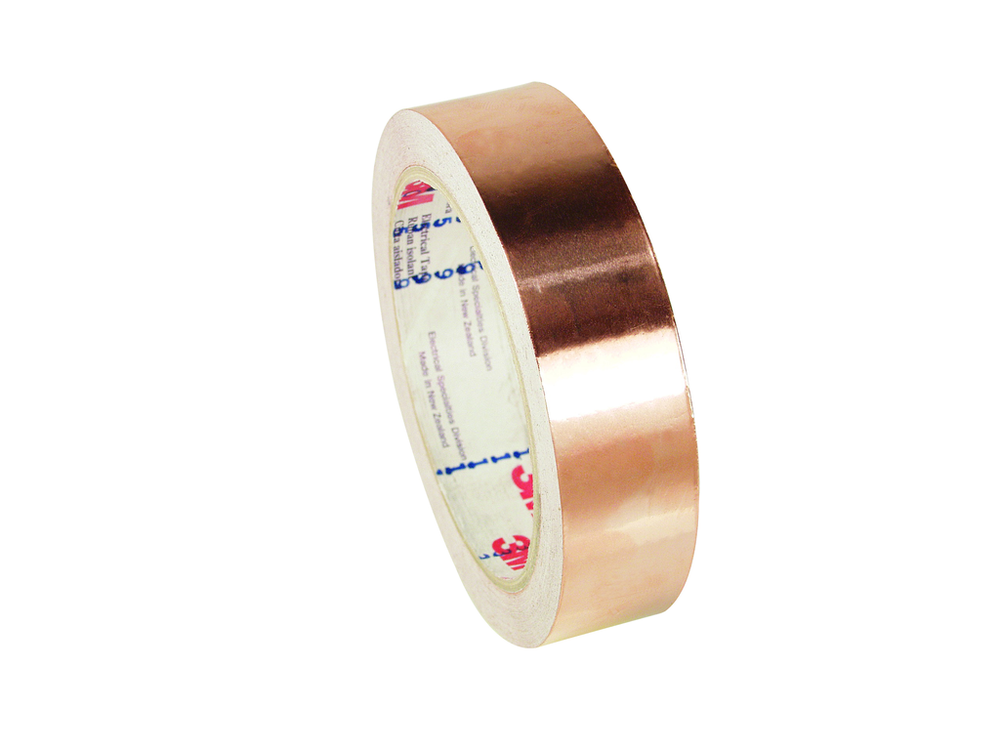

3M™ EMI Copper Foil Shielding Tape 1182, 1/4 in x 18 yd (6.35 mm x 16.5 m), Double Coated, 36 per case - 7100081932

Sold As: 36-Pack
SKU: 7100081932
MPN: 7100081932
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138498788
3M ID: 80610884555
5 Digit UPC: 49878
$941.00 ($26.14 / Count)
Hurry up! Current stock:

Product Description

3M™ Copper Foil EMI Shielding Tape 1182 is a 3.5 mil thick acrylic adhesive shielding tape. This flame retardant tape is designed to bond 2 surfaces together physically and electrically. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.

Features

  • Rated for 600V applications
  • UL Listed and RoHS 2011/65/EU Compliant
  • Suitable for bonding 2 surfaces together physically and electrically
  • Flame-retardant
  • Unique adhesive creates secure contact with the application surface
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginTaiwan
Tensile Strength (Metric) UOMN/cm
MaterialCopper Foil
Shelf Life UOMYear
Total Tape Thickness without Liner (Metric)0.0889
Maximum Operating Temperature (Celsius) UOMDegree
Adhesive TypeAcrylic
Overall Width (Metric) UOMmm
Overall Length (Metric)16.5
Backing (Carrier) Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Imperial)3.5
Overall Width (Imperial) UOMin
Elongation at Break5
Tensile Strength (Metric)44.0
Backing (Carrier) Thickness (Imperial) UOMmil
Maximum Operating Temperature (Celsius)130.0
Product MarketsElectrical Equipment Manufacturing
Specifications MetRoHS 2011/65/EU, UL 510, UL Listed, UL Recognized
Tape GradeProfessional
Overall Width (Imperial)0.25
Backing (Carrier) Thickness (Metric)0.089
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Imperial)18.0
Product ColorCopper
Overall Length (Metric) UOMm
Overall Width (Metric)6.35
Overall Length (Imperial) UOMyd
Backing (Carrier) MaterialCopper Foil, Flat
