3M Products & Supplies

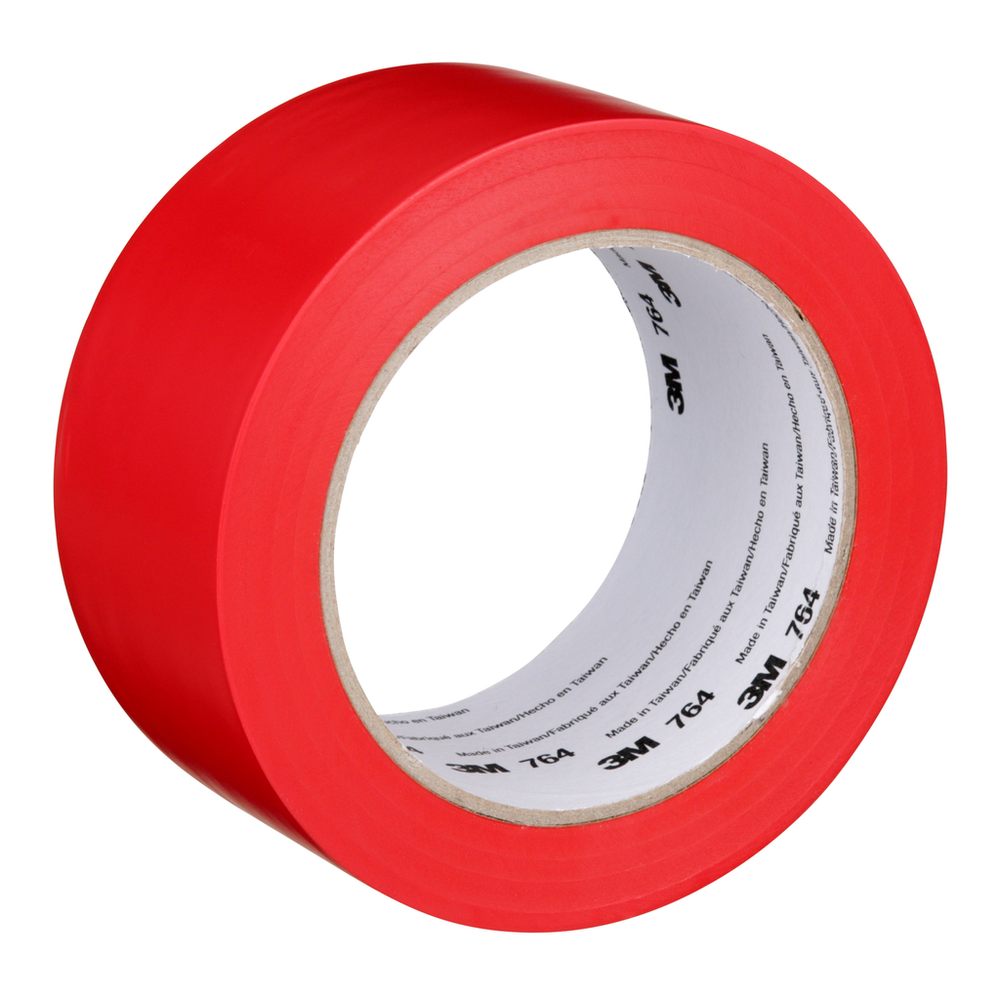

3M™ General Purpose Vinyl Tape 764, Red, 2 in x 36 yd, 5 mil, 24 Roll/Case, Individually Wrapped Conveniently Packaged - 7000042793

Sold As: 24-Pack
SKU: 7000042793
MPN: 7000042793
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00021200434259
3M ID: 70006281714
5 Digit UPC: 43425
$202.22 ($8.43 / Count)
Hurry up! Current stock:

Product Description

3M™ General Purpose Vinyl and Hazard Marking Tapes 764 are the cost-effective choice for a variety of safety marking and color coding applications where you don’t see tough conditions or the need for long term clean removal. Conformability, instant adhesion and easy unwind make these tapes ideal for marking equipment, walls and pipes. Designed with unique stretch properties, this vinyl tape conforms to rough, irregular, curved and convex surfaces while remaining stretched and without lifting after application. The rubber adhesive offers quick stick and excellent holding strength on many substrates. It also maintains its color when exposed to abrasion, wear and many solvents. Using 3M™ Vinyl 764 Tape is a faster, more versatile and less costly option than painting, which often requires ventilation and time-consuming prep and clean-up processes. Recommended applications include floor marking; general purpose holding and bundling; color coding; marking of parts or machines; temporary protection of parts, equipment or products from abrasion; and decorating.

Features

  • TAPE YOUR WAY: This tape establishes a powerful bond whether you apply it by hand or with the 3M™ Lane Marking Applicator M1
  • INSTANT ADHESION: Rubber adhesive bonds immediately to a variety of surfaces
  • ECONOMICAL FLOOR MARKING: Cost-effective option for color coding and safety marking applications
  • HIGH CONFORMABILITY: Strong, flexible backing is ideal for use on curved and irregular surfaces
  • VIVID COLOR: A wide variety of colors helps markup floors and protect surfaces with color-coded efficiency
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginTaiwan
Overall Length (Metric)32.9
Overall Height (Imperial)5.0
Units per Case24.0
Adhesion Strength (Metric) UOMN/100mm
Backing Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Metric) UOMmm
Overall Height (Metric) UOMmm
Backing Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial)5.2
Elongation at Break1.8%
Adhesive MaterialRubber
Overall Width (Metric)50.8
Back Side Adhesive Thickness (Metric)0.1
Backing Thickness (Metric)0.1
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)36.0
Backing Thickness (Imperial)4.0
ApplicationGeneral Use Vinyl
Backing (Carrier) MaterialPVC
Units per Case UOMRoll
Overall Thickness (Imperial) UOMmil
Product FormRoll
Minimum Operating Temperature (Fahrenheit)60.0
Minimum Operating Temperature (Celsius) UOMDegree
Product ColorRed
Total Tape Thickness without Liner (Imperial) UOMmil
Shelf Life in Months (From Date of Manufacture) UOMMonths
Overall Width (Metric) UOMmm
IndustriesAutomotive, General Industrial, MRO, Military and Government, Specialty Vehicles, Transportation
Maximum Operating Temperature (Celsius) UOMDegree
Adhesion Strength (Metric)21.0
Tensile Strength (Imperial) UOMlb/in
Overall Length (Imperial) UOMyd
Tensile Strength (Metric) UOMN/100mm
Overall Height (Imperial) UOMmil
Maximum Operating Temperature (Celsius)29.0
Minimum Operating Temperature (Celsius)16.0
Overall Width (Imperial)2.0
Overall Height (Metric)0.1
Tensile Strength (Imperial)13.0
Backing MaterialVinyl
Maximum Operating Temperature (Fahrenheit)85.0
Overall Width (Imperial) UOMin
Overall Length (Metric) UOMm
Adhesive TypeRubber
Adhesion Strength18.0
Back Side Adhesive Thickness (Metric) UOMmm
Shelf Life in Months (From Date of Manufacture)18.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Thickness (Imperial)5.0
Total Tape Thickness without Liner (Metric)0.127
Tensile Strength (Metric)228.0
