3M Products & Supplies

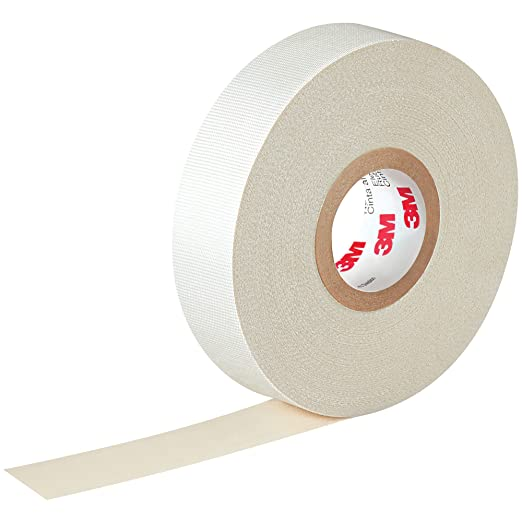

3M™ Glass Cloth Electrical Tape 27, White, Rubber Thermosetting Adhesive, 2 in x 60 yd (48,8 mm x 55 m), 20/case - 7000132172

Sold As: 20-Pack
SKU: 7000132172
MPN: 7000132172
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007274797
3M ID: 80012020162
5 Digit UPC: 27479
$2,026.84 ($101.34 / Count)
Hurry up! Current stock:

Product Description

3M™ Glass Cloth Electrical Tape 27 is a 0.18 mm (7 mil) woven insulating tape with pressure sensitive rubber thermosetting adhesive. This tape is designed to operate in 600 volt dry applications requiring high mechanical strength and resistance to high temperatures. The adhesive is specially designed and prepared to provide corrosion protection.

Features

  • Adhesive is specially designed and prepared to provide corrosion protection
  • For use as a coil cover, anchor, banding and core, layer and crossover insulation
  • Designed to operate in 600 volt dry applications requiring high mechanical strength and resistance to high temperatures
  • Printable
  • Edge-tear resistant, conformable, and abrasion resistant
  • 0.18 mm (7-mil) woven insulating glass cloth tape with pressure-sensitive rubber thermosetting adhesive
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Minimum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Metric)0.127
Product MarketsElectrical Construction
Total Tape Thickness without Liner (Imperial) UOMmil
Elongation at Break5
Maximum Operating Temperature (Fahrenheit)302.0
Minimum Operating Temperature (Celsius)0.0
Overall Width (Imperial)2.0
Product ColorWhite
Dielectric Strength UOMV
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) Thickness (Imperial)5.0
Overall Length (Imperial)60.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial) UOMyd
Shelf Life UOMYear
Specifications MetCSA Certified, RoHS 2011/65/EU, UL Recognized
ApplicationElectrical Maintenance; Insulation
Total Tape Thickness without Liner (Metric)0.178
Overall Width (Metric)50.8
Backing (Carrier) MaterialGlass Cloth
Maximum Operating Temperature (Celsius)150.0
Units per Case12.0
Minimum Operating Temperature (Fahrenheit)32.0
Overall Width (Metric) UOMmm
Overall Length (Metric)55.0
Adhesive TypeRubber
Backing (Carrier) Thickness (Imperial) UOMmil
Tape GradeProfessional
Electrolytic Corrosion Factor0.9
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Imperial)7.0
Backing (Carrier) Thickness (Metric) UOMmm
Dielectric Strength2725.0
Insulation Resistance5 x 10^1 megohms
Overall Length (Metric) UOMm
