3M Products & Supplies

3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-3000, 600-1250 kcmil, Expanded/Recovered I.D. 3.00/1.00 in, 48 in Length, 20/case - 7000132164

Sold As: 20-Pack
SKU: 7000132164
MPN: 7000132164
For an accurate lead time please contact us
UPC: 00054007089803
3M ID: 80008007348
5 Digit UPC: 8980
$2,005.88 ($100.29 / Count)
Hurry up! Current stock:

Product Description

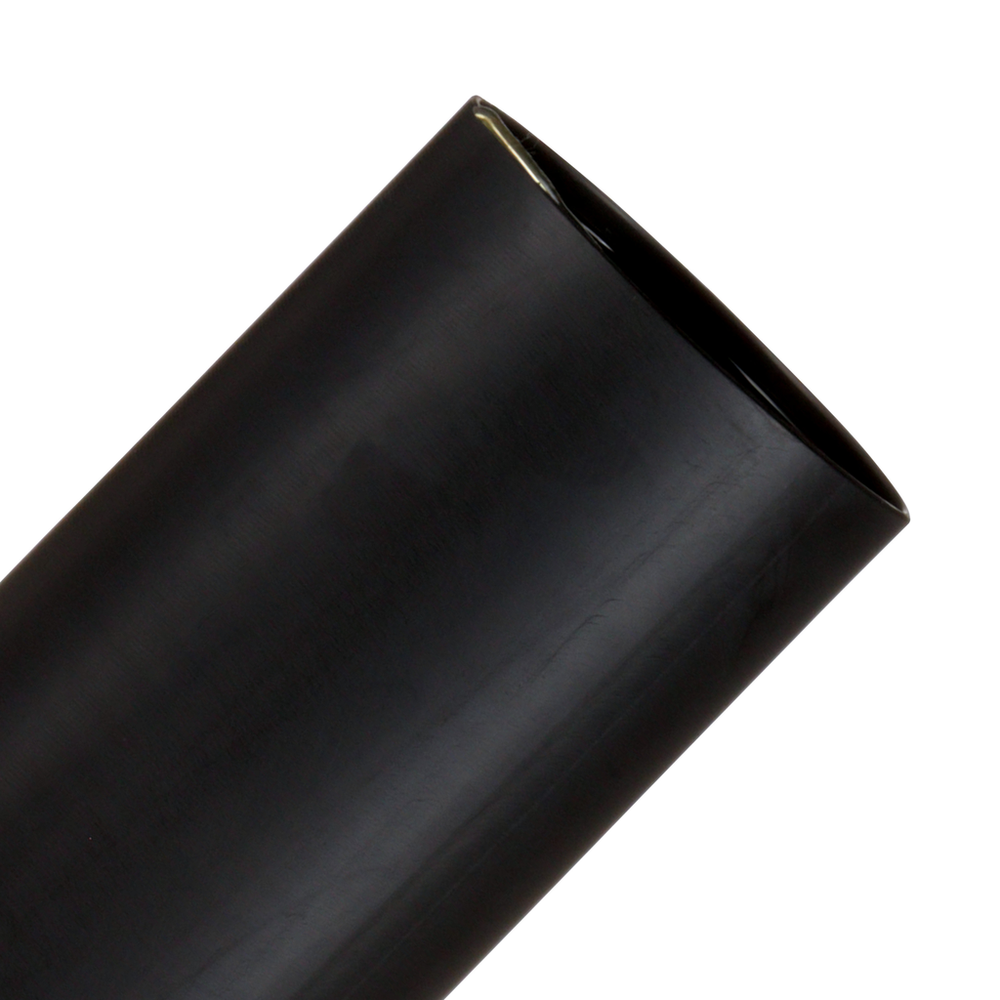

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Features

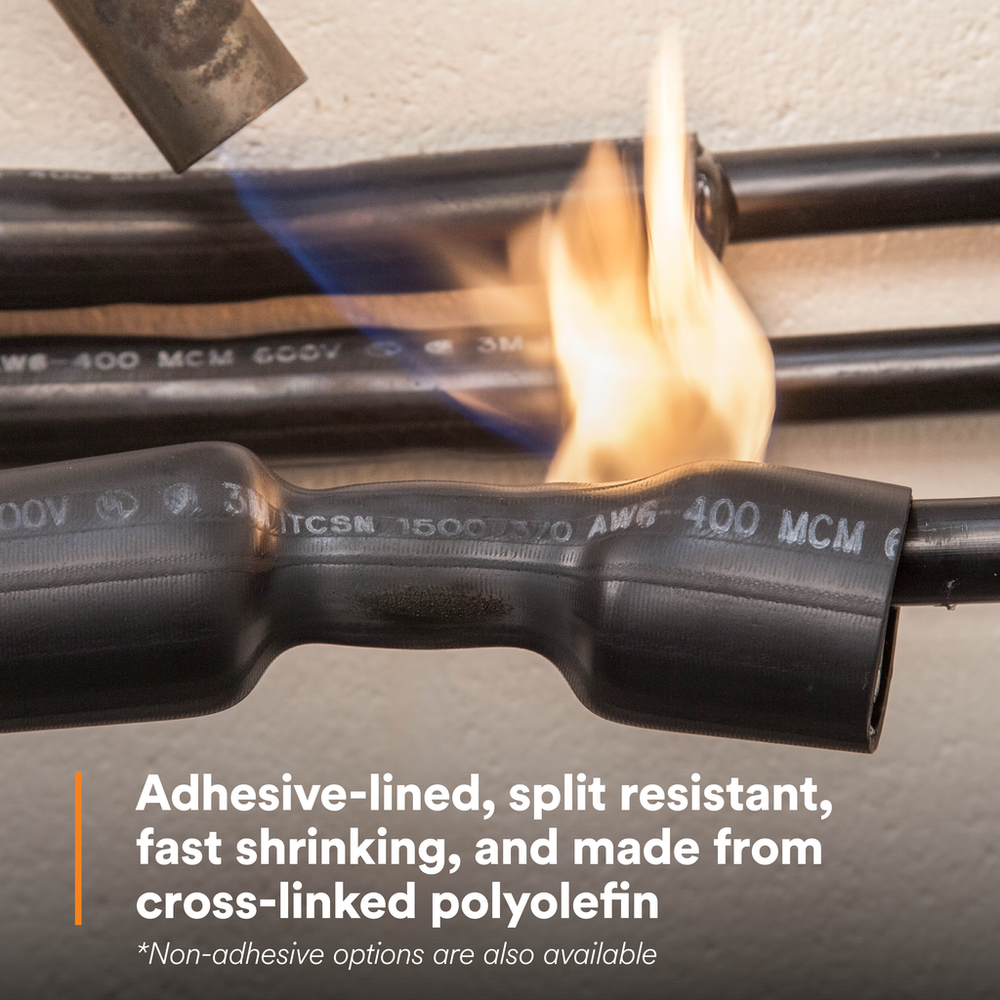

  • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
  • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
  • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
  • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)

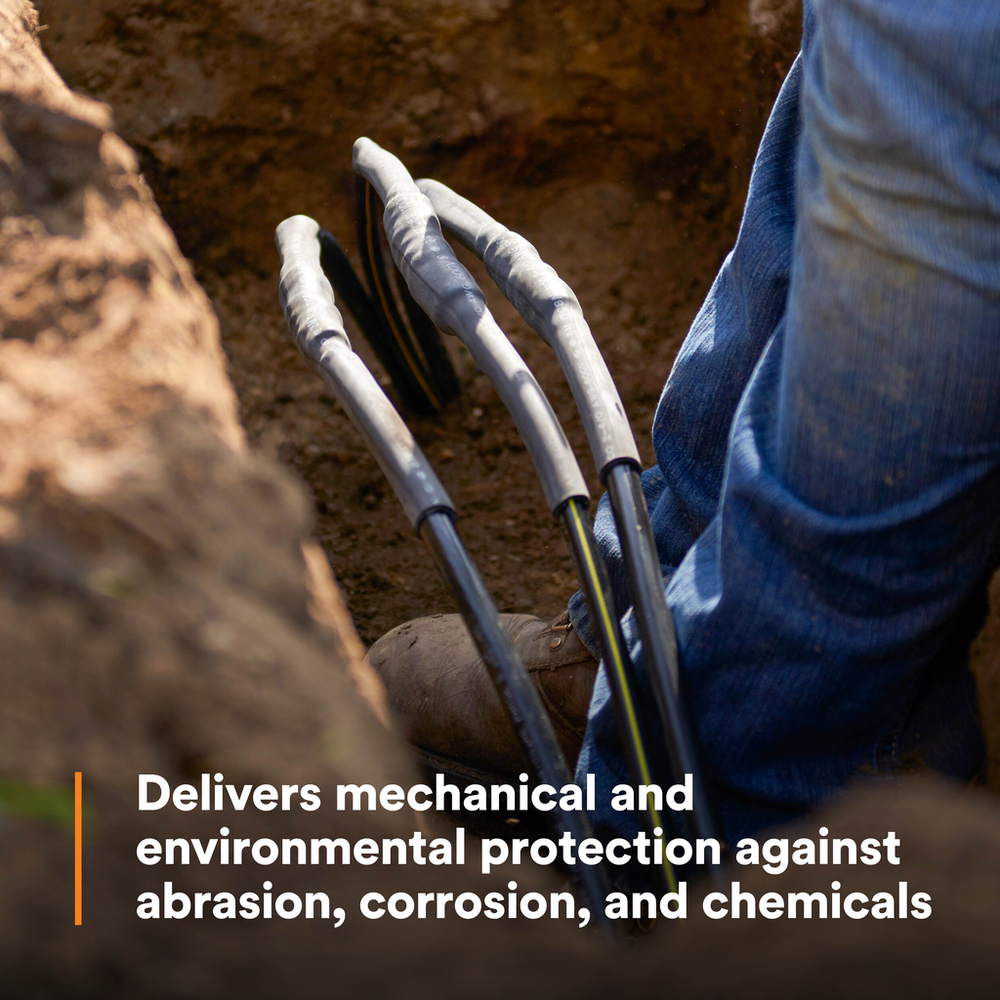

  • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit) UOMDegree
Non-CorrosiveYes
Inner Diameter Before Shrink (Imperial)3.0
Inner Diameter After Shrink (Metric) UOMcm²
Splice ConfigurationHeat Shrink Heavy-Wall Cable Sleeve (ITCSN)
Specifications MetUL 486D*
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Metric) UOMmm
UL File NumberE-102356
Inner Diameter After Shrink (Imperial)1.0
Dielectric Strength (V/mil)500 V/mil
Product FormSleeve-roll
Adhesive LinedYes
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Metric) UOMcm²
Tubing TypeHeavy Wall
Maximum Operating Temperature (Celsius)100.0
Maximum Operating Temperature (Celsius) UomDegree
Maximum Conductor Size (Metric)633.4 mm²
Minimum Expanded Tubing I. D.3.0
Inner Diameter After Shrink (Imperial) UOMin
Minimum Expanded Tubing I. D. UOMin
Units per Case20.0
Maximum Conductor Size (Imperial)1250 kcmil
Mil SpecAMS-DTL-23053/15,Class 1
Overall Length (Imperial)48.0
Product ColorBlack
Inner Diameter Before Shrink (Metric)7.62
Direct BuryNo
MaterialPolyolefin
Elongation UOM%
Inner Diameter After Shrink (Metric)2.54
Overall Length (Imperial) UOMin
Shrink Ratio3:1
Maximum Operating Temperature (Fahrenheit)230.0
Minimum Conductor Size (Imperial)600 kcmil
Splice TypeHeat Shrink
Overall Length (Metric)1219.0
Flame RetardantNo
Product TypeSleeve
Minimum Conductor Size (Metric)300 mm²
