3M Products & Supplies

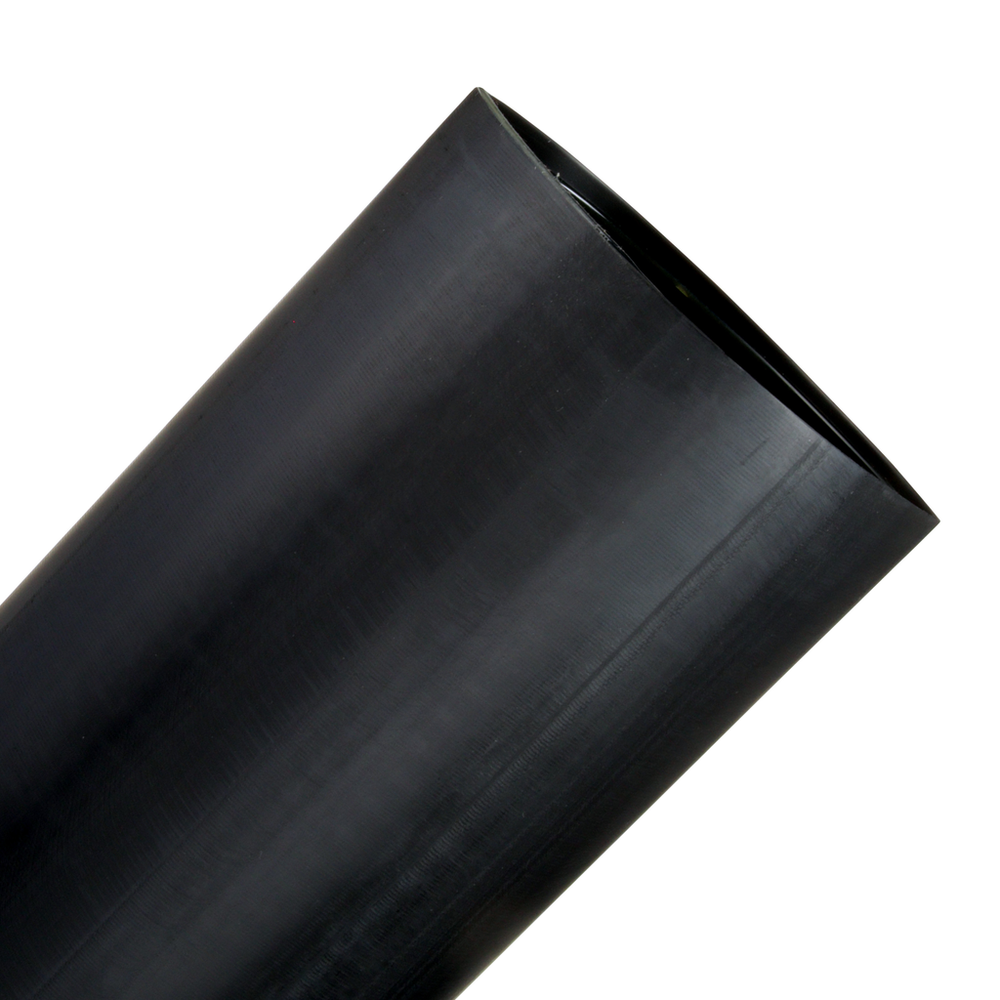

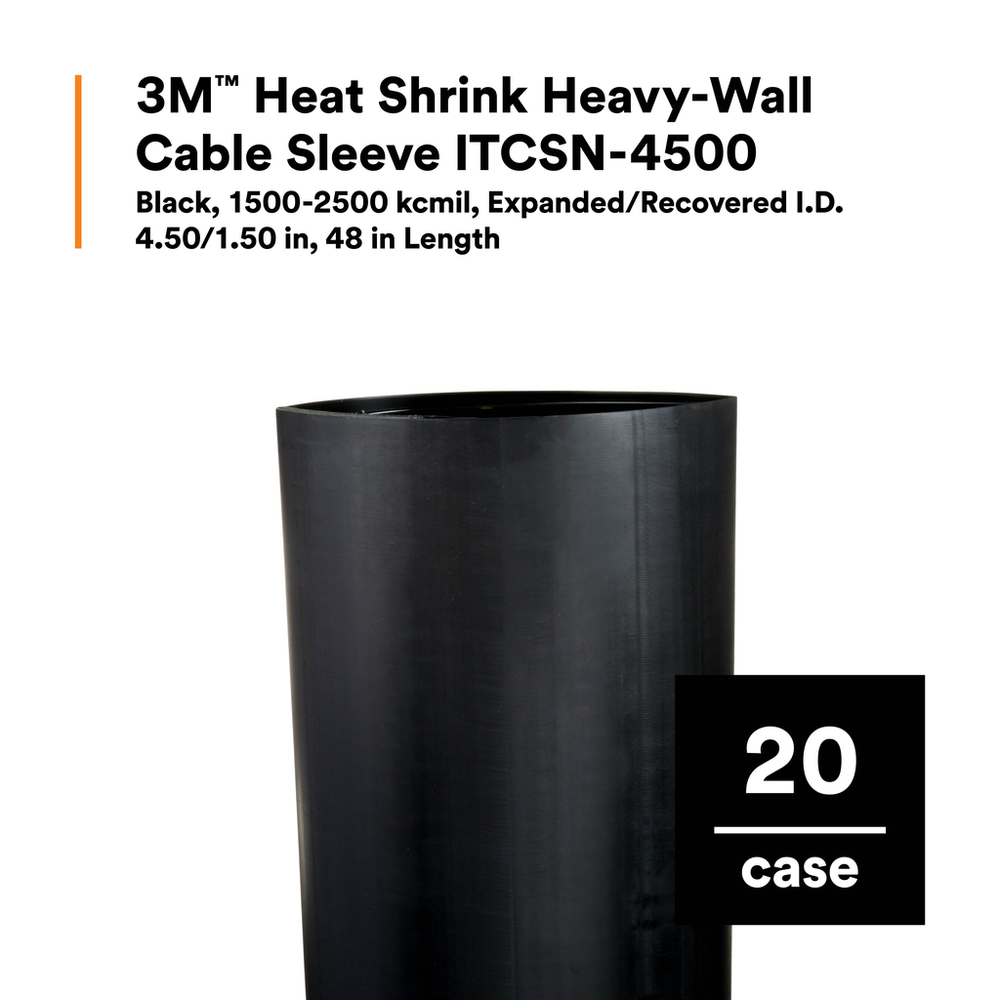

3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-4500, 1500-2500 kcmil, Expanded/Recovered I.D. 4.50/1.50 in, 48 in Length, 20/case - 7000132165

Sold As: 20-Pack
SKU: 7000132165
MPN: 7000132165
For an accurate lead time please contact us
UPC: 00054007089810
3M ID: 80008007355
5 Digit UPC: 8981
$3,839.98 ($192.00 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Features

  • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000

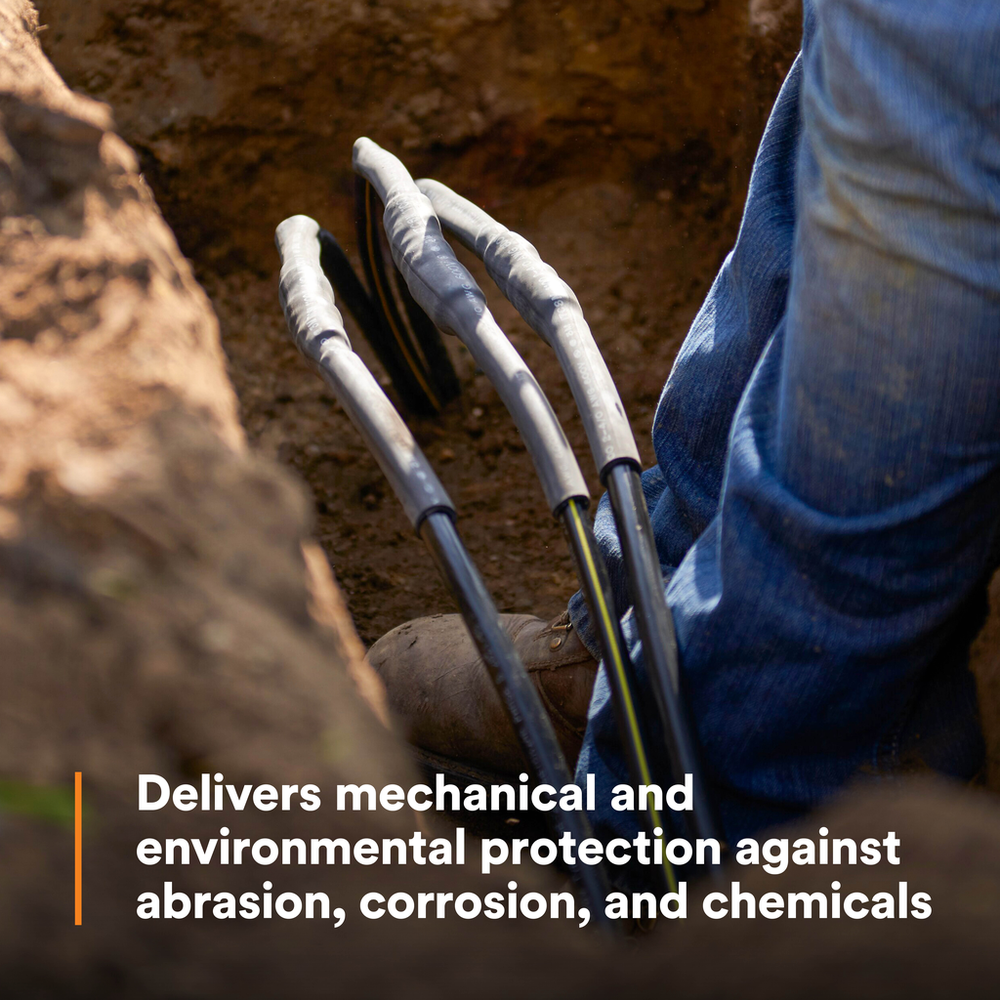

  • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant

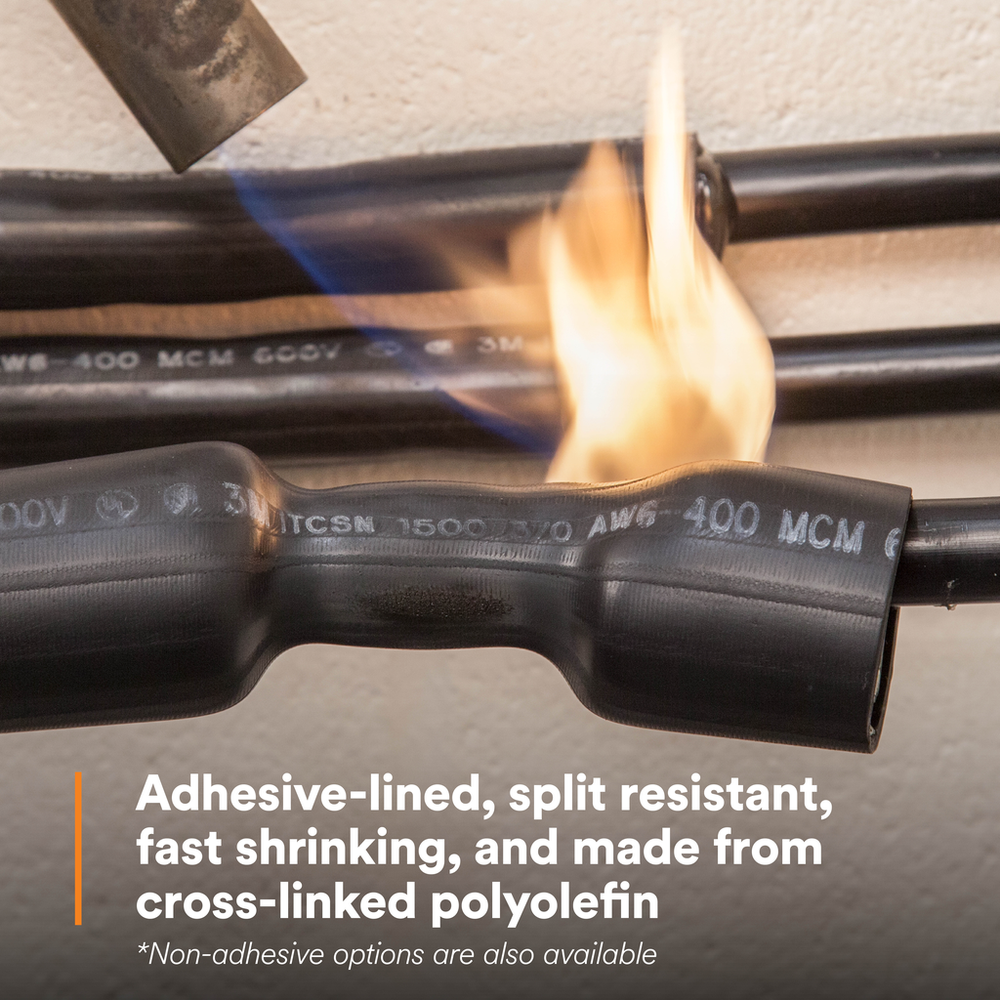

  • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
  • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
  • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Minimum Expanded Tubing I. D. UOMin
Units per Case20.0
Overall Length (Metric)1219.0
Elongation UOMdB
Flame RetardantNo
Overall Length (Imperial)48.0
MaterialPolyolefin
Splice ConfigurationHeat Shrink Heavy-Wall Cable Sleeve (ITCSN)
Minimum Expanded Tubing I. D.4.5
Inner Diameter After Shrink (Metric) UOMcm²
Overall Length (Metric) UOMmm
Inner Diameter After Shrink (Metric)3.81
Maximum Operating Temperature (Fahrenheit)230.0
Direct BuryNo
Inner Diameter Before Shrink (Imperial)4.5
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial) UOMin
Shrink Ratio3:1
Maximum Operating Temperature (Fahrenheit) UOMDegree
Dielectric Strength (V/mil)500 V/mil
Inner Diameter After Shrink (Imperial) UOMin
Maximum Conductor Size (Imperial)2500 kcmil
Minimum Conductor Size (Metric)760.1 mm²
Product TypeSleeve
Product FormSleeve-roll
Maximum Operating Temperature (Celsius)100.0
Splice TypeHeat Shrink
Specifications MetUL 486D*
Inner Diameter Before Shrink (Metric) UOMcm²
Inner Diameter After Shrink (Imperial)1.5
Adhesive LinedYes
Inner Diameter Before Shrink (Metric)11.43
Maximum Conductor Size (Metric)1267 mm²
Inner Diameter Before Shrink (Imperial) UOMin
Non-CorrosiveYes
Minimum Conductor Size (Imperial)1500 kcmil
Product ColorBlack
Tubing TypeHeavy Wall
UL File NumberE-102356
Mil SpecAMS-DTL-23053/15,Class 1
Maximum Operating Temperature (Celsius) UomDegree
