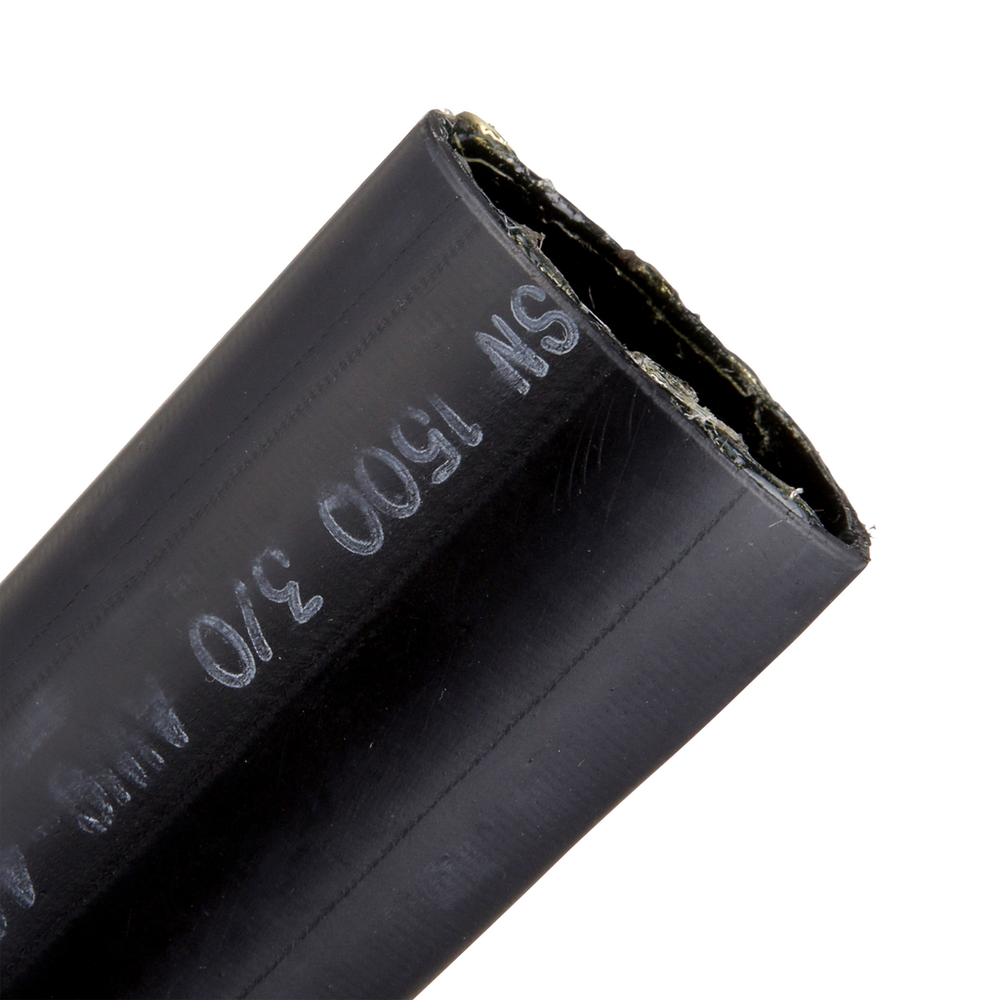

3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-1500, 3/0 AWG-400 kcmil, Expanded/Recovered I.D. 1.50/0.50 in, 9 in Length, 10/Case - 7000057990

Sold As: 10-Pack
SKU: 7000057990
MPN: 7000057990
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007088974
3M ID: 80610229561
5 Digit UPC: 8897
$196.96 ($19.70 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Features

  • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
  • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
  • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)
  • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
  • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
Spec Sheet



Downloads

Specifications

Shelf Life3650
Country of OriginUnited States
Splice TypeHeat Shrink
Maximum Operating Temperature (Celsius) UomDegree
Non-CorrosiveYes
Direct BuryYes
Adhesive LinedYes
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)9.0
Chemical ResistantYes
Maximum Operating Temperature (Fahrenheit)230.0
Specifications MetUL 486D*
Overall Length (Metric)228.6
Shrink Ratio3:1
Inner Diameter After Shrink (Metric)1.27
Inner Diameter Before Shrink (Imperial)1.5
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter After Shrink (Imperial)0.5
Tubing TypeHeavy Wall
Inner Diameter Before Shrink (Metric) UOMcm²
Minimum Expanded Tubing I. D.1.5
Units per Case10.0
Product TypeSplice
Flame RetardantNo
Inner Diameter Before Shrink (Metric)3.81
Inner Diameter After Shrink (Metric) UOMcm²
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Dielectric Strength (V/mil)500 V/mil
Overall Length (Metric) UOMmm
Product ColorBlack
Splice ConfigurationHeat Shrink Heavy-Wall Cable Sleeve (ITCSN)
MaterialAdhesive-lined Polyolefin
Maximum Operating Temperature (Celsius)100.0
Overall Length (Imperial) UOMin
Minimum Expanded Tubing I. D. UOMin
Elongation UOM%
