3M Products & Supplies

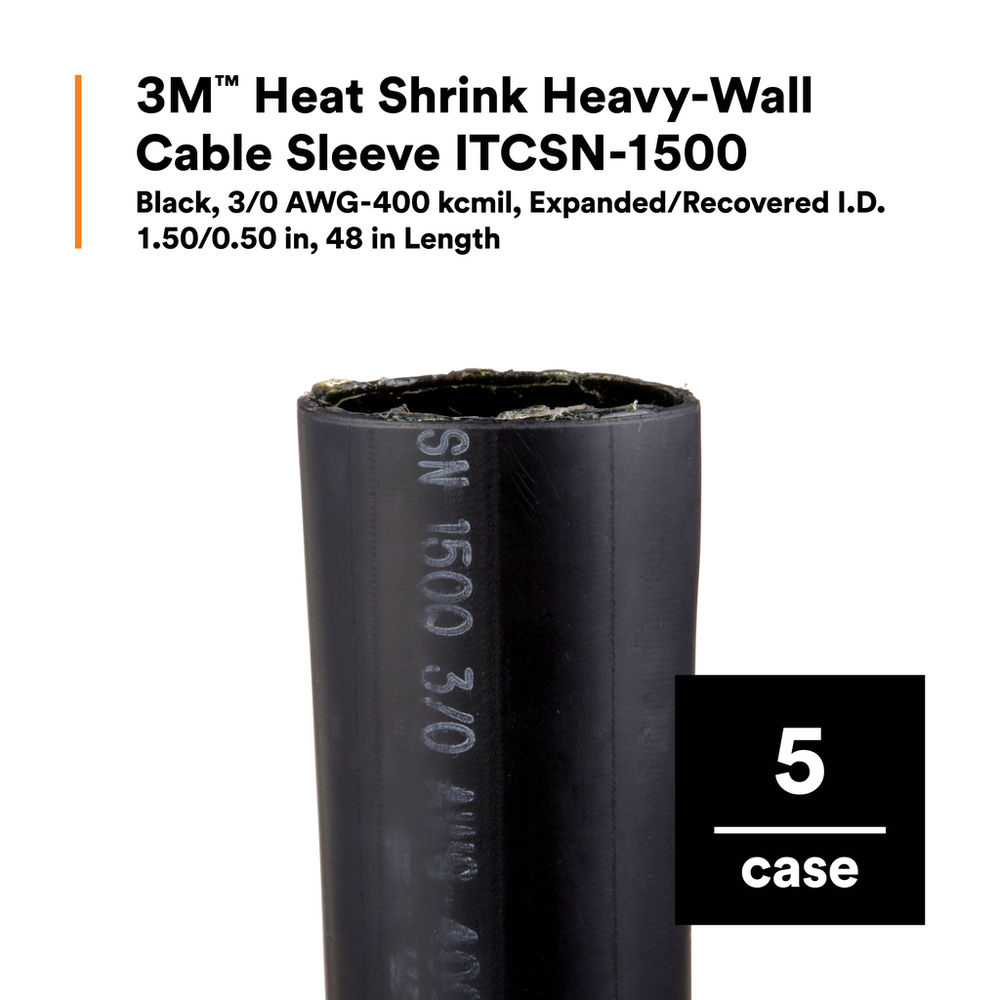

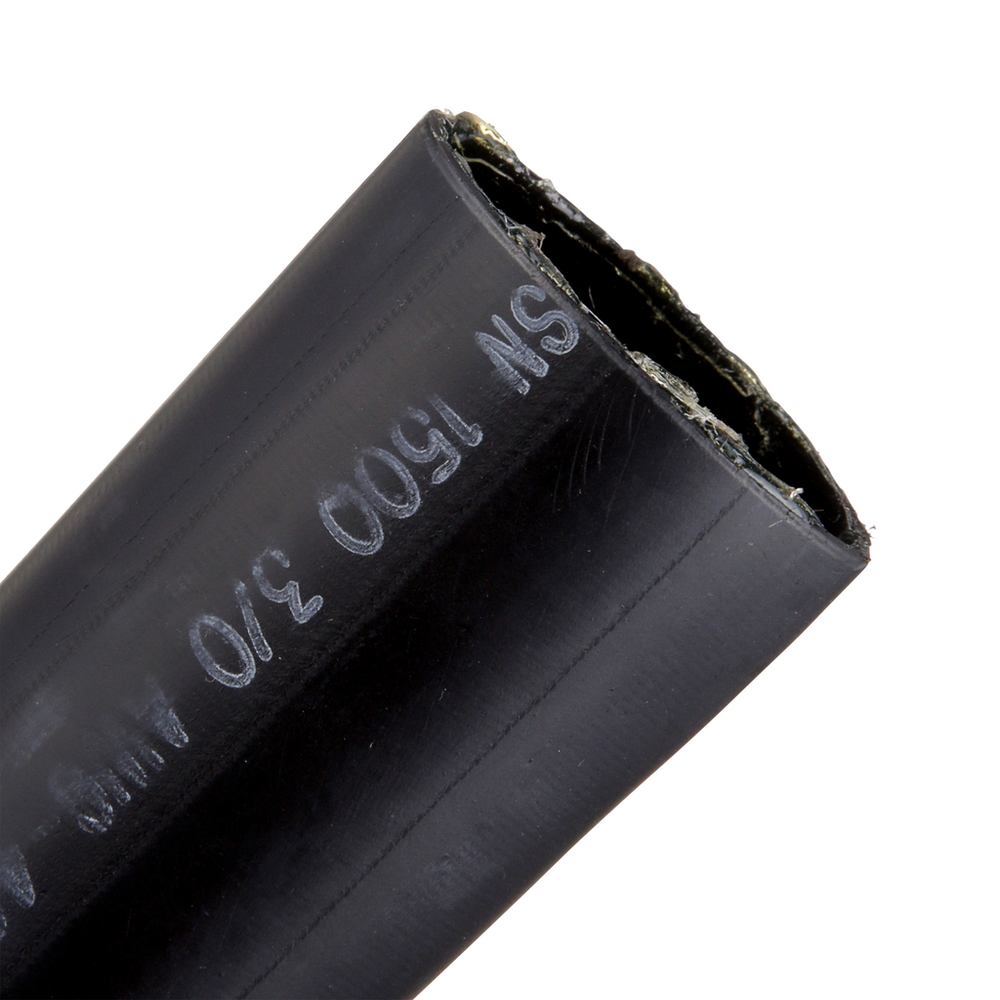

3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-1500, 3/0 AWG-400 kcmil, Expanded/Recovered I.D. 1.50/0.50 in, 48 in Length, 5/Case - 7000132381

Sold As: 5-Pack
SKU: 7000132381
MPN: 7000132381
For an accurate lead time please contact us
UPC: 00054007089056
3M ID: 80610229645
5 Digit UPC: 8905
$449.08 ($89.82 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Features

  • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)
  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
  • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
  • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
  • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
  • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter Before Shrink (Imperial) UOMin
Flame RetardantNo
Minimum Conductor Size (Metric)95 mm²
Overall Length (Metric)1219.0
Minimum Expanded Tubing I. D. UOMin
Maximum Conductor Size (Metric)240 mm²
Overall Length (Metric) UOMmm
MaterialPolyolefin
Product FormSleeve-roll
Non-CorrosiveYes
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter After Shrink (Metric) UOMcm²
Maximum Operating Temperature (Celsius)100.0
Maximum Operating Temperature (Celsius) UomDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)230.0
Adhesive LinedYes
Elongation UOM%
Overall Length (Imperial)48.0
Units per Case5.0
Inner Diameter Before Shrink (Metric)3.81
Direct BuryYes
Inner Diameter After Shrink (Imperial)0.5
Tubing TypeHeavy Wall
Splice TypeHeat Shrink
Inner Diameter After Shrink (Metric)1.27
Mil SpecAMS-DTL-23053/15,Class 1
Minimum Expanded Tubing I. D.1.5
Product ColorBlack
Inner Diameter Before Shrink (Imperial)1.5
Minimum Conductor Size (Imperial)3/0 AWG
Specifications MetUL 486D*
Splice ConfigurationHeat Shrink Heavy-Wall Cable Sleeve (ITCSN)
Maximum Conductor Size (Imperial)450 kcmil
Dielectric Strength (V/mil)500 V/mil
UL File NumberE-102356
Shrink Ratio3:1
Inner Diameter Before Shrink (Metric) UOMcm²
Inner Diameter After Shrink (Imperial) UOMin
Product TypeSleeve
