3M Products & Supplies

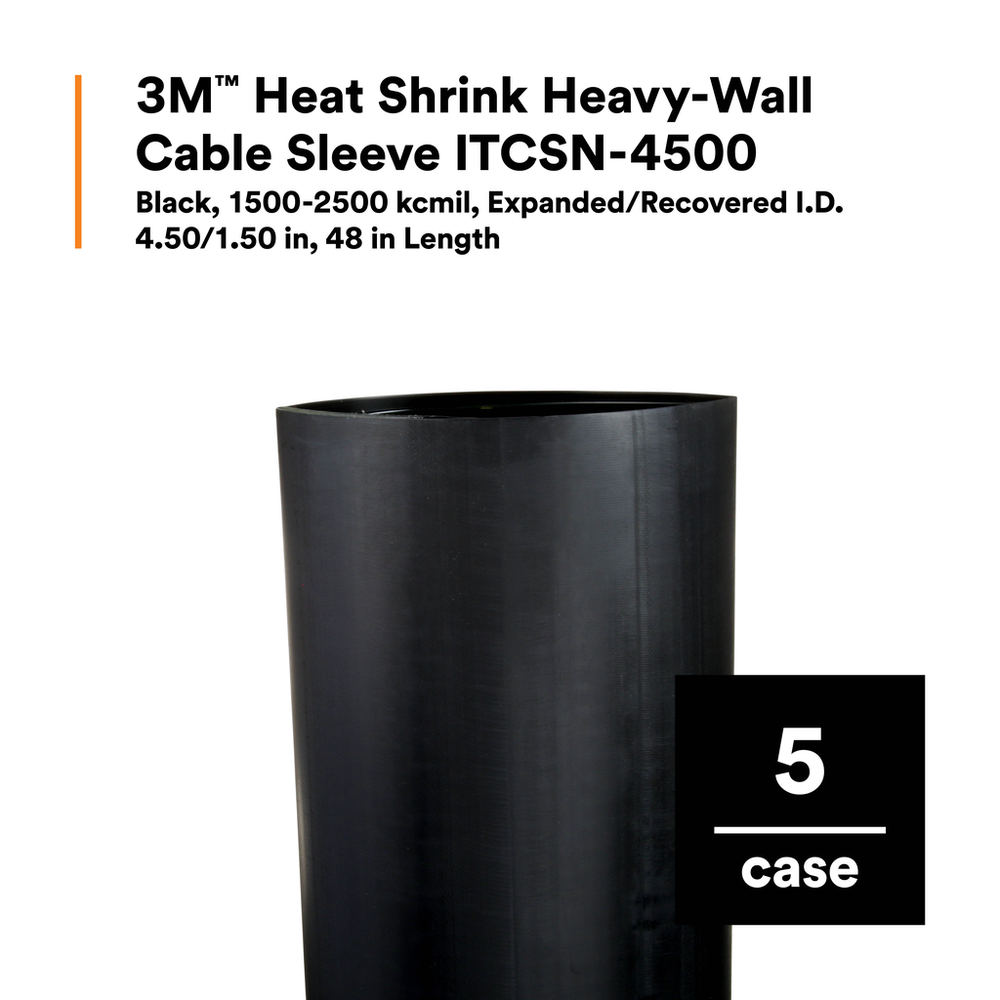

3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-4500, 1500-2500 kcmil, Expanded/Recovered I.D. 4.50/1.50 in, 48 in Length, 5/Case - 7000132664

Sold As: 5-Pack
SKU: 7000132664
MPN: 7000132664
For an accurate lead time please contact us
UPC: 00051135379790
3M ID: 80610858716
5 Digit UPC: 37979
$1,199.94 ($239.99 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Features

  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
  • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
  • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
  • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
  • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
  • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Shrink Ratio3:1
Inner Diameter Before Shrink (Metric) UOMcm²
Minimum Conductor Size (Metric)760.1 mm²
Maximum Conductor Size (Metric)1267 mm²
MaterialPolyolefin
Inner Diameter After Shrink (Imperial)1.5
Maximum Operating Temperature (Fahrenheit) UOMDegree
Product FormSleeve-roll
Inner Diameter Before Shrink (Imperial) UOMin
Overall Length (Imperial)48.0
Maximum Operating Temperature (Celsius) UomDegree
Direct BuryNo
Adhesive LinedNo
Inner Diameter After Shrink (Imperial) UOMin
Product ColorBlack
Splice ConfigurationHeat Shrink Heavy-Wall Cable Sleeve (ITCSN)
Inner Diameter After Shrink (Metric) UOMcm²
UL File NumberE-102356
Overall Length (Metric) UOMmm
Flame RetardantNo
Overall Length (Imperial) UOMin
Inner Diameter Before Shrink (Metric)11.43
Specifications MetUL 486D*
Units per Case5.0
Dielectric Strength (V/mil)500 V/mil
Inner Diameter After Shrink (Metric)3.81
Non-CorrosiveYes
Overall Length (Metric)1219.0
Splice TypeHeat Shrink
Maximum Operating Temperature (Celsius)100.0
Inner Diameter Before Shrink (Imperial)4.5
Minimum Conductor Size (Imperial)1500 kcmil
Mil SpecAMS-DTL-23053/15,Class 1
Product TypeSleeve
Maximum Operating Temperature (Fahrenheit)230.0
Elongation UOM%
Tubing TypeHeavy Wall
Maximum Conductor Size (Imperial)2500 kcmil
Minimum Expanded Tubing I. D. UOMin
Minimum Expanded Tubing I. D.4.5
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
