3M Products & Supplies

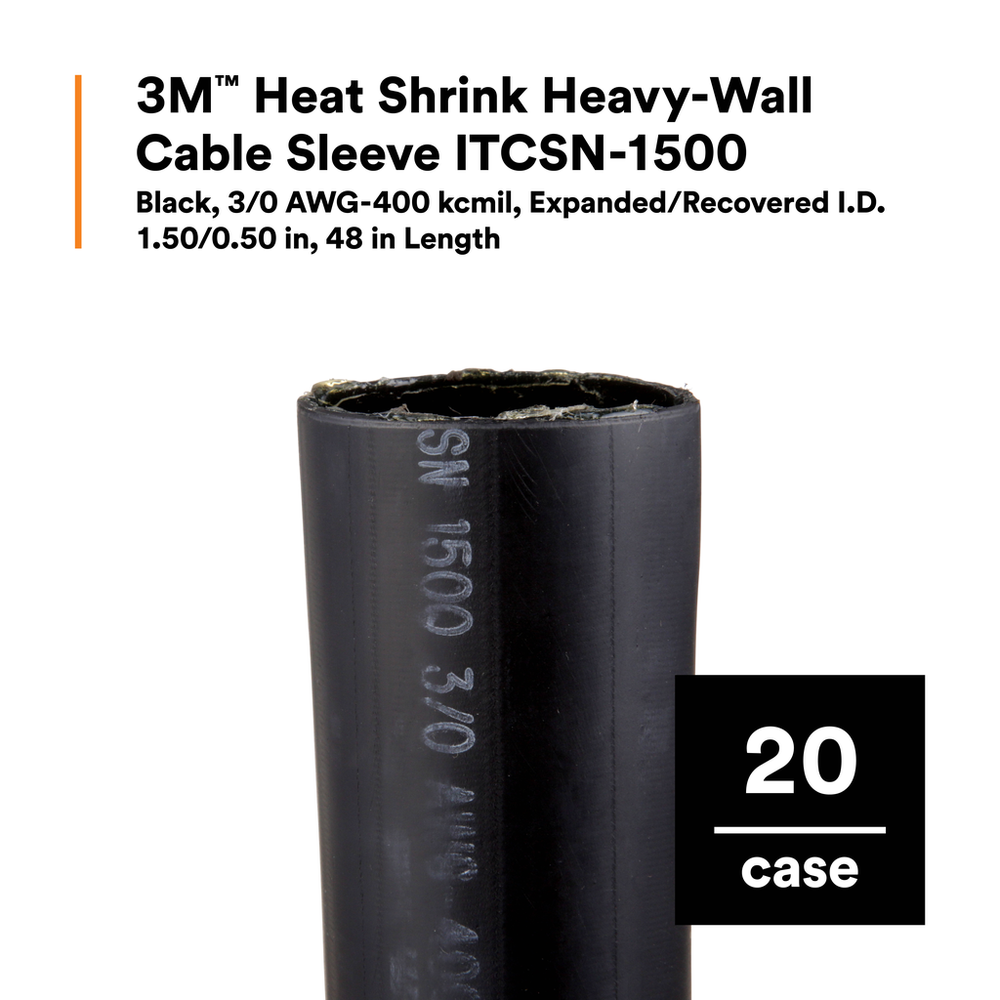

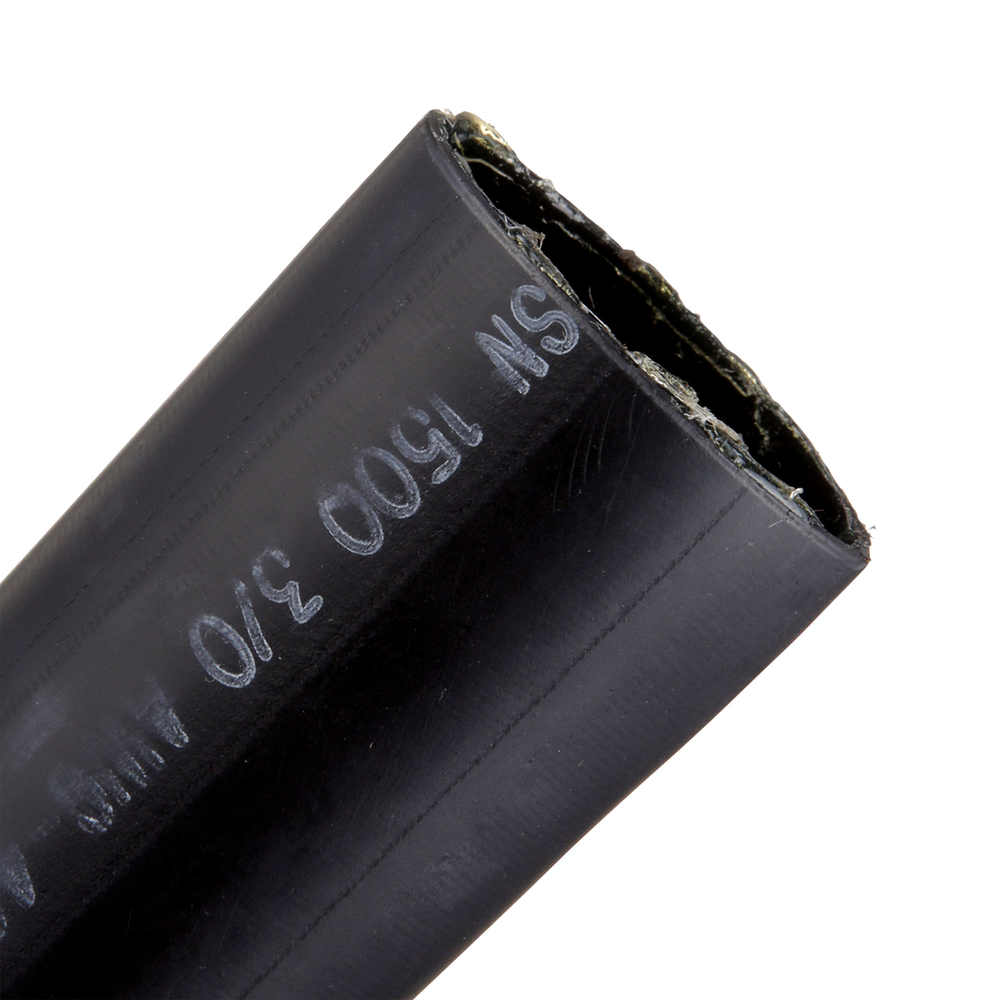

3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-1500, 3/0 AWG-400 kcmil, Expanded/Recovered I.D. 1.50/0.50 in, 48 in Length, 20/case - 7000149320

Sold As: 20-Pack
SKU: 7000149320
MPN: 7000149320
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007089759
3M ID: 80008007298
5 Digit UPC: 8975
$1,437.40 ($71.87 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Features

  • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
  • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
  • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)
  • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
  • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit)230.0
Flame RetardantNo
Product FormSleeve-roll
Splice TypeHeat Shrink
Direct BuryYes
Adhesive LinedYes
Splice ConfigurationHeat Shrink Heavy-Wall Cable Sleeve (ITCSN)
UL File NumberE-102356
Units per Case20.0
Overall Length (Imperial) UOMin
Dielectric Strength (V/mil)500 V/mil
Maximum Conductor Size (Imperial)450 kcmil
MaterialPolyolefin
Inner Diameter After Shrink (Metric)1.27
Specifications MetUL 486D*
Minimum Expanded Tubing I. D.1.5
Elongation UOM%
Overall Length (Metric)1219.0
Product TypeSleeve
Inner Diameter Before Shrink (Imperial)1.5
Maximum Operating Temperature (Celsius)100.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter After Shrink (Metric) UOMcm²
Maximum Operating Temperature (Celsius) UomDegree
Overall Length (Metric) UOMmm
Inner Diameter Before Shrink (Metric)3.81
Tubing TypeHeavy Wall
Shrink Ratio3:1
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter Before Shrink (Imperial) UOMin
Maximum Conductor Size (Metric)240 mm²
Inner Diameter After Shrink (Imperial) UOMin
Minimum Expanded Tubing I. D. UOMin
Minimum Conductor Size (Metric)95 mm²
Overall Length (Imperial)48.0
Inner Diameter After Shrink (Imperial)0.5
Product ColorBlack
Non-CorrosiveYes
Inner Diameter Before Shrink (Metric) UOMcm²
Mil SpecAMS-DTL-23053/15,Class 1
Minimum Conductor Size (Imperial)3/0 AWG
