3M Products & Supplies

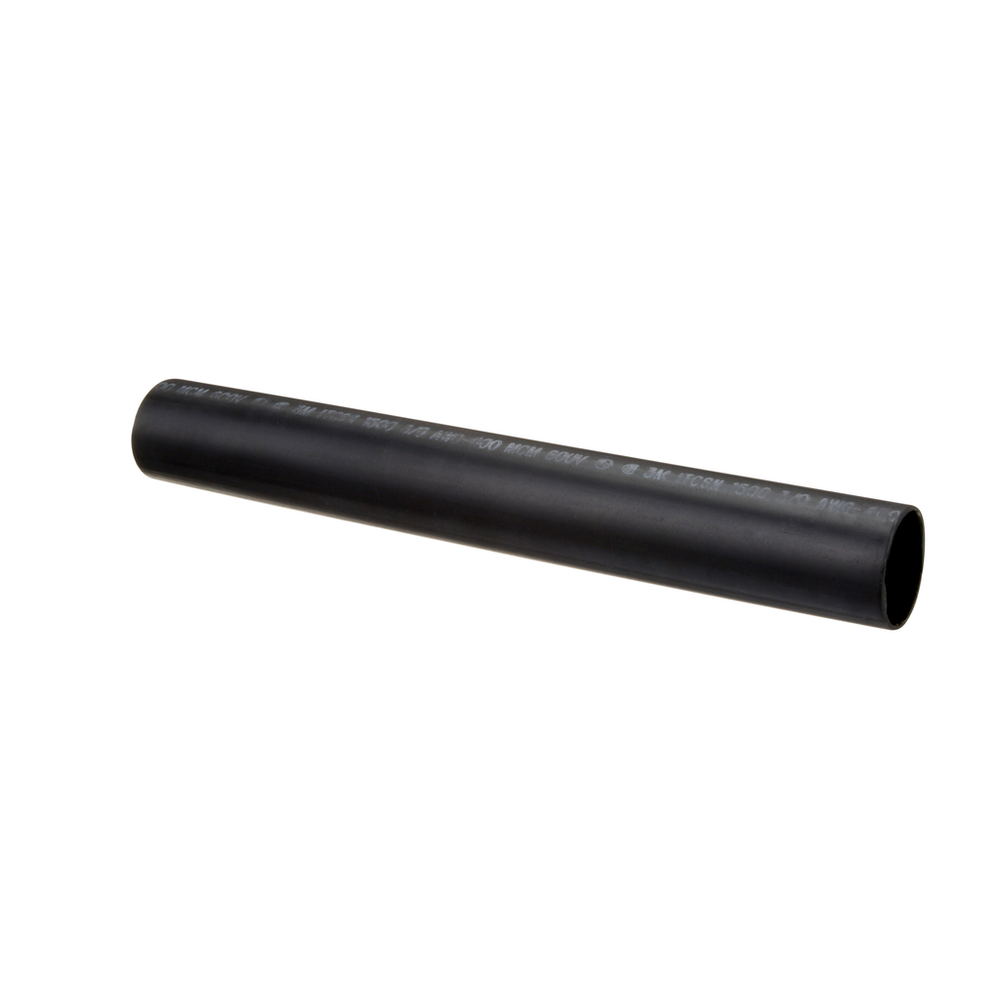

3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-1500, 3/0 AWG-400 kcmil, Expanded/Recovered I.D. 1.50/0.50 in, 12 in Length, 50/case - 7000132160

Sold As: 50-Pack
SKU: 7000132160
MPN: 7000132160
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007089742
3M ID: 80008007280
5 Digit UPC: 8974
$884.68 ($17.69 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Features

  • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)
  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
  • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
  • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
  • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
  • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Direct BuryYes
Dielectric Strength (V/mil)500 V/mil
Overall Length (Imperial) UOMin
Tubing TypeHeavy Wall
Shrink Ratio3:1
Inner Diameter Before Shrink (Imperial) UOMin
Specifications MetUL 486D*
Chemical ResistantYes
Minimum Expanded Tubing I. D. UOMin
Maximum Operating Temperature (Celsius)100.0
Adhesive LinedYes
Maximum Operating Temperature (Fahrenheit)230.0
MaterialAdhesive-lined Polyolefin
Units per Case50.0
Inner Diameter After Shrink (Imperial) UOMin
Elongation UOMdB
Minimum Expanded Tubing I. D.1.5
Inner Diameter After Shrink (Metric)1.27
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric) UOMmm
Inner Diameter After Shrink (Metric) UOMcm²
Inner Diameter After Shrink (Imperial)0.5
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter Before Shrink (Metric) UOMcm²
Inner Diameter Before Shrink (Metric)3.81
Non-CorrosiveYes
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Splice ConfigurationHeat Shrink Heavy-Wall Cable Sleeve (ITCSN)
Overall Length (Imperial)12.0
Inner Diameter Before Shrink (Imperial)1.5
Flame RetardantNo
Product ColorBlack
Product TypeSplice
Splice TypeHeat Shrink
Overall Length (Metric)304.8
