3M Products & Supplies

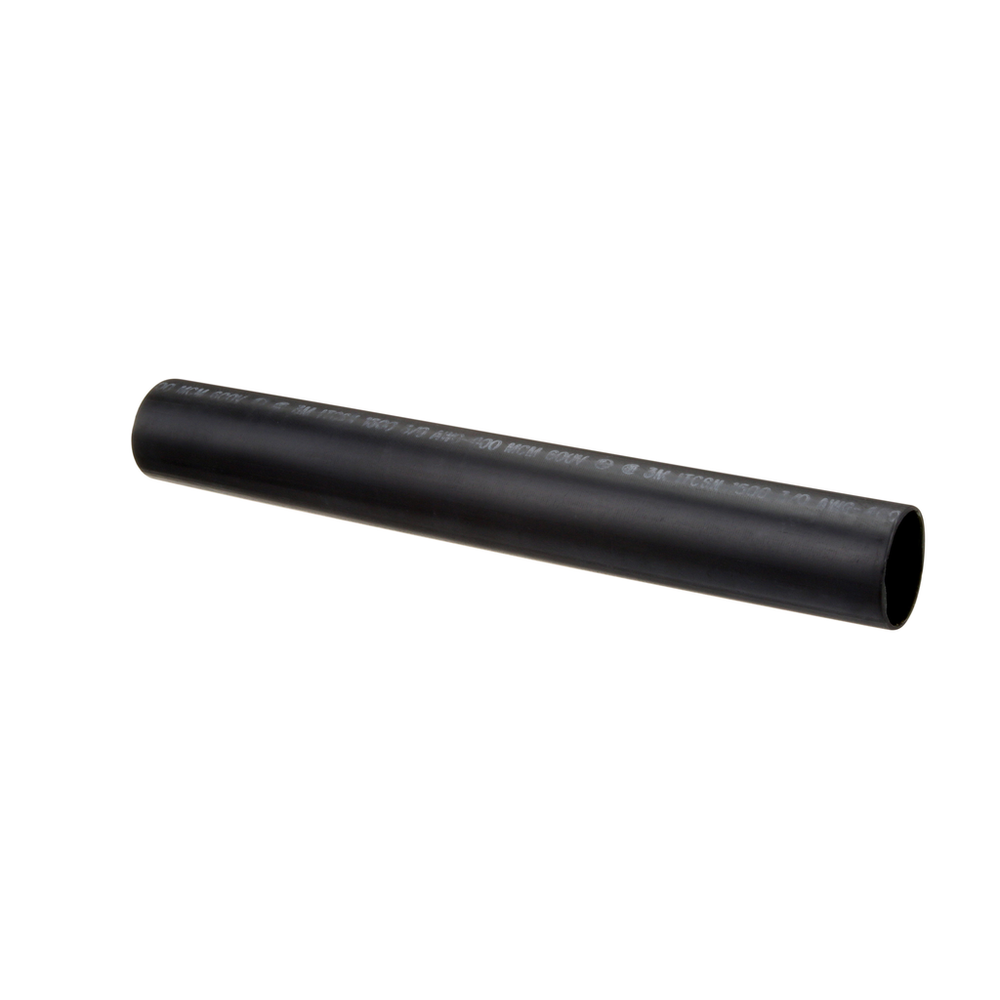

3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-1500, 3/0 AWG-400 kcmil, Exp./Rec. I.D. 1.50/0.50 in, 12 in Length, 10/Case - 7000031475

Sold As: 10-Pack
SKU: 7000031475
MPN: 7000031475
For an accurate lead time please contact us
UPC: 00054007088967
3M ID: 80610229553
5 Digit UPC: 8896
$221.31 ($22.13 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Features

  • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
  • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)
  • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
  • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
  • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Elongation UOM%
Inner Diameter After Shrink (Metric)1.27
Inner Diameter After Shrink (Metric) UOMcm²
MaterialAdhesive-lined Polyolefin
Shrink Ratio3:1
Non-CorrosiveYes
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter After Shrink (Imperial)0.5
Inner Diameter Before Shrink (Imperial)1.5
Product ColorBlack
Inner Diameter Before Shrink (Metric)3.81
Maximum Operating Temperature (Celsius)100.0
Inner Diameter Before Shrink (Imperial) UOMin
Minimum Expanded Tubing I. D. UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric)304.8
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter After Shrink (Imperial) UOMin
Direct BuryYes
Inner Diameter Before Shrink (Metric) UOMcm²
Overall Length (Imperial)12.0
Overall Length (Imperial) UOMin
Overall Length (Metric) UOMmm
Adhesive LinedYes
Tubing TypeHeavy Wall
Specifications MetUL 486D*
Product TypeSplice
Splice TypeHeat Shrink
Minimum Expanded Tubing I. D.1.5
Maximum Operating Temperature (Fahrenheit)230.0
Splice ConfigurationHeat Shrink Heavy-Wall Cable Sleeve (ITCSN)
Units per Case10.0
Chemical ResistantYes
Flame RetardantNo
