3M Products & Supplies

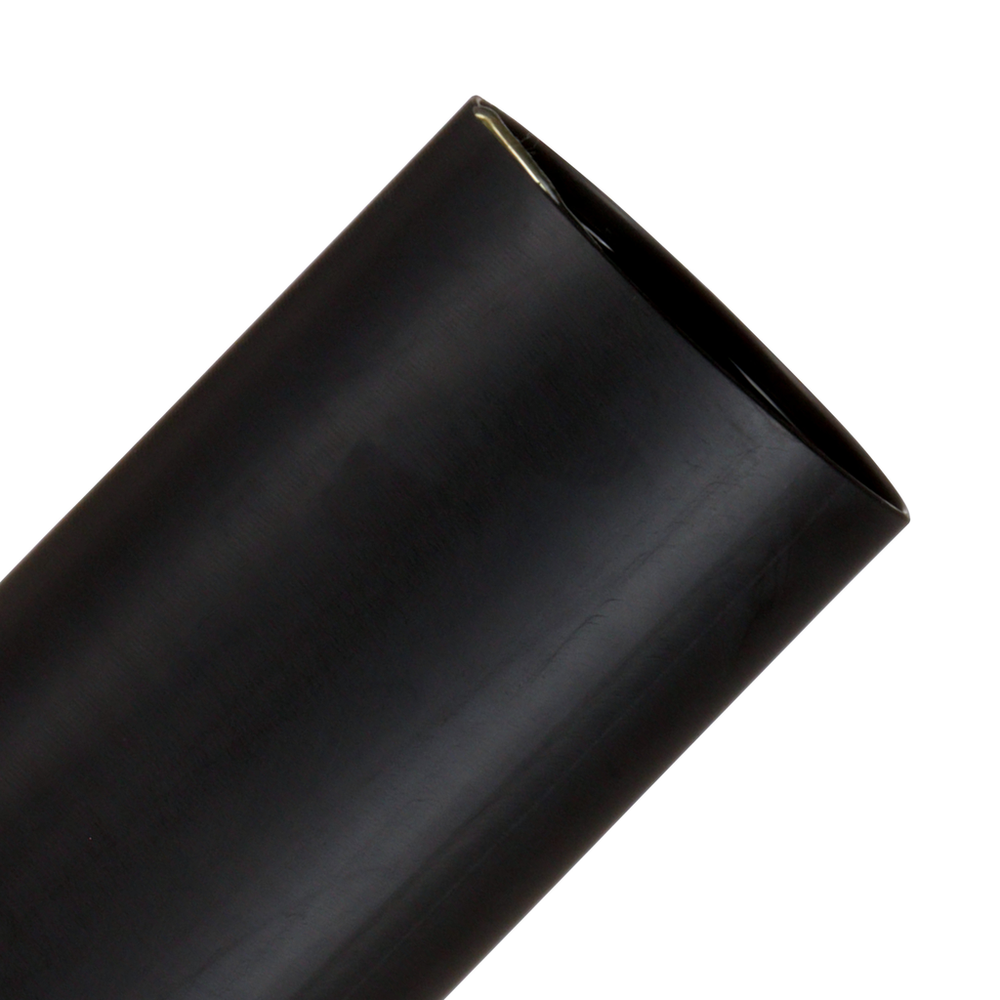

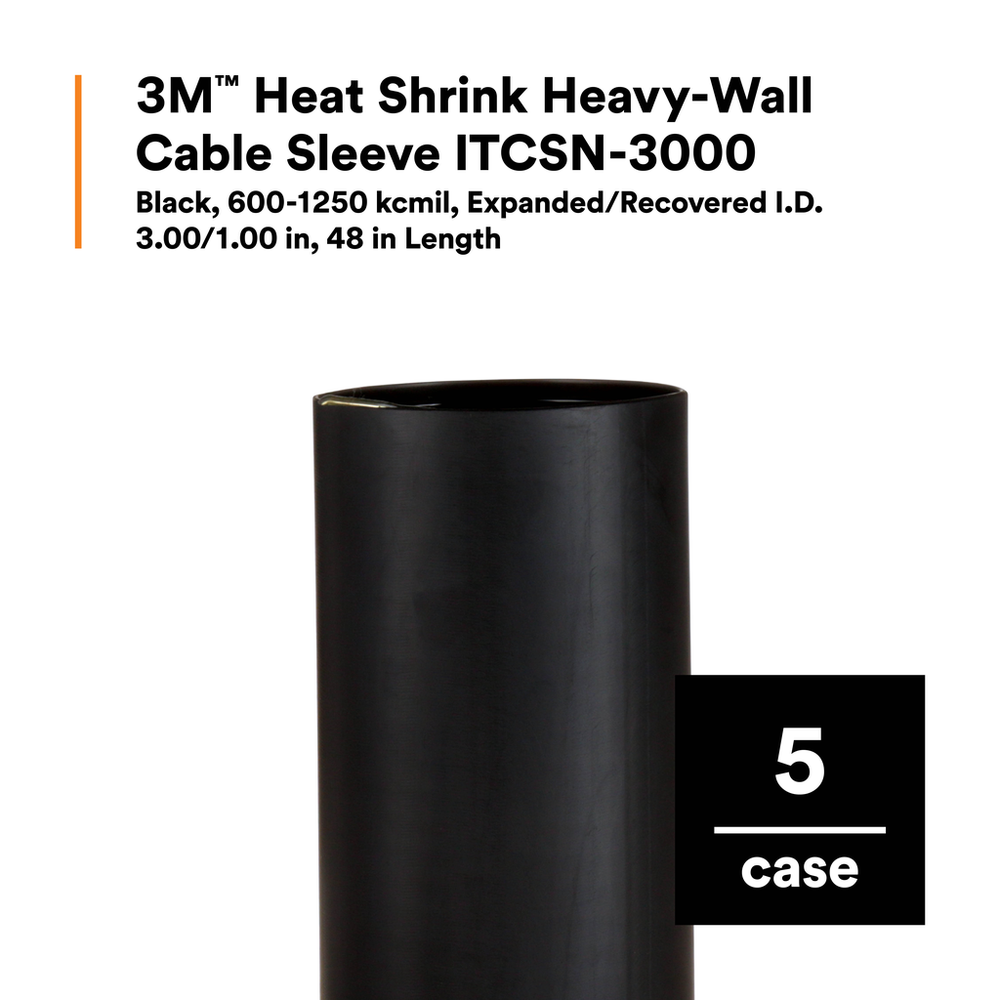

3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-3000, 600-1250 kcmil, Expanded/Recovered I.D. 3.00/1.00 in, 48 in Length, 5/Case - 7000031476

Sold As: 5-Pack
SKU: 7000031476
MPN: 7000031476
For an accurate lead time please contact us
UPC: 00054007089070
3M ID: 80610229660
5 Digit UPC: 8907
$626.92 ($125.38 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Features

  • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
  • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
  • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
  • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)
  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
  • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter Before Shrink (Imperial) UOMin
Maximum Operating Temperature (Celsius)100.0
Splice ConfigurationHeat Shrink Heavy-Wall Cable Sleeve (ITCSN)
Minimum Conductor Size (Metric)300 mm²
Inner Diameter After Shrink (Metric)2.54
Minimum Expanded Tubing I. D. UOMin
Overall Length (Metric) UOMmm
Flame RetardantNo
Maximum Operating Temperature (Celsius) UomDegree
Dielectric Strength (V/mil)500 V/mil
UL File NumberE-102356
Non-CorrosiveYes
Maximum Conductor Size (Imperial)1250 kcmil
Specifications MetUL 486D*
Overall Length (Metric)1219.0
Maximum Conductor Size (Metric)633.4 mm²
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Shrink Ratio3:1
Product ColorBlack
Tubing TypeHeavy Wall
Elongation UOM%
Inner Diameter After Shrink (Metric) UOMcm²
Splice TypeHeat Shrink
Inner Diameter After Shrink (Imperial) UOMin
Mil SpecAMS-DTL-23053/15,Class 1
Minimum Expanded Tubing I. D.3.0
Minimum Conductor Size (Imperial)600 kcmil
Overall Length (Imperial) UOMin
Overall Length (Imperial)48.0
Product FormSleeve-roll
Direct BuryNo
Inner Diameter Before Shrink (Metric) UOMcm²
Units per Case5.0
Maximum Operating Temperature (Fahrenheit)230.0
Product TypeSleeve
Adhesive LinedYes
Maximum Operating Temperature (Fahrenheit) UOMDegree
MaterialPolyolefin
Inner Diameter Before Shrink (Metric)7.62
Inner Diameter After Shrink (Imperial)1.0
Inner Diameter Before Shrink (Imperial)3.0
