3M Products & Supplies

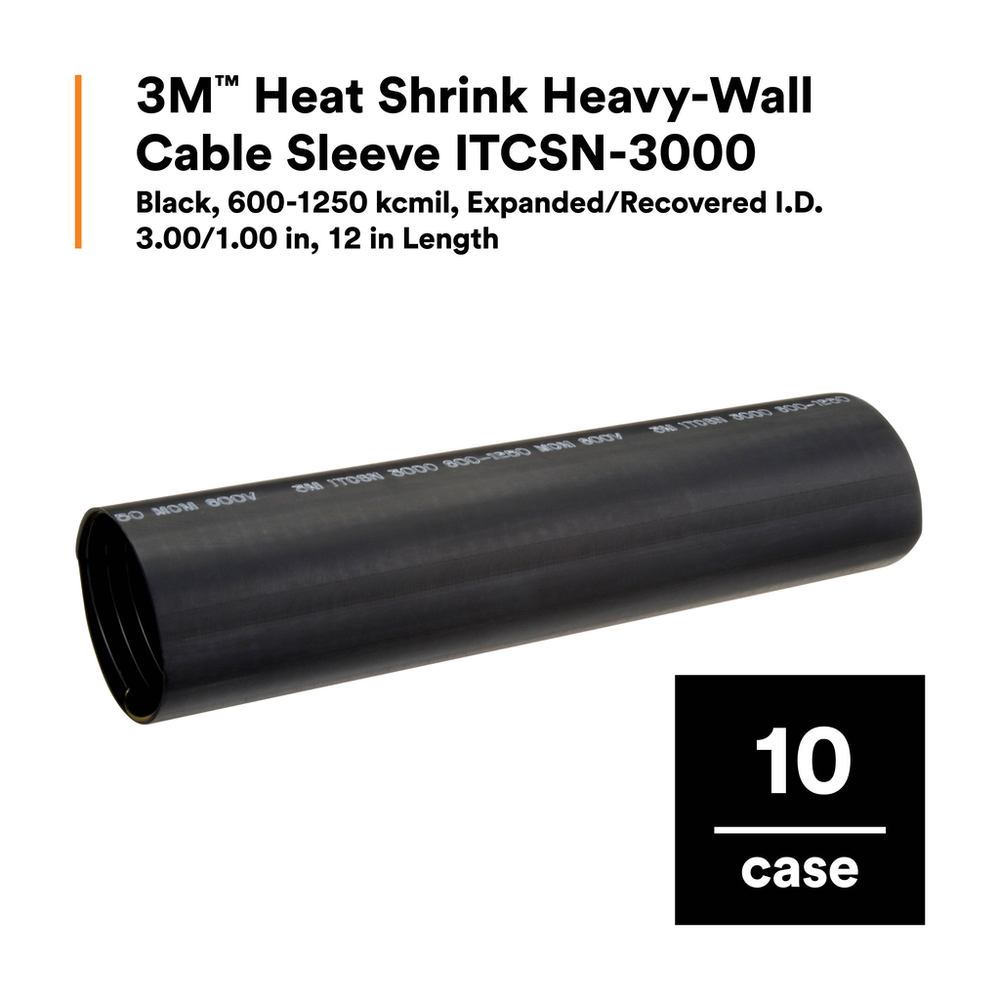

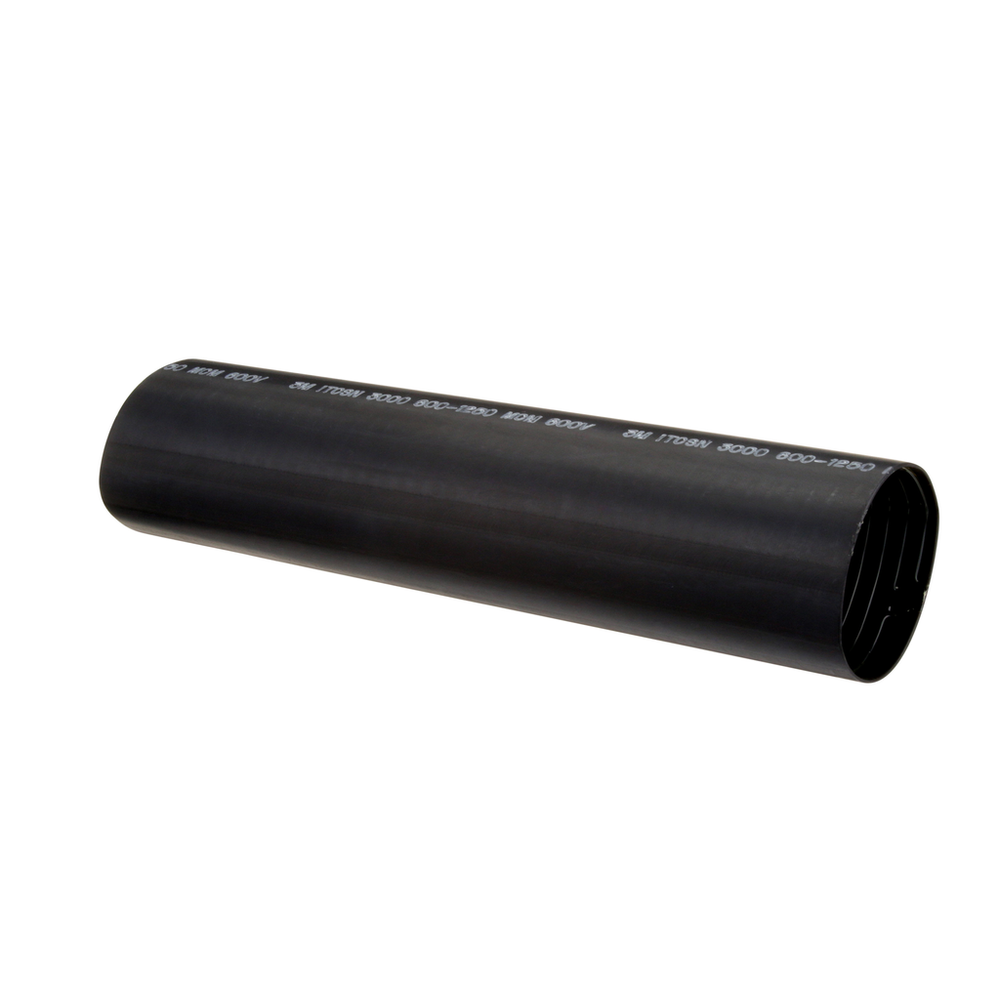

3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-3000, 600-1250 kcmil, Expanded/Recovered I.D. 3.00/1.00 in, 12 in Length, 10/Case - 7000132377

Sold As: 10-Pack
SKU: 7000132377
MPN: 7000132377
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007089018
3M ID: 80610229603
5 Digit UPC: 8901
$393.51 ($39.35 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Features

  • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
  • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
  • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)
  • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
  • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter Before Shrink (Metric) UOMcm²
Non-CorrosiveYes
Maximum Operating Temperature (Fahrenheit) UOMDegree
Adhesive LinedYes
Splice TypeHeat Shrink
Minimum Expanded Tubing I. D. UOMin
Product TypeSplice
Maximum Operating Temperature (Fahrenheit)230.0
Inner Diameter Before Shrink (Imperial) UOMin
Overall Length (Imperial)12.0
Dielectric Strength (V/mil)500 V/mil
Inner Diameter After Shrink (Imperial)1.0
Product ColorBlack
Maximum Operating Temperature (Celsius)100.0
Units per Case10.0
Inner Diameter After Shrink (Metric) UOMcm²
Inner Diameter Before Shrink (Imperial)3.0
Specifications MetUL 486D*
Elongation UOM%
Splice ConfigurationHeat Shrink Heavy-Wall Cable Sleeve (ITCSN)
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Metric)304.8
Chemical ResistantYes
Flame RetardantNo
Overall Length (Metric) UOMmm
Tubing TypeHeavy Wall
Inner Diameter After Shrink (Imperial) UOMin
Maximum Operating Temperature (Celsius) UomDegree
Minimum Expanded Tubing I. D.3.0
Inner Diameter Before Shrink (Metric)7.62
Direct BuryNo
Shrink Ratio3:1
Overall Length (Imperial) UOMin
Inner Diameter After Shrink (Metric)2.54
MaterialAdhesive-lined Polyolefin
