3M Products & Supplies

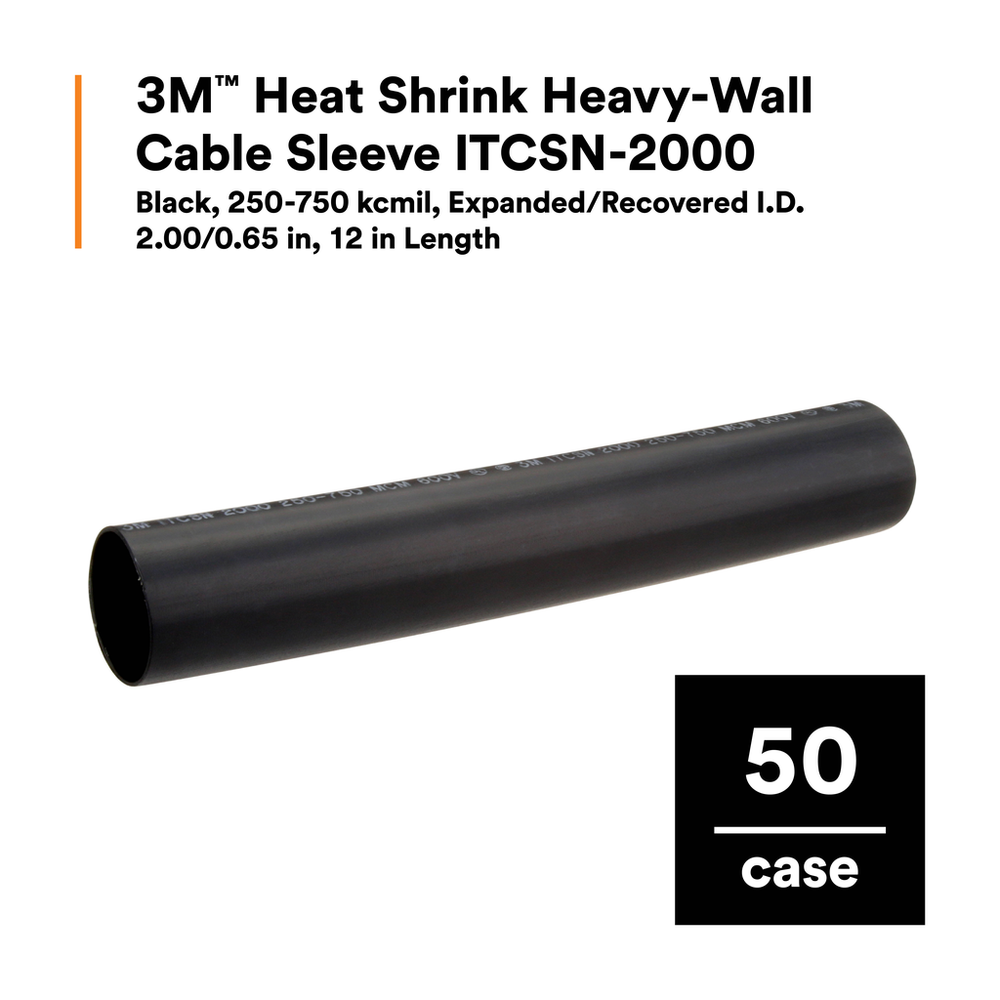

3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-2000, 250-750 kcmil, Expanded/Recovered I.D. 2.00/0.65 in, 12 in Length, 50/case - 7000132162

Sold As: 50-Pack
SKU: 7000132162
MPN: 7000132162
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007089773
3M ID: 80008007314
5 Digit UPC: 8977
$1,255.31 ($25.11 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Features

  • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
  • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)
  • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
  • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
  • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter Before Shrink (Metric)5.08
Specifications MetUL 486D*
Chemical ResistantYes
Overall Length (Metric) UOMmm
Splice TypeHeat Shrink
Direct BuryYes
Overall Length (Metric)304.8
Product TypeSplice
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Expanded Tubing I. D. UOMin
Inner Diameter Before Shrink (Imperial) UOMin
Maximum Operating Temperature (Celsius)100.0
Inner Diameter After Shrink (Imperial)0.65
Minimum Expanded Tubing I. D.2.0
MaterialAdhesive-lined Polyolefin
Product ColorBlack
Overall Length (Imperial) UOMin
Inner Diameter Before Shrink (Metric) UOMcm²
Non-CorrosiveYes
Elongation UOM%
Inner Diameter After Shrink (Imperial) UOMin
Dielectric Strength (V/mil)500 V/mil
Maximum Operating Temperature (Celsius) UomDegree
Splice ConfigurationHeat Shrink Heavy-Wall Cable Sleeve (ITCSN)
Adhesive LinedYes
Inner Diameter After Shrink (Metric)1.651
Maximum Operating Temperature (Fahrenheit)230.0
Inner Diameter Before Shrink (Imperial)2.0
Inner Diameter After Shrink (Metric) UOMcm²
Flame RetardantNo
Shrink Ratio3:1
Maximum Operating Temperature (Fahrenheit) UOMDegree
Units per Case50.0
Tubing TypeHeavy Wall
Overall Length (Imperial)12.0
