3M Products & Supplies

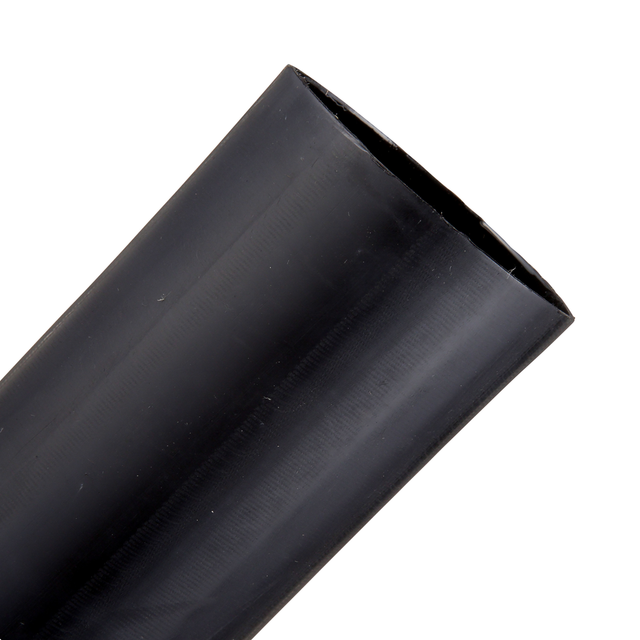

3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-2000, 250-750 kcmil, Expanded/Recovered I.D. 2.00/0.65 in, 9 in Length, 50/case - 7000132161

Sold As: 50-Pack
SKU: 7000132161
MPN: 7000132161
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007089766
3M ID: 80008007306
5 Digit UPC: 8976
$1,156.42 ($23.13 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Features

  • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)
  • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
  • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
  • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
  • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Minimum Expanded Tubing I. D. UOMin
Splice TypeHeat Shrink
Maximum Operating Temperature (Celsius)100.0
Elongation UOM%
Flame RetardantNo
Overall Length (Metric)228.6
Adhesive LinedYes
Direct BuryYes
Inner Diameter Before Shrink (Metric) UOMcm²
Overall Length (Metric) UOMmm
Inner Diameter Before Shrink (Metric)5.08
Units per Case50.0
Tubing TypeHeavy Wall
Product TypeSplice
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Dielectric Strength (V/mil)500 V/mil
Inner Diameter Before Shrink (Imperial) UOMin
Product ColorBlack
Overall Length (Imperial) UOMin
Chemical ResistantYes
Specifications MetUL 486D*
Minimum Expanded Tubing I. D.2.0
Shrink Ratio3:1
Inner Diameter After Shrink (Imperial)0.65
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Imperial)2.0
Maximum Operating Temperature (Celsius) UomDegree
Non-CorrosiveYes
MaterialAdhesive-lined Polyolefin
Splice ConfigurationHeat Shrink Heavy-Wall Cable Sleeve (ITCSN)
Maximum Operating Temperature (Fahrenheit)230.0
Overall Length (Imperial)9.0
Inner Diameter After Shrink (Metric)1.651
Inner Diameter After Shrink (Metric) UOMcm²
Maximum Operating Temperature (Fahrenheit) UOMDegree
