3M Products & Supplies

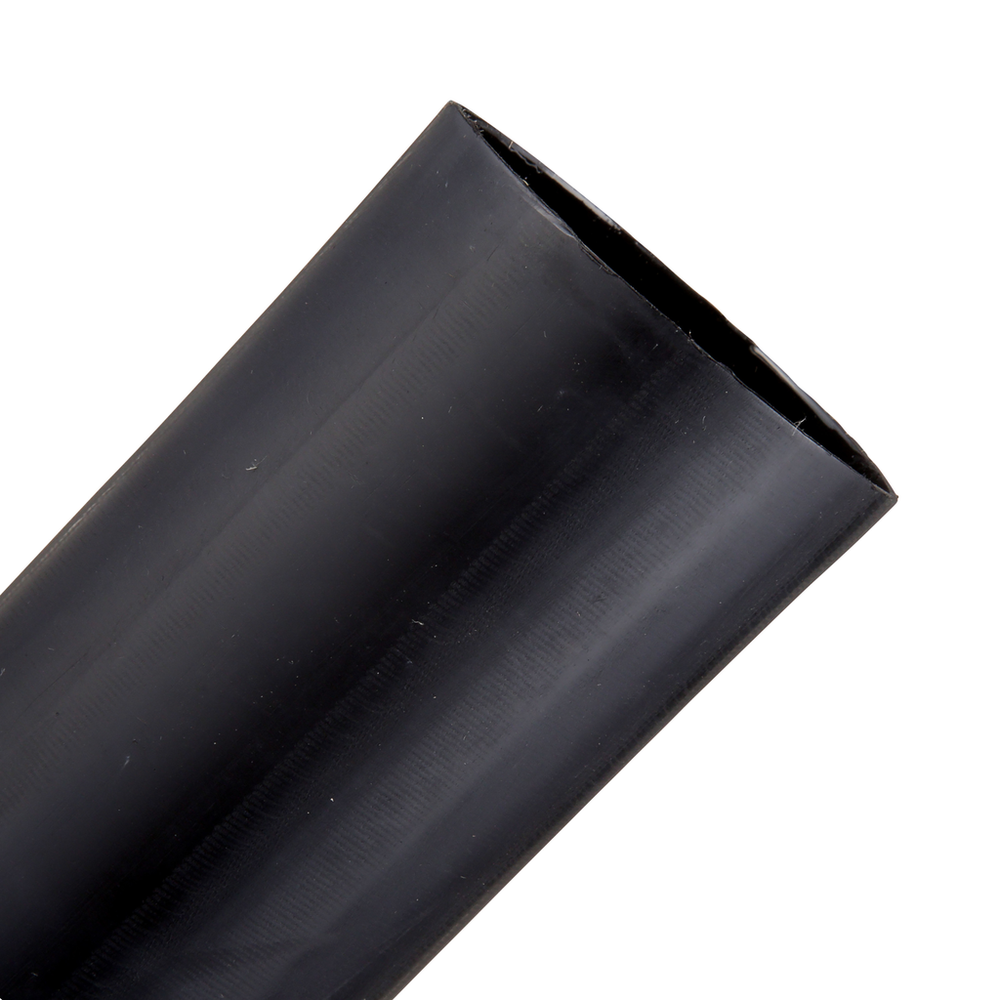

3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-2000, 250-750 kcmil, Expanded/Recovered I.D. 2.00/0.65 in, 9 in Length, 10/Case - 7000132376

Sold As: 10-Pack
SKU: 7000132376
MPN: 7000132376
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007089001
3M ID: 80610229595
5 Digit UPC: 8900
$288.98 ($28.90 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Features

  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
  • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
  • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
  • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
  • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
  • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Product TypeSplice
Dielectric Strength (V/mil)500 V/mil
Splice ConfigurationHeat Shrink Heavy-Wall Cable Sleeve (ITCSN)
Flame RetardantNo
Elongation UOM%
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Non-CorrosiveYes
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Chemical ResistantYes
Product ColorBlack
Maximum Operating Temperature (Celsius)100.0
Inner Diameter After Shrink (Metric) UOMcm²
MaterialAdhesive-lined Polyolefin
Overall Length (Metric)228.6
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Imperial)2.0
Inner Diameter Before Shrink (Metric)5.08
Inner Diameter Before Shrink (Metric) UOMcm²
Units per Case10.0
Adhesive LinedYes
Inner Diameter After Shrink (Metric)1.651
Minimum Expanded Tubing I. D.2.0
Minimum Expanded Tubing I. D. UOMin
Tubing TypeHeavy Wall
Shrink Ratio3:1
Direct BuryYes
Overall Length (Metric) UOMmm
Inner Diameter Before Shrink (Imperial) UOMin
Splice TypeHeat Shrink
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter After Shrink (Imperial)0.65
Overall Length (Imperial)9.0
Specifications MetUL 486D*
Maximum Operating Temperature (Fahrenheit)230.0
