3M Products & Supplies

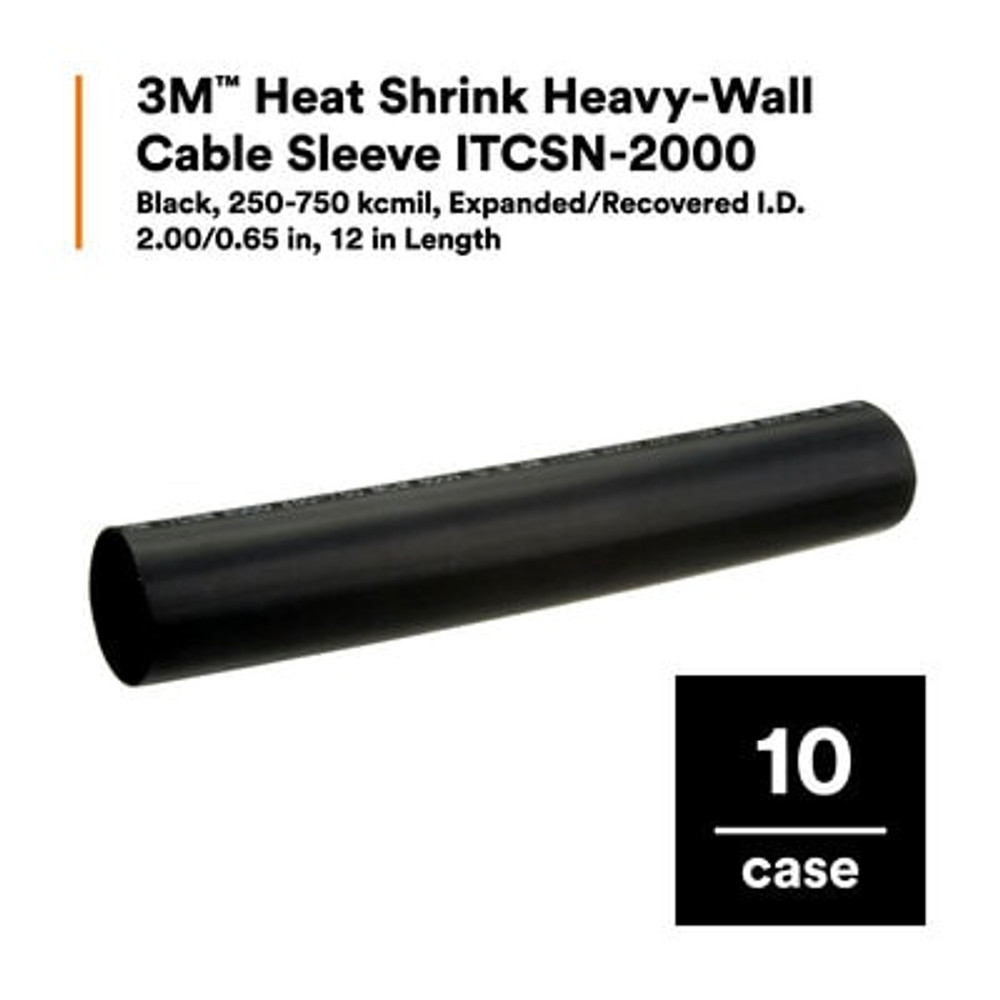

3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-2000, 250-750 kcmil, Expanded/Recovered I.D. 2.00/0.65 in, 12 in Length, 10/Case - 7000132375

Sold As: 10-Pack
SKU: 7000132375
MPN: 7000132375
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007088998
3M ID: 80610229587
5 Digit UPC: 8899
$313.01 ($31.30 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Features

  • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
  • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
  • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
  • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
  • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit)230.0
Inner Diameter After Shrink (Metric) UOMcm²
Overall Length (Imperial) UOMin
Tubing TypeHeavy Wall
Inner Diameter After Shrink (Imperial)0.65
Product ColorBlack
Chemical ResistantYes
Maximum Operating Temperature (Celsius)100.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter After Shrink (Metric)1.651
Specifications MetUL 486D*
Maximum Operating Temperature (Fahrenheit) UOMDegree
Adhesive LinedYes
Product TypeSplice
Inner Diameter Before Shrink (Imperial)2.0
Units per Case10.0
Inner Diameter Before Shrink (Metric)5.08
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Imperial) UOMin
Elongation UOM%
Splice ConfigurationHeat Shrink Heavy-Wall Cable Sleeve (ITCSN)
MaterialAdhesive-lined Polyolefin
Dielectric Strength (V/mil)500 V/mil
Overall Length (Metric) UOMmm
Minimum Expanded Tubing I. D.2.0
Flame RetardantNo
Splice TypeHeat Shrink
Overall Length (Imperial)12.0
Overall Length (Metric)304.8
Maximum Operating Temperature (Celsius) UomDegree
Shrink Ratio3:1
Direct BuryYes
Minimum Expanded Tubing I. D. UOMin
Inner Diameter Before Shrink (Metric) UOMcm²
Non-CorrosiveYes
