3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-2000, 250-750 kcmil, Expanded/Recovered I.D. 2.00/0.65 in, 48 in Length, 5/Case - 7000149319

Sold As: 5-Pack
SKU: 7000149319
MPN: 7000149319
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007089063
3M ID: 80610229652
5 Digit UPC: 8906
$474.30 ($94.86 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Features

  • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)
  • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
  • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
  • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals

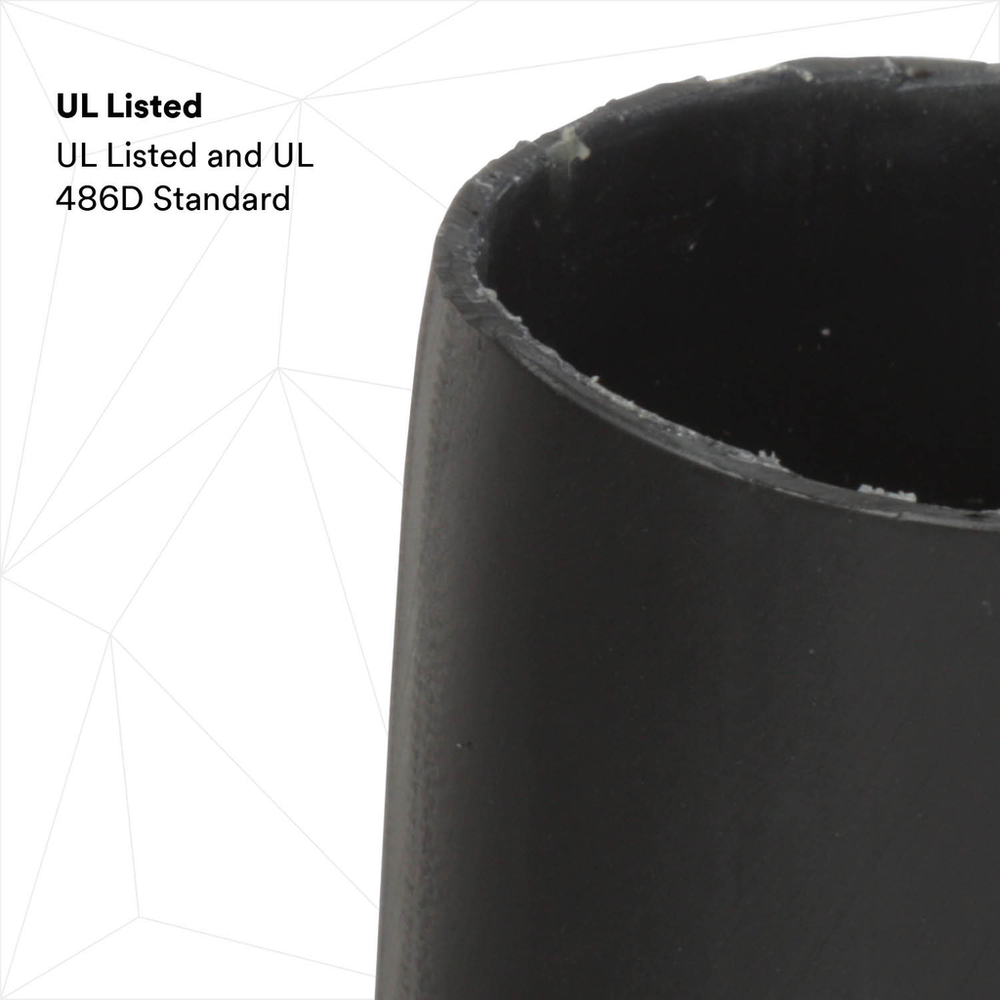

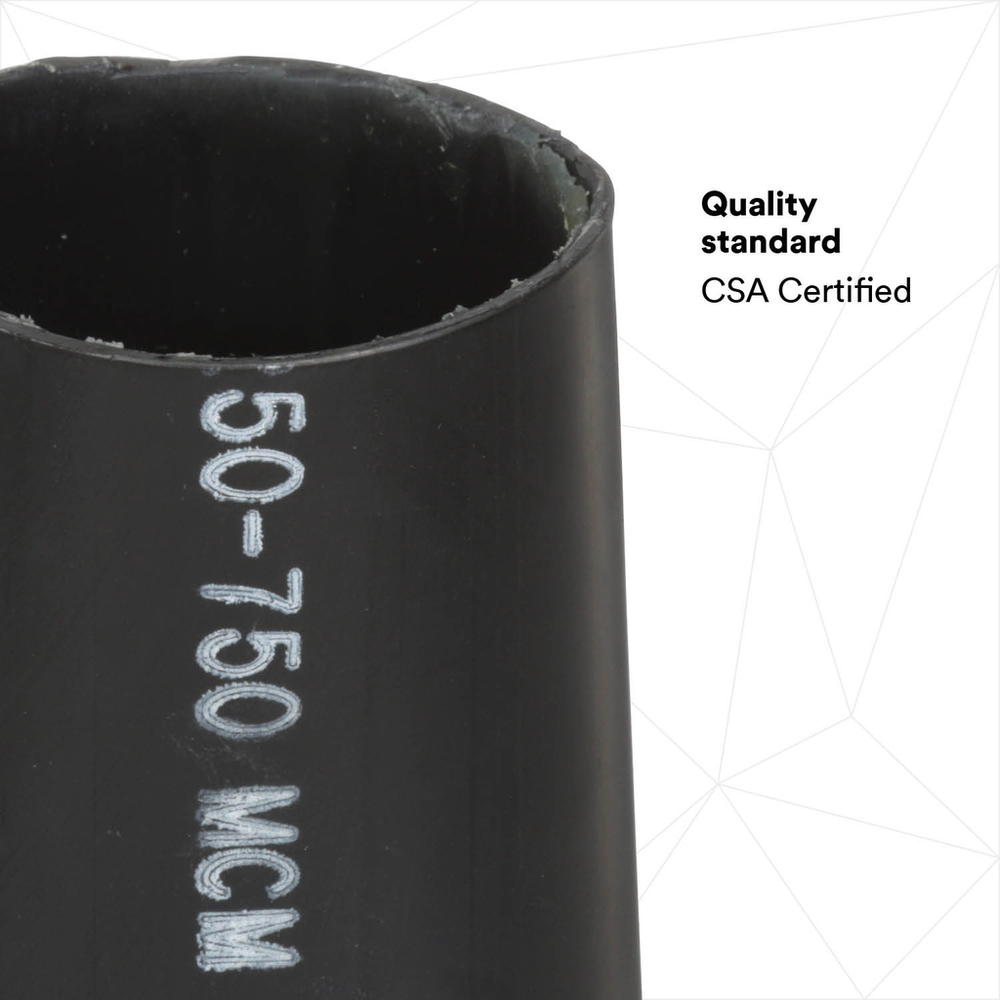

  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
  • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Overall Length (Imperial)48.0
UL File NumberE-102356
Maximum Operating Temperature (Fahrenheit) UOMDegree
MaterialPolyolefin
Inner Diameter After Shrink (Metric) UOMcm²
Inner Diameter After Shrink (Imperial) UOMin
Product FormSleeve-roll
Minimum Conductor Size (Imperial)250 kcmil
Inner Diameter After Shrink (Imperial)0.65
Maximum Conductor Size (Imperial)750 kcmil
Elongation UOM%
Flame RetardantNo
Inner Diameter Before Shrink (Imperial) UOMin
Non-CorrosiveYes
Minimum Expanded Tubing I. D.2.0
Maximum Operating Temperature (Fahrenheit)230.0
Dielectric Strength (V/mil)500 V/mil
Adhesive LinedYes
Inner Diameter Before Shrink (Metric)5.08
Units per Case5.0
Splice TypeHeat Shrink
Minimum Conductor Size (Metric)120 mm²
Inner Diameter After Shrink (Metric)1.651
Product TypeSleeve
Overall Length (Metric) UOMmm
Specifications MetUL 486D*
Maximum Operating Temperature (Celsius)100.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Splice ConfigurationHeat Shrink Heavy-Wall Cable Sleeve (ITCSN)
Overall Length (Imperial) UOMin
Maximum Conductor Size (Metric)400 mm²
Direct BuryYes
Overall Length (Metric)1219.0
Overall Width (Imperial)0.0
Product ColorBlack
Tubing TypeHeavy Wall
Inner Diameter Before Shrink (Imperial)2.0
Inner Diameter Before Shrink (Metric) UOMcm²
Mil SpecAMS-DTL-23053/15,Class 1
Maximum Operating Temperature (Celsius) UomDegree
Minimum Expanded Tubing I. D. UOMin
Shrink Ratio3:1
