3M Products & Supplies

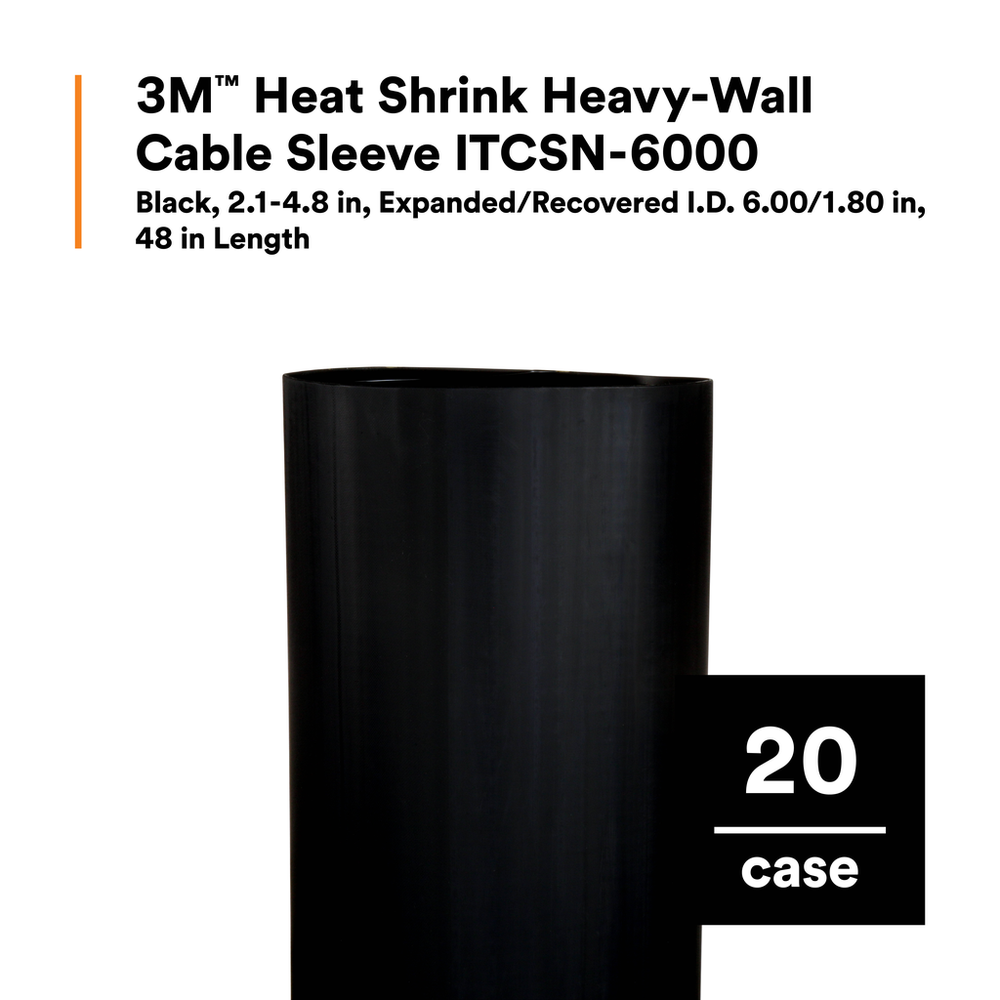

3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-6000, 2.1-4.8 in, Expanded/Recovered I.D. 6.00/1.80 in, 48 in Length, 20/case - 7100077109

Sold As: 180-Pack
SKU: 7100077109
MPN: 7100077109
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007089827
3M ID: 80008007363
5 Digit UPC: 8982
$39,830.65 ($221.28 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Features

  • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
  • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
  • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
  • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)
  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
  • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Tubing TypeHeavy Wall
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Units per Case20.0
Inner Diameter Before Shrink (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)230.0
Splice ConfigurationHeat Shrink Heavy-Wall Cable Sleeve (ITCSN)
Minimum Expanded Tubing I. D.6.0
Product TypeSplice
Inner Diameter Before Shrink (Imperial)4.8
Inner Diameter After Shrink (Metric) UOMmm
Elongation UOM%
Dielectric Strength (V/mil)500 V/mil
Overall Length (Metric)1219.0
Maximum Operating Temperature (Celsius)100.0
Inner Diameter Before Shrink (Imperial) UOMin
Overall Length (Imperial)48.0
Inner Diameter After Shrink (Imperial) UOMin
Maximum Operating Temperature (Celsius) UomDegree
Splice TypeHeat Shrink
Flame RetardantNo
Overall Length (Metric) UOMmm
Specifications MetUL 486D*
Overall Length (Imperial) UOMin
Inner Diameter Before Shrink (Metric)6.0
Adhesive LinedYes
Inner Diameter After Shrink (Imperial)2.1
Product ColorBlack
Maximum Operating Temperature (Fahrenheit) UOMDegree
Non-CorrosiveYes
Minimum Expanded Tubing I. D. UOMin
Inner Diameter After Shrink (Metric)1.8
Shrink Ratio3:1
MaterialPolyolefin
Direct BuryNo
