3M Products & Supplies

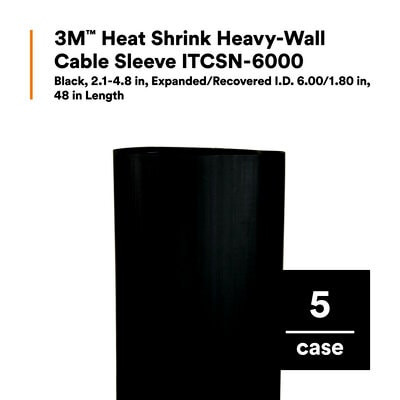

3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-6000, 2.1-4.8 in, Expanded/Recovered I.D. 6.00/1.80 in, 48 in Length, 5/case - 7000132665

Sold As: 5-Pack
SKU: 7000132665
MPN: 7000132665
For an accurate lead time please contact us
UPC: 00051135379806
3M ID: 80610858724
5 Digit UPC: 37980
$1,383.01 ($276.60 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Features

  • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)
  • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
  • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
  • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
  • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
MaterialPolyolefin
Maximum Operating Temperature (Fahrenheit)230.0
Non-CorrosiveYes
Inner Diameter Before Shrink (Imperial)6.0
Inner Diameter Before Shrink (Metric) UOMmm
Overall Length (Metric) UOMmm
Product TypeSleeve
Tubing TypeHeavy Wall
Specifications MetUL 486D*
Product FormSleeve-roll
Maximum Operating Temperature (Fahrenheit) UOMDegree
Adhesive LinedNo
Direct BuryNo
Splice TypeHeat Shrink
Dielectric Strength (V/mil)500 V/mil
Overall Length (Imperial) UOMin
UL File NumberE-102356
Overall Length (Metric)1219.0
Elongation UOM%
Splice ConfigurationHeat Shrink Heavy-Wall Cable Sleeve (ITCSN)
Units per Case5.0
Inner Diameter After Shrink (Imperial)1.8
Inner Diameter Before Shrink (Metric)152.4
Minimum Expanded Tubing I. D.6.0
Flame RetardantNo
Overall Length (Imperial)48.0
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter Before Shrink (Imperial) UOMin
Shrink Ratio3:1
Mil SpecAMS-DTL-23053/15,Class 1
Maximum Operating Temperature (Celsius)100.0
Inner Diameter After Shrink (Imperial) UOMin
Minimum Expanded Tubing I. D. UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Product ColorBlack
Inner Diameter After Shrink (Metric)45.7
Inner Diameter After Shrink (Metric) UOMmm
