3M Products & Supplies

3M™ Heat Shrink Thin-Wall Tubing FP-301-2-Yellow-100`: 100 ft spool length, 200 linear ft/box, 76200 Meter/Case - 7000057978

Sold As: 200-Pack
SKU: 7000057978
MPN: 7000057978
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007085201
3M ID: 80610219885
5 Digit UPC: 8520
$753.52 ($3.77 / Count)
Hurry up! Current stock:

Product Description

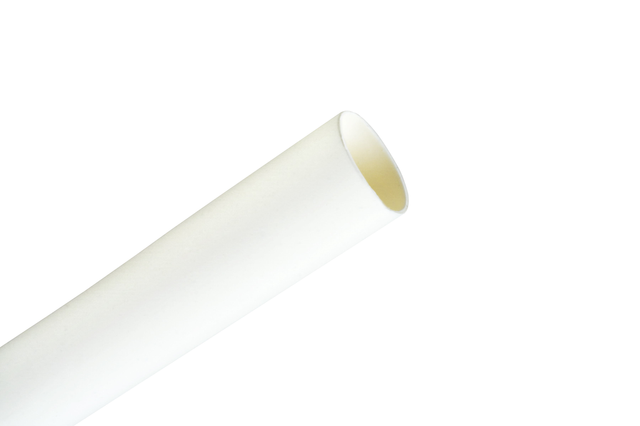

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
Spec Sheet



Downloads

Specifications

Shelf Life3650
Country of OriginUnited States
Inner Diameter Before Shrink (Metric)50.8
Non-CorrosiveYes
Overall Length (Imperial)100.0
Adhesive MaterialNone
Flame RetardantYes
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Minimum Expanded Tubing I. D. UOMin
Product ColorYellow
Maximum Operating Temperature (Celsius)135.0
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Metric) UOMmm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter After Shrink (Metric)25.4
Inner Diameter Before Shrink (Imperial) UOMin
Mil SpecAMS-DTL-23053/5, Class 1
Inner Diameter After Shrink (Imperial)1.0
Tubing TypeSingle (Thin) Wall
Elongation UOM%
Shrink Ratio2:1
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter After Shrink (Metric) UOMmm
Maximum Operating Temperature (Celsius) UomDegree
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
UL File NumberE-39100
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Minimum Expanded Tubing I. D.2.0
Inner Diameter Before Shrink (Imperial)2.0
Maximum Operating Temperature (Fahrenheit)275.0
Overall Length (Imperial) UOMft
