3M Products & Supplies

3M™ Heat Shrinkable Medium Wall Polyolefin Tubing MDT-1100-48A, 20/Case - 7000132418

Sold As: 20-Pack
SKU: 7000132418
MPN: 7000132418
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007406747
3M ID: 80610294847
5 Digit UPC: 40674
$460.77 ($23.04 / Count)
Hurry up! Current stock:

Product Description

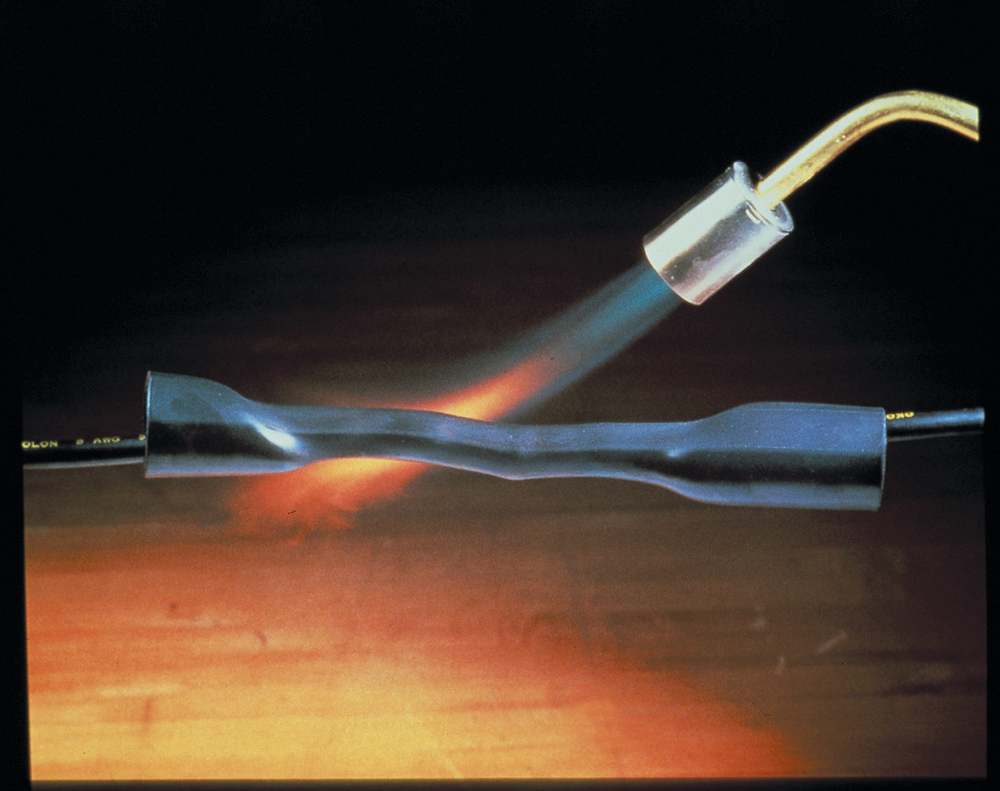

3M™ Heat Shrink Cable Sleeve MDT is a flexible, medium wall tubing that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio that offers primary electrical insulation for 1 kV rated applications. The flame retardant polyolefin construction features a thermoplastic sealant to provide moisture seal protection.

Features

  • Flame-retardant
  • Made of black cross-linked polyolefin
  • Suitable for large transitions, splices and battery cables
  • Offers reliable performance for electrical splices, connections and terminations
  • Superior resistance to abrasion, corrosion and chemicals
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Minimum Expanded Tubing I. D. UOMin
Overall Length (Imperial)48.0
Dielectric Strength UOMmV
Chemical ResistantYes
Inner Diameter After Shrink (Imperial) UOMin
Overall Length (Metric) UOMm
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
Product ColorBlack
Inner Diameter Before Shrink (Metric)27.9
Dielectric Strength500.0
Minimum Expanded Tubing I. D.1.1
Maximum Operating Temperature (Celsius) UomDegree
Operating Temperature (Fahrenheit)-67 °F to 230 °F
ApplicationElectrical Insulation
Inner Diameter After Shrink (Imperial)0.37
Inner Diameter After Shrink (Metric)9.4
Elongation UOMdB
Heat Shrink TypeHeavy-Duty Heat Shrink Tubing
Operating Temperature (Celsius)-55 to 100 Degrees Celsius
Overall Length (Metric)1.22
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Units per Case20.0
Voltage Rating1 kV
Inner Diameter Before Shrink (Imperial) UOMin
Shrink Ratio3:1
Adhesive LinedYes
Maximum Operating Temperature (Fahrenheit) UOMDegree
Tubing TypeMedium Wall
Maximum Operating Temperature (Celsius)110.0
Inner Diameter Before Shrink (Imperial)1.1
Inner Diameter After Shrink (Metric) UOMmm
Dielectric Strength (V/mil)200
Flame RetardantYes
Operating Temperature Range (Celsius)-55 °C to +105 °C
Overall Length (Imperial) UOMin
Inner Diameter Before Shrink (Metric) UOMmm
Product FormSleeve-roll
Minimum Shrink Temperature (Celsius)121.0
Maximum Operating Temperature (Fahrenheit)230.0
Product TypeHeat Shrink MDT
MaterialPolyolefin
